An ice machine that runs but produces less ice is frustrating: water flows and ice drops, yet the bin never catches up. During hot weather, that shortfall can mean missed deliveries or expensive emergency purchases.
Do not begin by changing controls or adding refrigerant. Compare actual output with rated capacity at the stated air and inlet-water conditions, then check the causes in order.
|
What you observe |
Likely area to inspect first |
Safe first check |
Why it matters |
|
Production drops mainly in the afternoon |
Heat rejection and ventilation |
Record room and condenser-inlet temperature |
Confirms a heat-related capacity loss |
|
Freeze cycles become steadily longer |
Dirty condenser, scale, or warm feed water |
Compare current cycle time with the normal log |
Shows where daily output is being lost |
|
Ice is thin, cloudy, or irregular |
Water flow, mineral buildup, or settings |
Check filter pressure, spray pattern, and evaporator surface |
Separates water issues from cooling faults |
|
Machine stops and restarts |
Power quality, protection controls, or high pressure |
Record alarms; do not repeatedly reset protection |
Prevents damage and preserves diagnostic evidence |
|
Output is normal but the bin stays empty |
Melt loss, drainage, handling, or demand |
Check bin door, drain, insulation, and daily withdrawals |
Avoids blaming a healthy ice maker |
One symptom can have several causes. Measurements are more useful than guesses, especially during remote diagnosis.
An air-cooled machine must release heat from the water and refrigeration cycle. If exhaust is trapped, the condenser keeps breathing its own heat, cycles lengthen, and output falls.
Measure air where it enters the condenser. Look for blocked louvers, stopped fans, short clearances, roof heat, and opposing machines. The Focusun guide to the best ice machine for hot and humid climates explains why cooling method and installation site belong together.
Dust and grease can blanket an air-cooled coil. Scale or a blocked cooling-tower strainer can restrict a water-cooled condenser. Both reduce heat transfer.
Inspect filters and accessible coils with the machine safely isolated. For water-cooled systems, record entering and leaving temperatures, flow, and pressure before blaming the refrigeration circuit. Focusun’s air-cooled vs water-cooled ice machine guide covers the trade-off.
Warm feed water carries more heat into every cycle. Capacity can fall when a roof tank or exposed pipe heats in the sun.
Log inlet temperature morning and afternoon. Insulate exposed lines and avoid hot machine rooms, while staying within the manufacturer’s limits.
A clogged filter, undersized pipe, weak pump, or simultaneous plant demand can starve the machine, producing incomplete ice or interrupted cycles.
Check dynamic pressure while filling, not just static pressure. Note whether another line triggers the problem, and replace filters by pressure drop and schedule.
Scale insulates the evaporator, changes water distribution, lengthens harvest, and can leave ice stuck. Because buildup is gradual, longer cycles may go unnoticed.
Compare the water circuit with a clean baseline and follow the approved descaling and sanitation procedure. The article on how to reduce scale inside an ice machine connects water testing, treatment, and cleaning frequency.
A leaking valve, misplaced standpipe, worn seal, or drain problem can discard chilled water before it freezes.
Watch a complete cycle and mark the sump level. Look for flow after filling, without bypassing switches or reaching into running equipment.

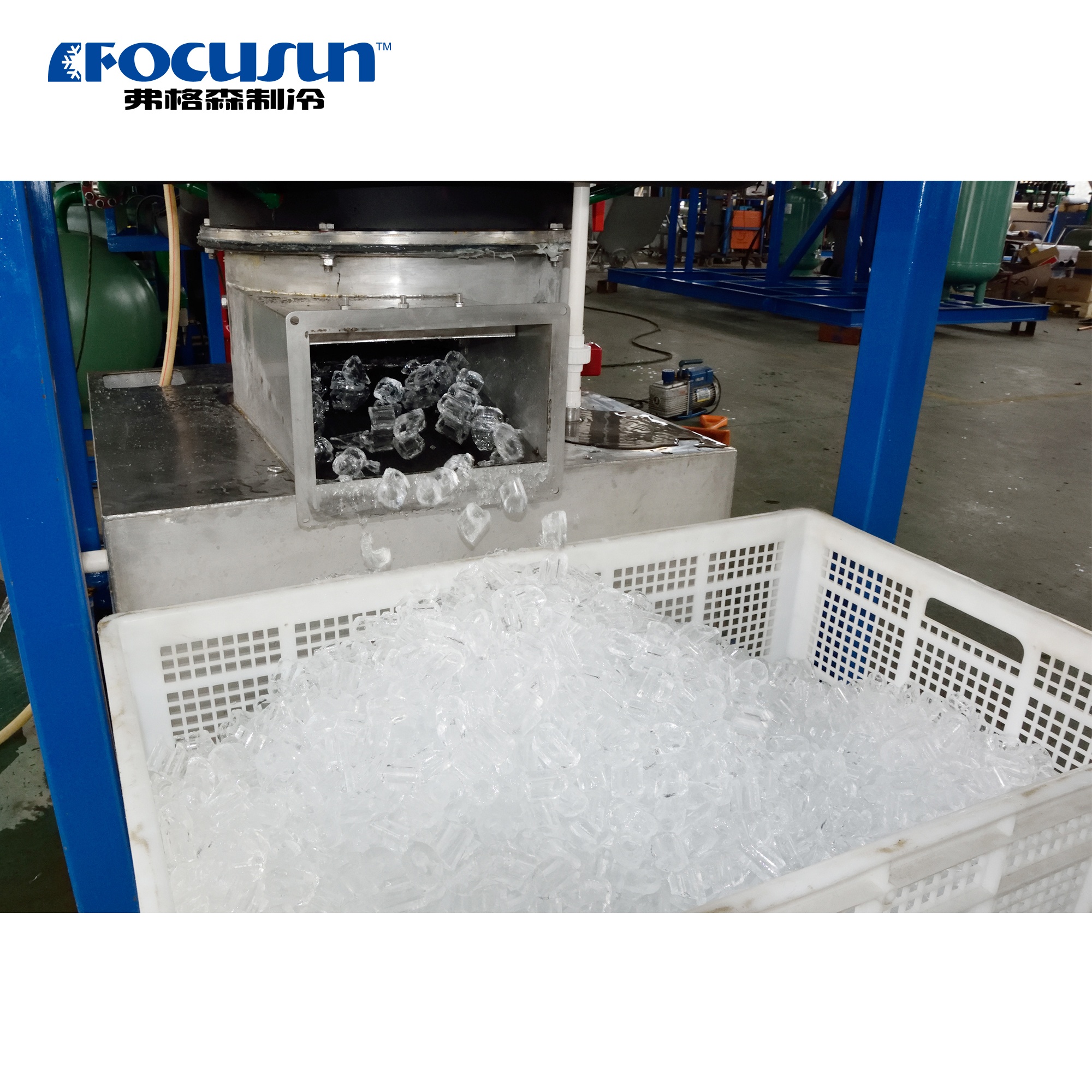

Slow release, thick ice, cutter jams, misplaced sensors, or repeated harvest attempts reduce completed cycles per day.

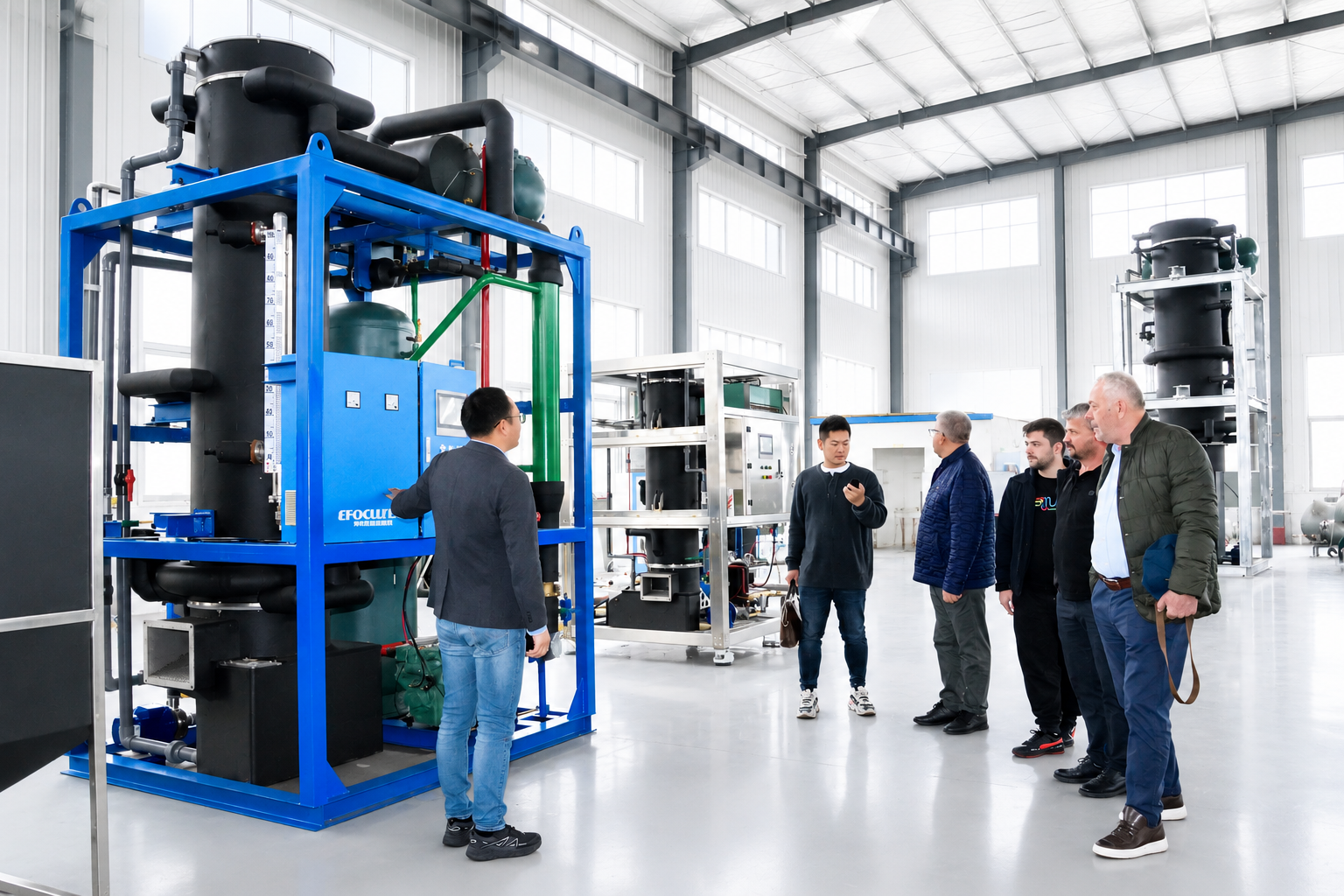

Record freeze and harvest times separately, and compare ice shape with specification. Tube ice should release cleanly and pass through the cutter. Buyers can review Focusun’s tube ice machine range and 10 tons/day tube ice machine.
Low voltage, phase imbalance, generator variation, or outages can trip protection or make motors run poorly.
Have an electrician record all phases under load and never bypass a trip. The industrial ice machine power-consumption guide explains connected power versus energy use.
A drifting sensor, sticking valve, weak pump, fan fault, refrigerant leak, or inefficient compressor requires instrumented diagnosis.
Give the technician cycle logs, alarms, pressures, temperatures, current draw, and maintenance records. Never add refrigerant merely because output is low; find and repair any leak.
Sometimes the machine is healthy: demand has grown, rated output was misunderstood, or the bin melts stock too quickly.
Calculate hourly withdrawals, peak demand, downtime, hot-weather derating, melt loss, and growth. Use the industrial ice machine price and capacity guide to size production and storage together.
Record the model, alarm, room and water temperatures, fill pressure, freeze and harvest times, and measured ice weight. Photograph the condenser, clearances, control screen, and ice.
Stop and call qualified service for repeated trips, hot smells, fluid leaks, damaged wiring, or severe noise. For a capacity review, send measurements through the Focusun project enquiry page.
Hot weather reduces output when the condenser cannot reject heat efficiently and the incoming water is warmer than usual. An air-cooled unit may also recirculate its own exhaust in a poorly ventilated room. Measure temperature at the condenser intake and at the water connection during the hottest period, then compare those readings with the machine’s rating conditions and operating limits. Clean the filter and condenser if permitted by the manual, restore ventilation, and confirm fan operation. If high pressure or protection alarms continue, stop resetting the machine and arrange qualified service.
Weigh the usable ice produced during a measured period and project it over 24 hours only if the machine runs continuously under the same conditions. Exclude cleaning, bin-full shutdown, power outages, and planned stops, but record them separately because they affect available ice. Compare the result with the manufacturer’s capacity at the same ambient-air and inlet-water temperatures—not simply the largest number in the brochure. Also measure withdrawals and melt loss. A bin that never fills may indicate high demand or poor storage rather than low production at the ice maker.
Yes. A dirty air-cooled condenser restricts airflow and insulates the coil, raising condensing pressure and extending the freezing cycle. In a water-cooled system, scale, a blocked strainer, weak pump flow, or cooling-tower problems can create a similar result. Check filters, coil condition, fans, water flow, and temperature difference using the maintenance procedure for your model. Do not use an aggressive pressure washer or sharp tool that could damage fins. If the machine trips on high pressure after accessible components are clean, a refrigeration technician should diagnose it with proper instruments.
Yes. Every kilogram of warmer water brings additional heat that the refrigeration system must remove before freezing begins. Output can therefore fall during summer or when water is stored in a sun-heated roof tank. Measure temperature at the machine connection at several times of day. Insulate exposed supply lines, avoid hot mechanical spaces, and check for cross-connections or faulty check valves that allow hot water into the cold line. Keep the supply within the manufacturer’s stated range; feeding water outside that range can create new operating and hygiene problems.
There is no universal interval. Cleaning frequency depends on hardness, alkalinity, silica, machine design, water use, filtration, and operating hours. Warning signs include longer freeze or harvest cycles, uneven water flow, rough mineral deposits, incomplete ice, and ice that releases poorly. Follow the manufacturer’s approved chemical, concentration, contact time, rinsing, and sanitizing instructions. Keep a cycle-time log after each clean condition; an upward trend helps schedule maintenance before output collapses. If scale returns quickly, test the water and select treatment based on the actual mineral problem rather than adding filters blindly.
First confirm that water reaches the machine, the bin control is not falsely indicating “full,” and the unit is not waiting through a normal delay. Check the display for alarms and observe whether the pump, fan, and compressor start, without bypassing guards or safety controls. A closed valve, blocked filter, misplaced drain component, faulty sensor, water-level problem, or refrigeration fault can all allow the machine to appear active without completing ice. If basic supply checks are normal, record the sequence and alarm code, switch the equipment off if instructed, and call qualified service.
Not without diagnosis. Low charge is only one possible cause, and a properly sealed refrigeration circuit does not consume refrigerant during normal operation. Hot air, a dirty condenser, warm water, scale, a leaking water valve, faulty sensors, or poor power can produce similar symptoms. Adding refrigerant by guess can overcharge the system, hide a leak, increase pressure, and damage the compressor. A qualified technician should confirm operating pressures, superheat or subcooling where applicable, temperatures, current draw, and leak condition, then repair the leak and charge the specified refrigerant by the approved procedure.
Irregular ice often points to poor water distribution, low dynamic pressure, a clogged filter or nozzle, mineral deposits, an incorrect water level, or settings outside specification. Warm water and a shortened freeze cycle may also contribute. Check supply pressure while filling, inspect the approved accessible water path, and compare the finished ice dimensions or weight with the manual. Do not adjust thickness controls merely to hide another fault. If the pattern is uneven across the evaporator, provide photos and cycle times to the service technician; that distribution can help separate water problems from refrigeration problems.
Repair is usually sensible when the machine still matches demand, components remain supported, and the fault is limited to maintenance or a replaceable part. Replacement deserves consideration when output is permanently below peak demand, the unit is poorly suited to local heat or water conditions, refrigerant and parts are difficult to support, or repeated downtime and energy cost exceed the value of repair. Compare total annual cost, not only the quotation. Include lost sales, purchased backup ice, electricity, water, labor, spare parts, storage capacity, and the production margin needed for hotter conditions.
Send the exact model and serial number, rated capacity, cooling method, installation date, site location, ambient and inlet-water temperatures, dynamic water pressure, voltage and phase readings, alarm history, and measured ice output. Add freeze and harvest times, ice dimensions or weight, filter and descaling dates, operating schedule, peak daily demand, and clear photos of the machine room, condenser, control screen, and finished ice. Mention recent changes such as hotter weather, new plumbing, generator use, or higher demand. Good evidence lets the supplier distinguish maintenance, installation, service, and sizing problems much faster.
