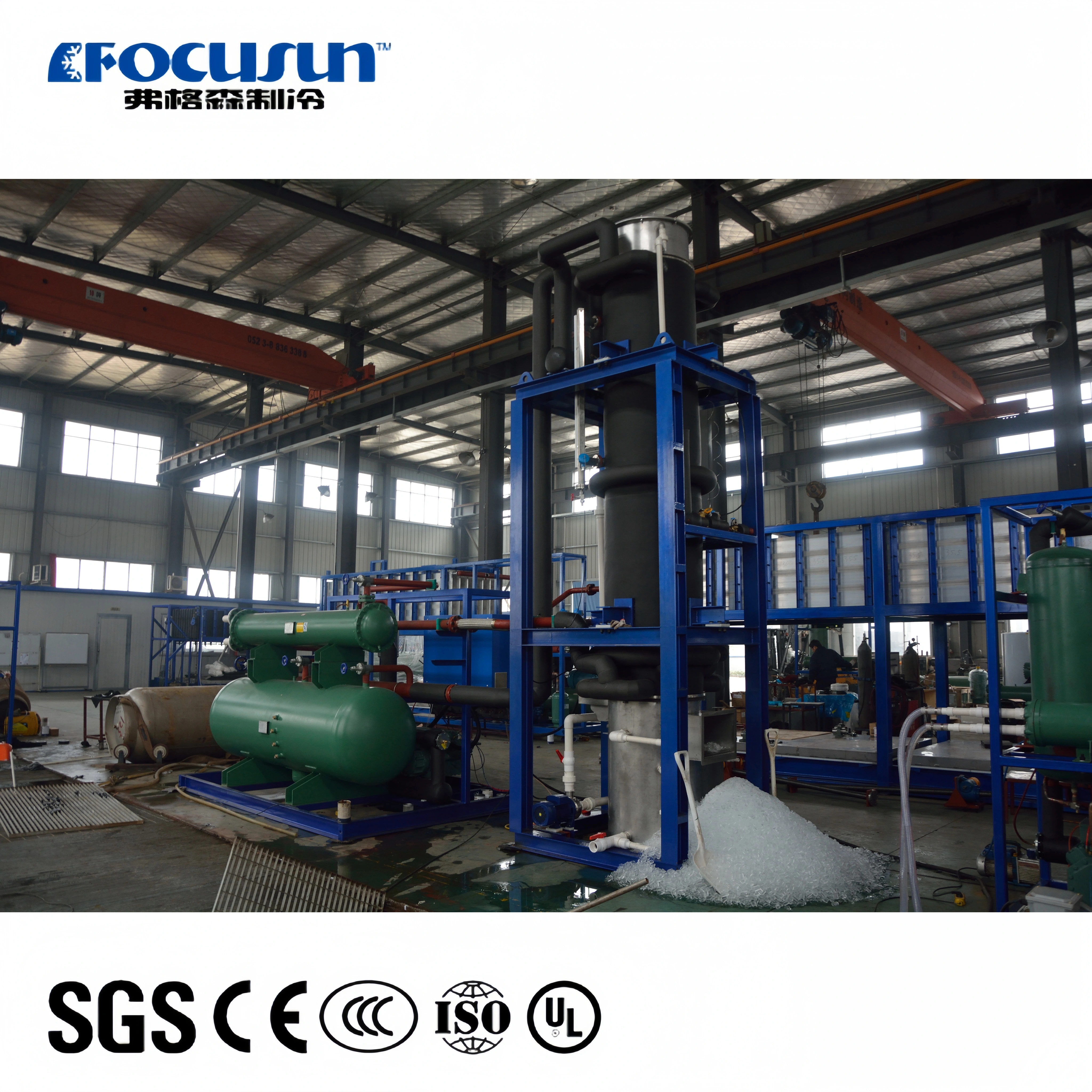

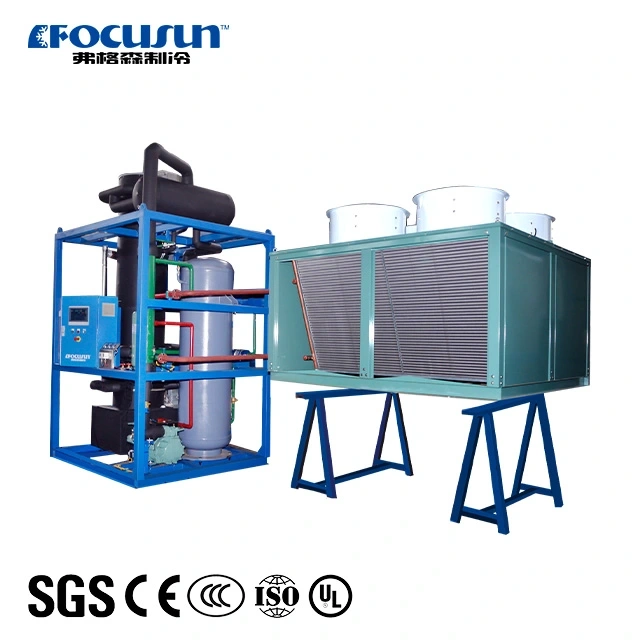

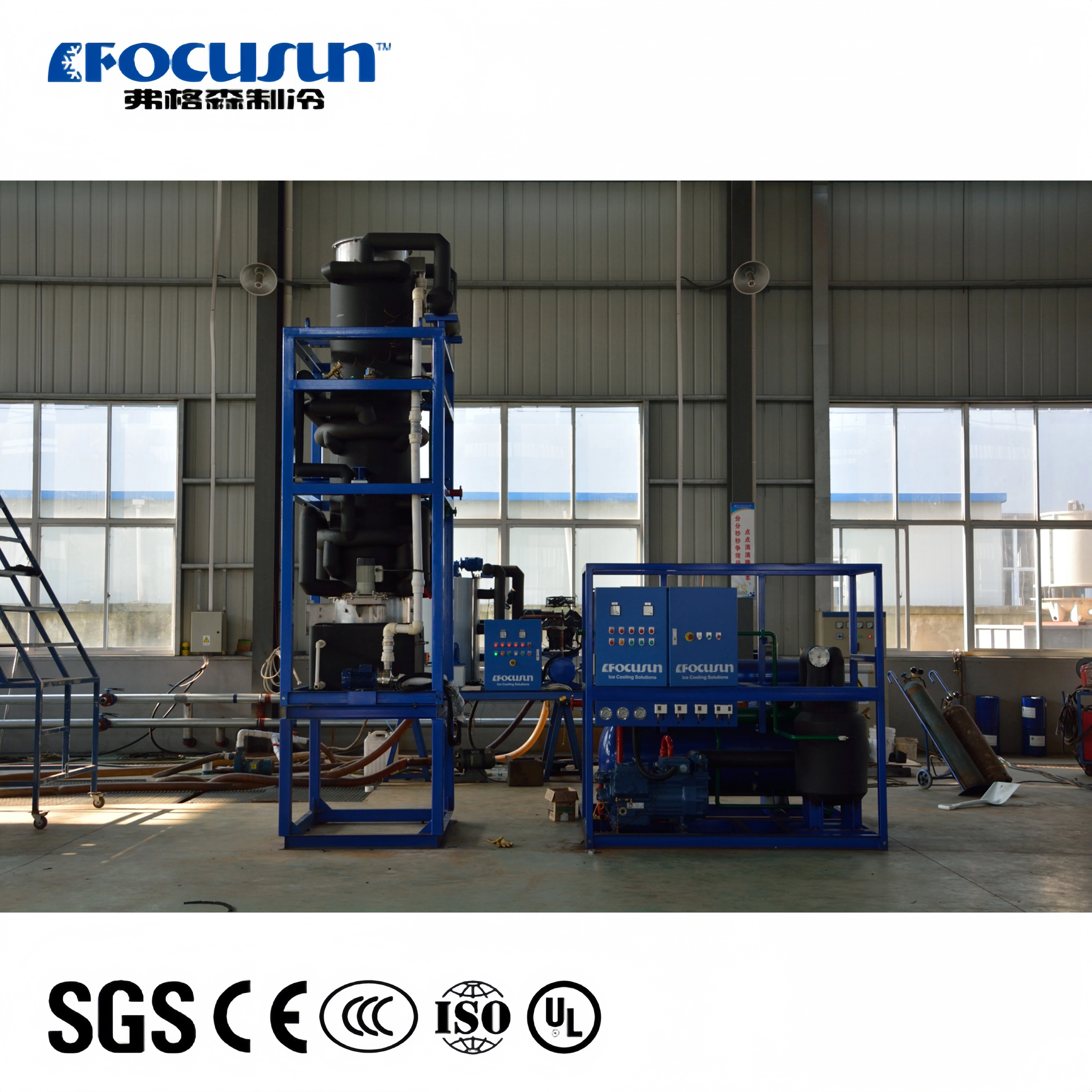

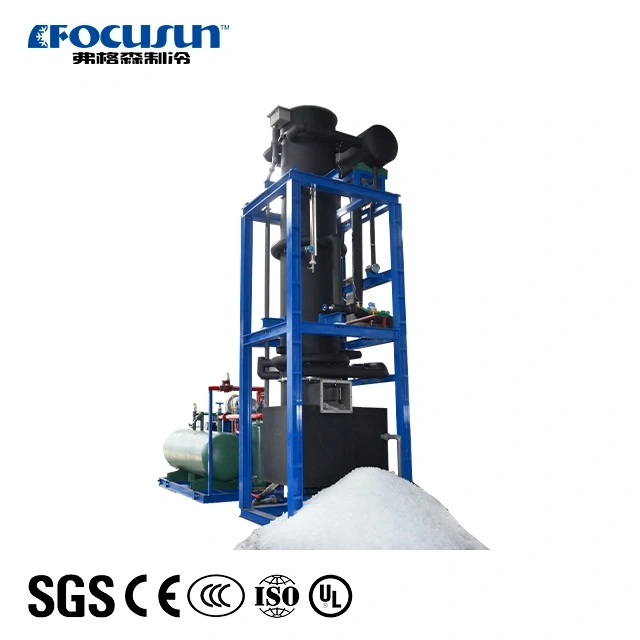

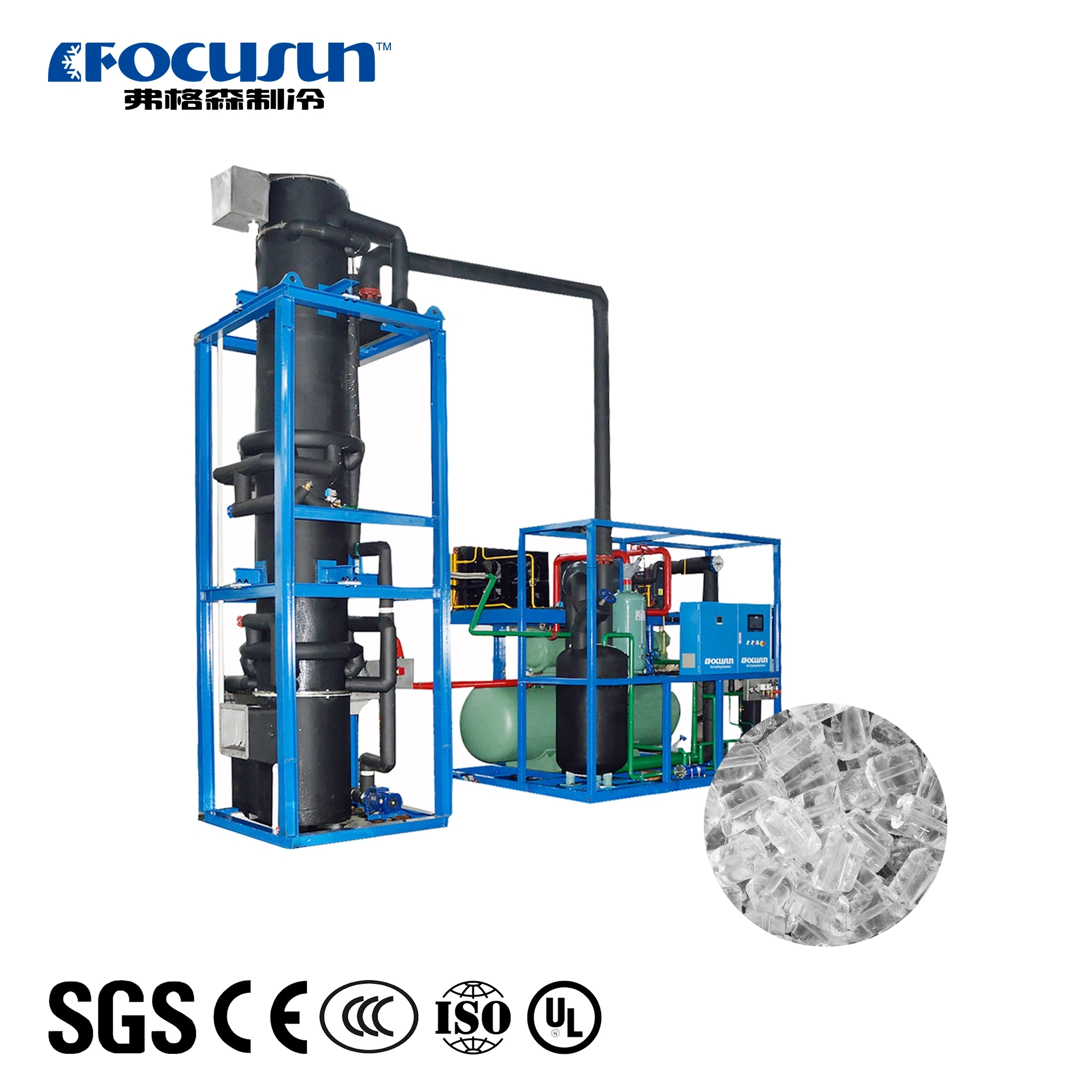

The tube ice machine is a reliable, high-capacity ice maker designed for commercial and industrial applications. It produces ice in the form of small, cylindrical tubes, which are perfect for quick and effective cooling.
The tube ice machine is a versatile solution capable of meeting various ice production needs. Its hollow, cylindrical ice tubes are perfect for a wide range of applications, including food preservation, beverage cooling, and industrial cooling. The customizable production capacity makes it an ideal choice for businesses with fluctuating ice demands.
Whether for restaurants, supermarkets, or food processing plants, the machine produces clean, hygienic ice that’s safe for consumption. Its robust design ensures consistent performance, even in high-demand environments, and the low melting rate of the ice keeps products cool for longer periods.
With simple controls and automated functions, the tube ice machine is easy to install and operate. Its compact size and low maintenance needs ensure that it’s a cost-effective solution for businesses seeking high output with minimal hassle.
| Subject | Unit | Technical parameter | |
|---|---|---|---|
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | R22/R404A/R507A/R448A/R449A/R717 | ||
| Capacity | Kg/day | 10000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 34.95 |
| Installment power | Kw | 45 | |
| Operating power of cutter | Kw | 0.75 | |
| Operating power of cold water pump | Kw | 1.1 | |
| Fan motor of cooling tower | Kw | 1.1 | |
| Operating power of cold water pump | Kw | 2.2 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | 74.3 | ||
| Operating power | 29.8 | ||
| Compressor COP/EER | 2.5 | ||
| Horse power | 50 | ||
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:1800×1500×1600 Evaporator:1180×1180×3500 |
| Size of cooling tower | (O.D. ×H)(mm) | φ2000×2410 | |
| Size of liquid pipe of cooling tower | 3/4" | ||
| Size of cooling water pipe | 2-1/2" | ||
| Size of waterinlet pipe of ice maker | 1" | ||
| Size of ice outlet | mm | 300×250 | |
| Weight of unit | Operating weight of tube ice maker | Kg | Unit:1560 Evaporator:2296 |
| Operating weight of cooling tower | Kg | 670 | |
| Water supply pressure requirement | Bar | 1.5 | |
