By using brine to circulate cold temperatures around water, the brine system block ice machine produces high-quality, consistent block ice. It’s a reliable solution for industries that need large quantities of ice with minimal downtime.
The brine system block ice machine offers a highly efficient freezing method using saltwater brine to chill water in ice molds. The brine solution quickly absorbs heat, creating faster ice production cycles with minimal energy consumption. This efficient process ensures that large quantities of high-quality ice are produced without excessive energy costs.
With a user-friendly interface and automated features, this ice machine requires minimal operator intervention. It’s perfect for businesses needing reliable and consistent ice, such as in large-scale food storage or transportation. The low-energy, high-output nature of the brine system makes it an excellent choice for long-term, cost-effective ice production.

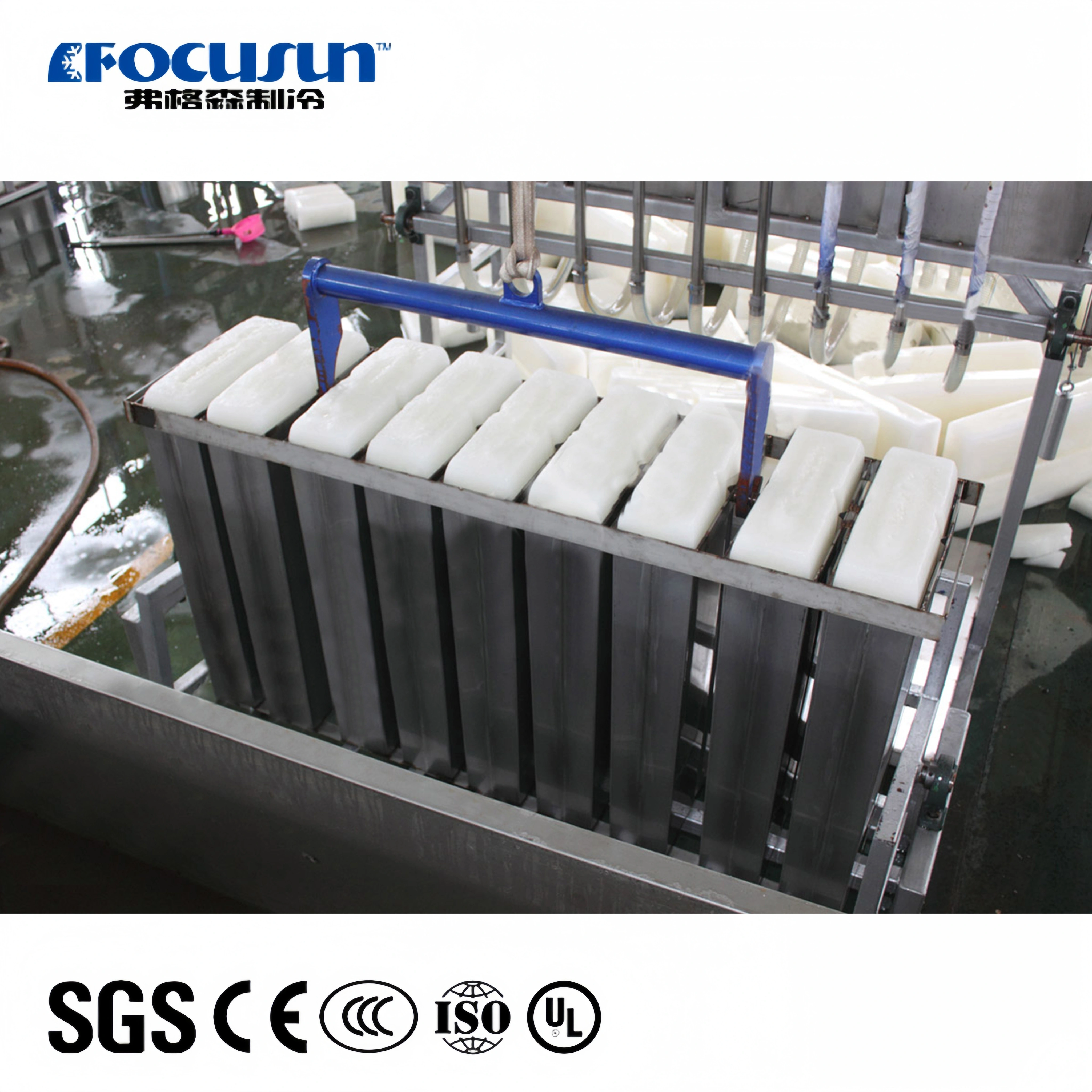

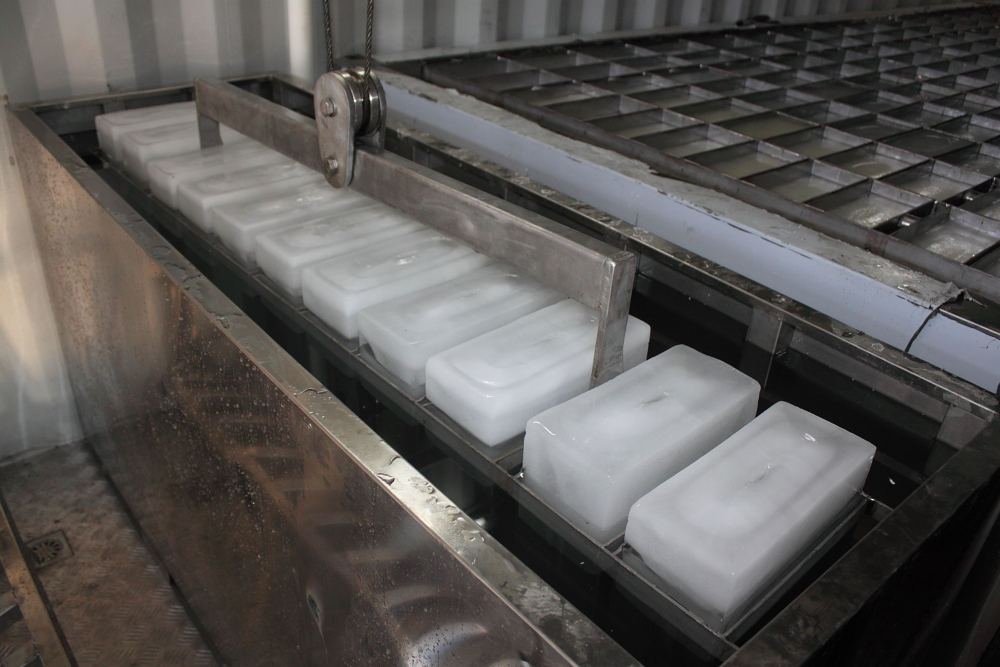

In addition, the ice molds used in brine-type block ice machines are quite unique. To facilitate the quick release of ice blocks after the freezing process, the molds are typically designed in a tapered shape—wider at the top and narrower at the bottom.
There are two main materials available for the ice molds:
Equipping your ice factory with a cold storage room is essential. Once the ice blocks are produced, they are typically transported to the cold room for proper storage.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 5000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 21.14 |
| Installment power | Kw | 25 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 43.3 | |
| Operating power | Kw | 17.99 | |
| Compressor COP/EER | Kw/kw | 2.41 | |
| Horse power | Hp | 25 | |
| Condenser | Power | Kw | 2.05 |
| Cooling way | Water cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice doffing time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of cooling tower | (L×W×H)(mm) | φ1380×2170mm | |
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight of cooling tower | Kg | 460 | |
| Water supply pressure requirement | Bar | 1 | |
