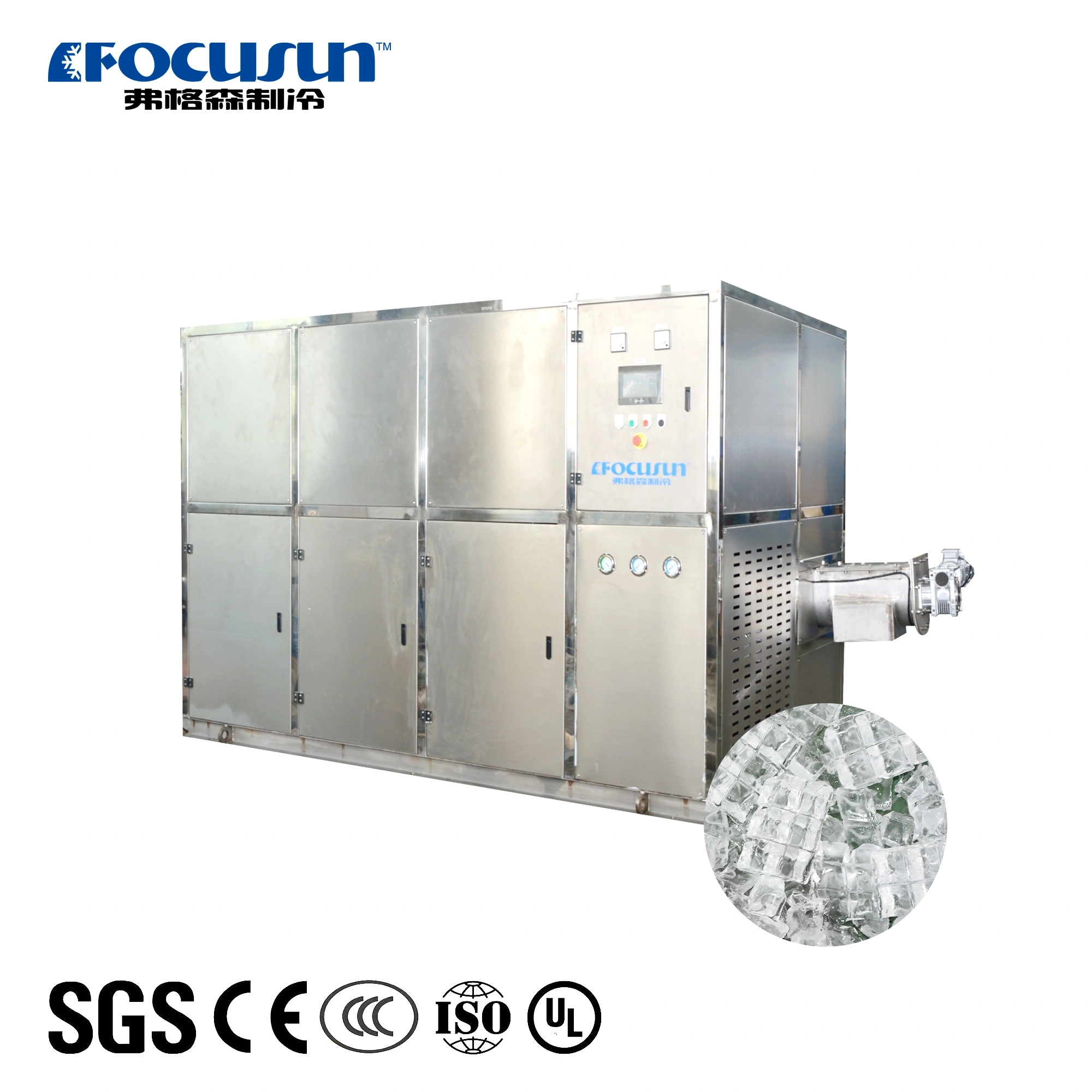

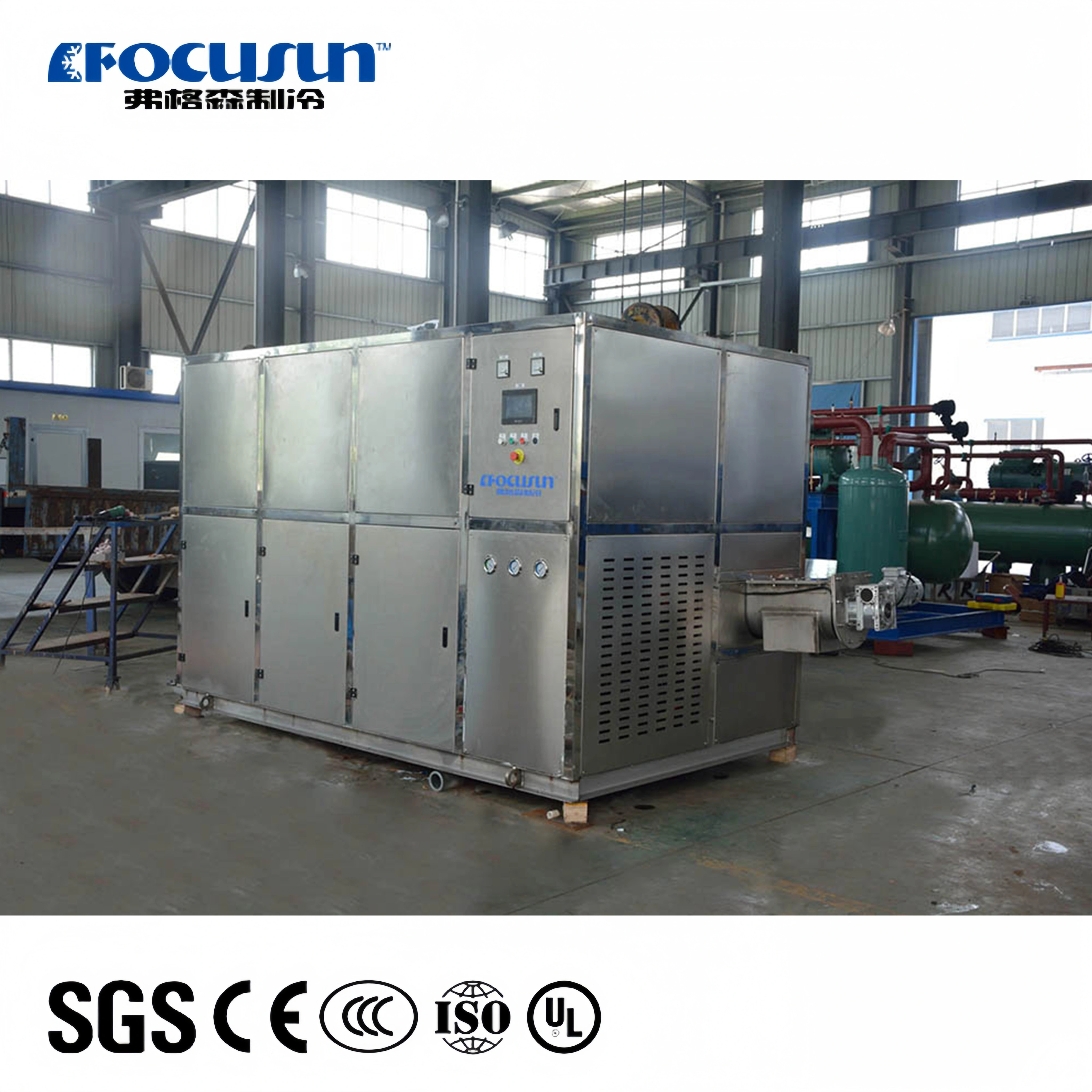

Ideal for small spaces, cube ice machines deliver clean, clear ice cubes with minimal footprint. These compact machines are perfect for cafes, hotels, and small restaurants, offering reliable performance and consistent ice production without taking up too much room.
Cube ice machines are known for their efficiency and reliability in producing high-quality ice for a variety of commercial applications. These machines utilize advanced refrigeration systems to freeze water into uniform, crystal-clear cubes that are ideal for both food service and industrial use. Cube ice is preferred for its consistent size, slow melting rate, and versatility in beverages, cooling, and food preservation.
Designed to minimize operational costs, these ice machines are energy-efficient, feature automatic cleaning systems, and require little operator intervention. With modular designs and customizable capacities, cube ice machines can fit into any space, from small businesses to large-scale food production environments, offering reliable performance around the clock.
Key Features:
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 5000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 16.03 |
| Installment power | Kw | 20 | |
| Operating power of cutter | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 36.4 | |
| Operating power | Kw | 13.51 | |
| Compressor COP/EER | Kw/kw | 2.7 | |
| Horse power | Hp | 25 | |
| Condenser | Fan power | Kw | 1.6 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (LxWxH)(mm) | 1700x1200x2200 |
| Size of condenser | (LxWxH)(mm) | 1400x1250x1350 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of cube ice maker | Kg | 1460 |
| Operating weight of condenser | Kg | 150 | |
| Water supply pressure requirement | Bar | 1 | |
