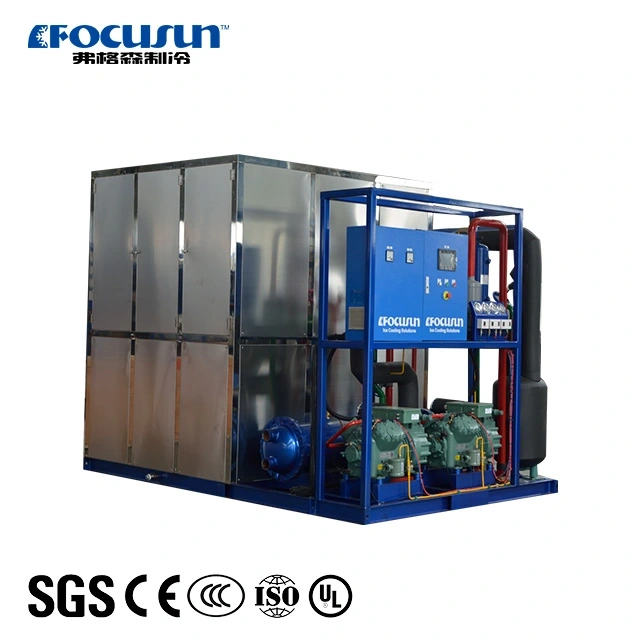

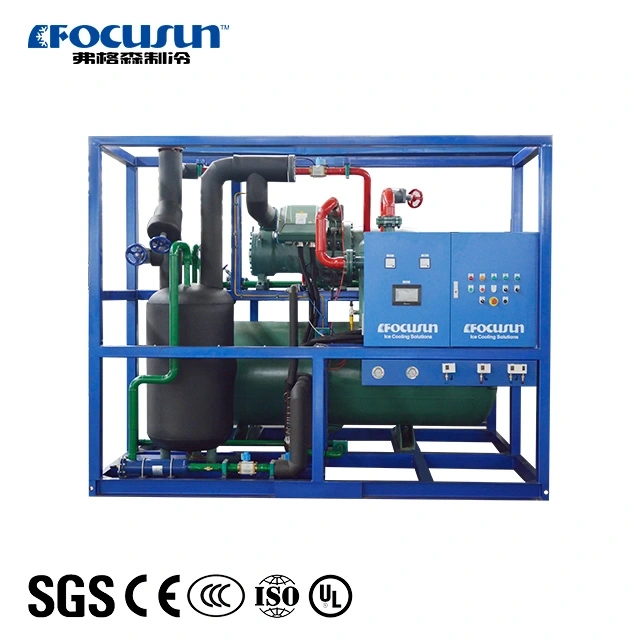

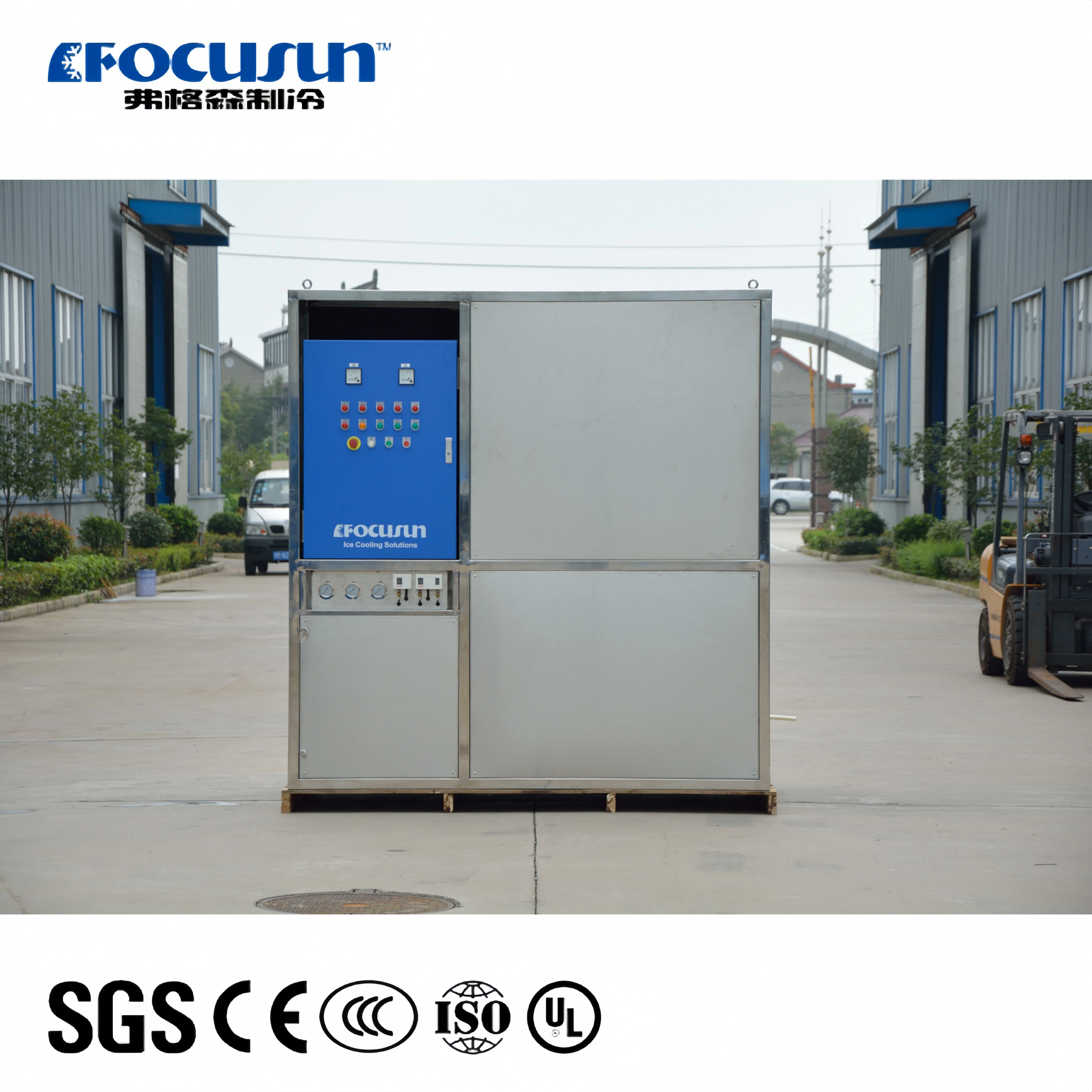

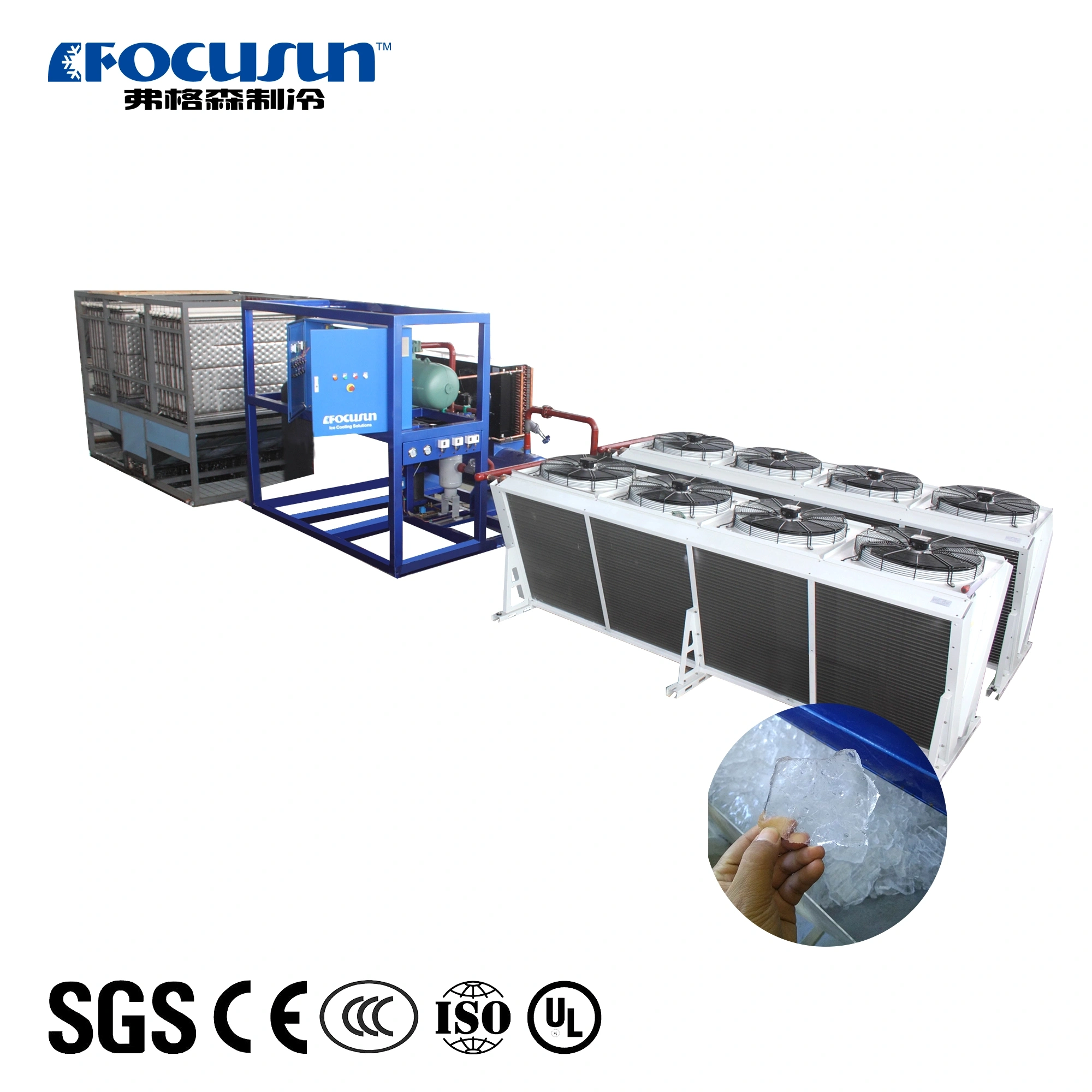

Name: 32 Tons/Day Plate Ice Machine
Brand: FOCUSUN REFRIGERATION
SKU: FIP-320
Availability: InStock
Rating: 5 (1 reviews)

32 Tons/Day Plate Ice Machine

No.FIP-320

Focusun's plate ice machine produces flat, hard, and dry ice sheets with excellent cooling efficiency and long-lasting performance. Ideal for aquatic product processing, food preservation, and concrete cooling, plate ice melts slowly and covers surfaces evenly.

Description

The plate ice machine produces flat, thin ice sheets with a thickness typically ranging from 5mm to 20mm. This type of ice is known for its large surface area and excellent cooling capacity, making it ideal for industrial applications where rapid cooling is required.

Plate ice is widely used in concrete cooling for construction projects, especially in hot climates, as well as in fishery, food processing, chemical industries, and large-scale refrigeration systems. Its uniform shape and ease of storage make it a popular choice in many sectors.

Plate ice machines can be customized for different capacities and are suitable for both fixed installations and modular systems. The machines are designed for continuous operation, with simple control systems that make them easy to manage, even in demanding industrial environments.

Key Advantages：

Efficient Heat Exchange

Stainless steel plate evaporators ensure maximum heat transfer, resulting in fast and energy-saving ice production.

Thick & Dense Ice

Ice thickness ranges from 10mm to 20mm with temperatures as low as -6°C to -10°C — ideal for extended storage and transportation.

Automatic Ice Harvesting

Hot gas defrosting system enables smooth, automatic ice release with minimal manual intervention.

Durable & Reliable Components

Equipped with trusted international parts such as Bitzer compressors, Danfoss valves, and Siemens PLC controls.

Wide Industrial Applications

Perfect for seafood processing, meat and poultry chilling, food factories, concrete batching plants, and marine ice plants.

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	220V~480V/3P/50~60Hz
Refrigerant		/	R22/R404A/R507A/R448A/R449A/R717
Capacity		Kg/day	32000
Cooling way			Water Cooling
Temperature	Ambient temperature	℃	35
Temperature	Water inlet temperature	℃	20
Operating power	Cooling water pump	Kw	4.4
	Warm water pump	Kw	1.5
	lce cutter	Kw	3
	Cooling tower fan	Kw	2.2
	Cooling water pump	Kw	7.5
	Total running power	Kw	124
	Installment power	Kw	150
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	238.4
	Operating power	Kw	105.4
	Compressor COP/EER	Kw/Kw	2.26
	Horse power	Hp	75x2sets
	Type of compressor		Semi-hermetic screw
Dimension	Size of machine unit	L×W×H(mm)	2700x2200x2200
	Number of evaporator		1PC
	Size of evaporator	L×W×H(mm)	3200x2200x2450
	Size of ice outlet	L×W(mm)	1500x300×2PC
	Size of cooling tower	O.D.×H(mm)	Φ3050×2780
	Size of water feeding pipe of cooling tower		1"
	Size of cooling water pipes		5"
	Size of water feeding pipe		1-1/4"
Operating weight	Unit	Kg	2550
	Evaporator	Kg	1680
	Cooling tower	Kg	1630
Water supply pressure requirement		Bar	1

Product Details

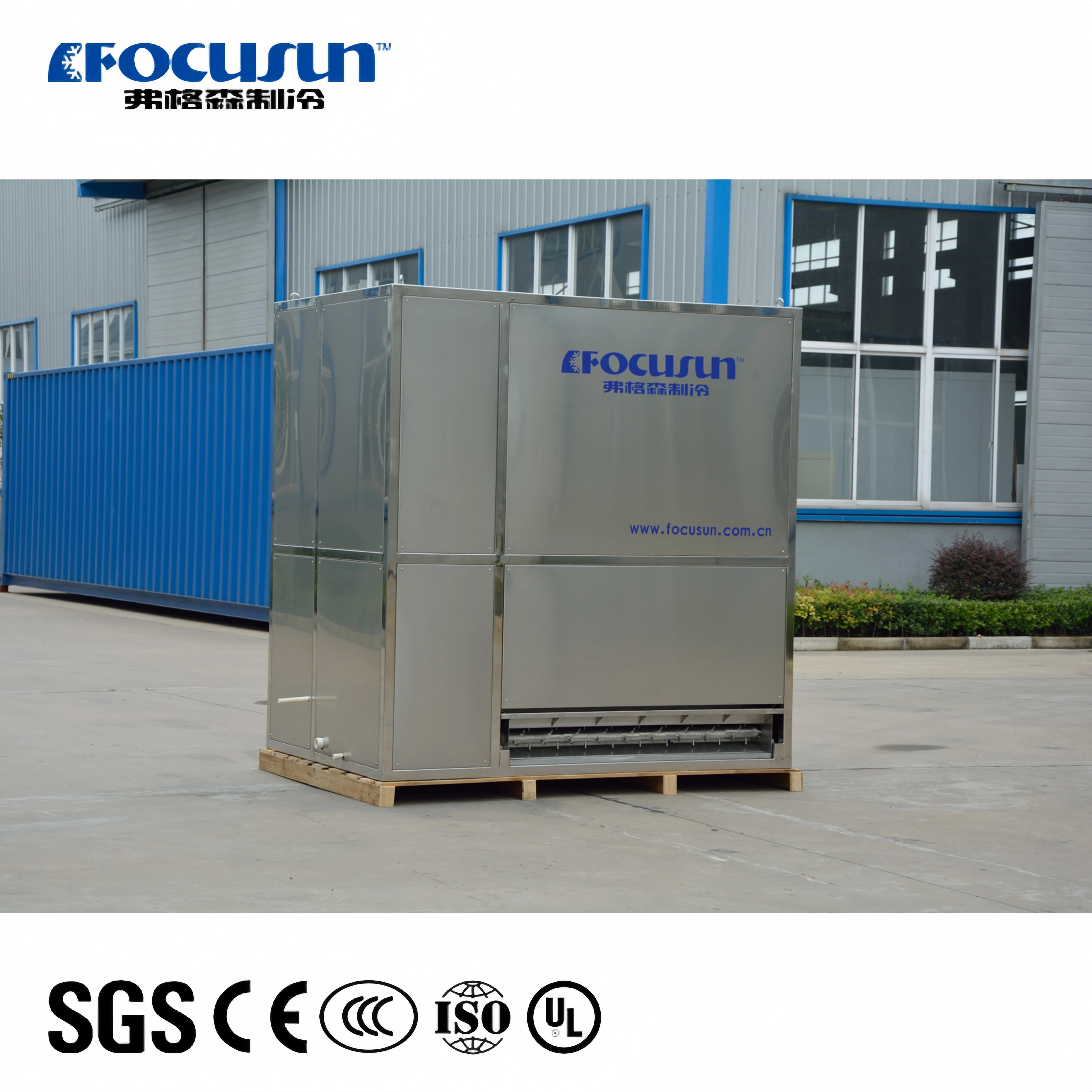

Evaporator

Focusun plate ice evaporator is constructed using high-quality aluminum alloy and SUS304 stainless steel, welded with advanced precision welding technology. It is not only durable and aesthetically pleasing, but also fully compliant with international hygiene standards.

Efficient Ice Doffing Mode

It's unnecessary to introduce additional heat energy since the reversal hot Freon gas produced by plate ice machine itself is fed into the evaporator, thus it just take less than 120 seconds for the whole ice doffing process.

Excellent water circulation system

Some water is transporated from the water tank to sprinkler, and the rest returns to the water tank and waits for the next water cycle.
