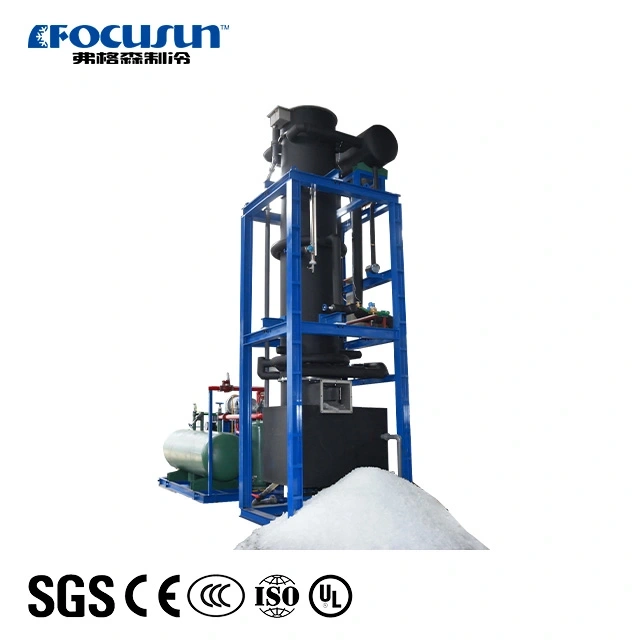

30 Tons/Day Tube Ice Machine

Name: 30 Tons/Day Tube Ice Machine
Brand: FOCUSUN REFRIGERATION
SKU: FIT-300
Availability: InStock
Rating: 5 (1 reviews)

No.FIT-300

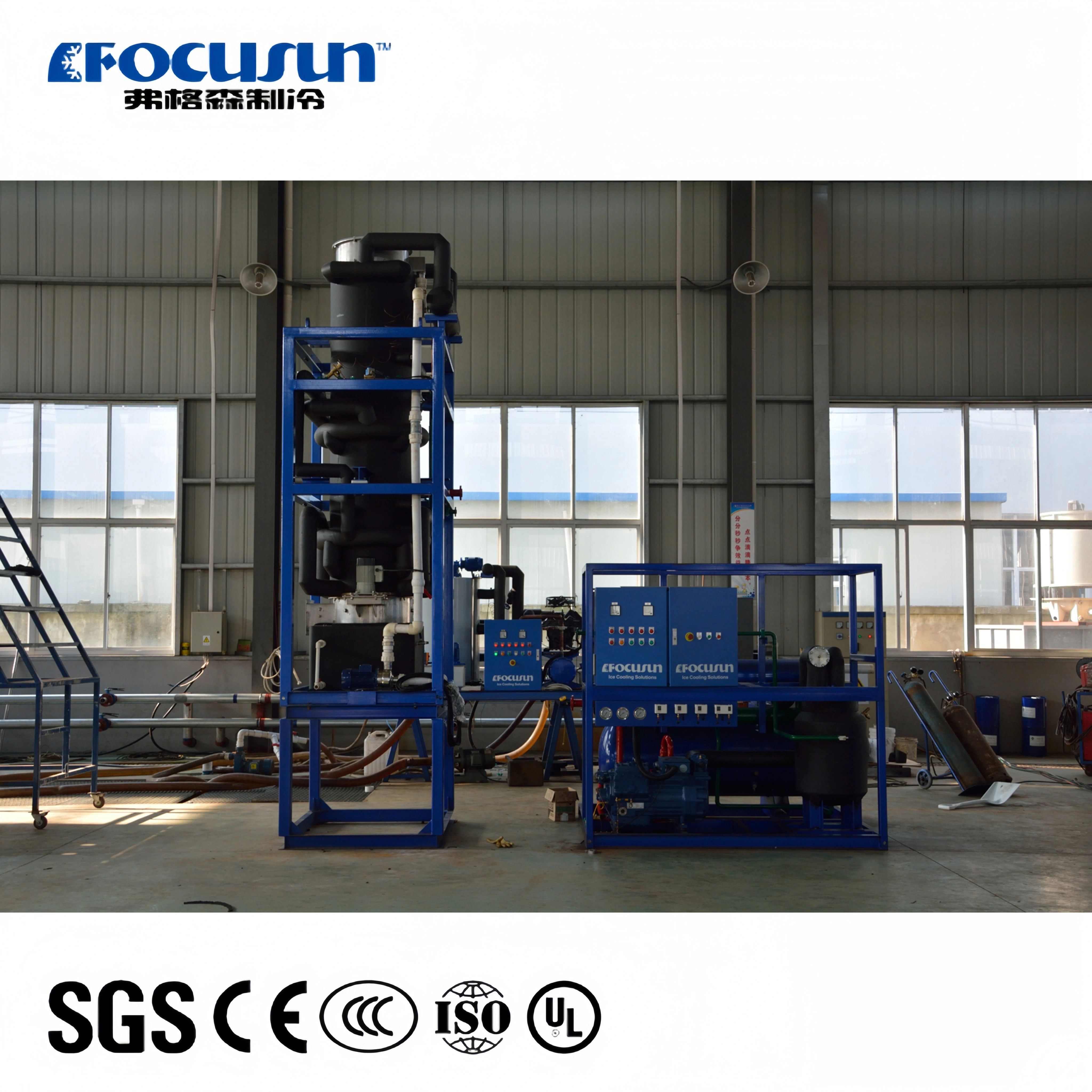

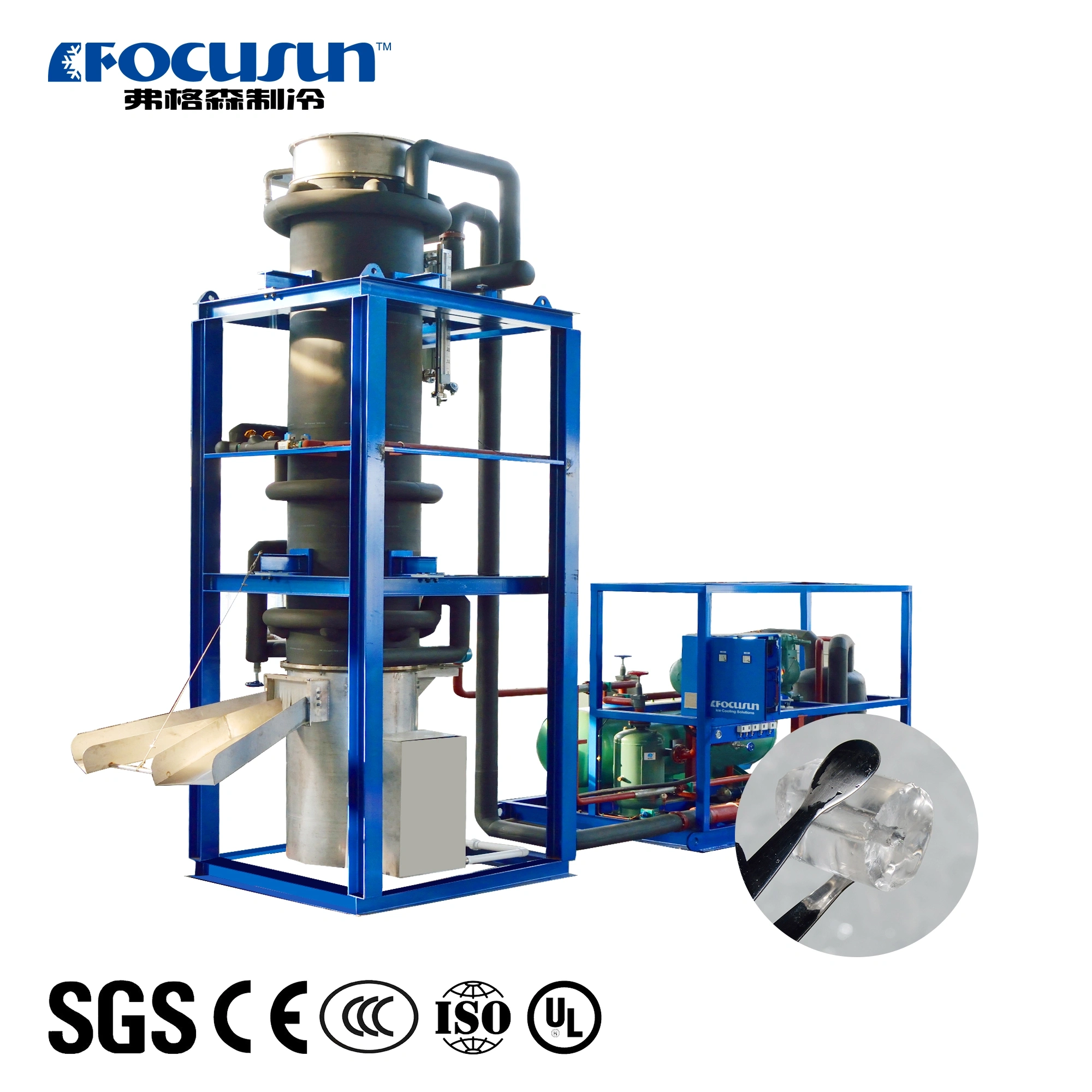

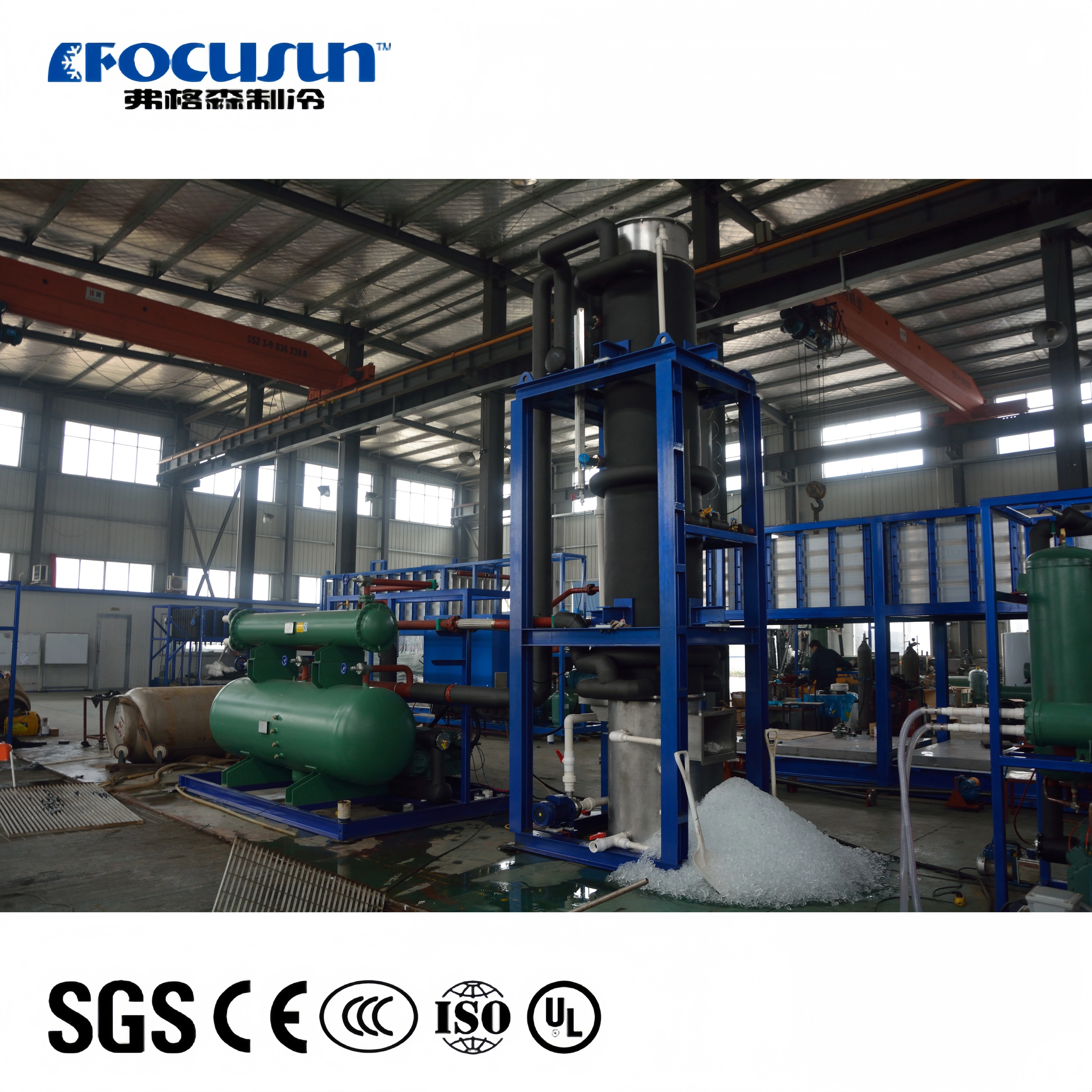

Focusun’s compact tube ice machine comes as a complete unit, with all components pre-assembled on a sturdy steel frame—excluding the cooling tower (for water-cooled systems) or air fan (for air-cooled systems).
Its modular design makes it ideal for containerized transport, ensuring easy shipping, relocation, and installation. Once connected to power and a water supply, the machine is ready for immediate operation.

Description

The tube ice machine produces cylindrical ice with a hollow core, known for its clarity, hardness, and slow melting rate. It is widely used in food processing, beverage cooling, fishery, supermarkets, and daily consumption due to its hygiene and appealing shape.

Focusun tube ice machines are made with high-quality components such as Bitzer compressors, Danfoss valves, and Siemens PLC systems, ensuring stable operation and long service life. The machines are fully automatic, energy-efficient, and designed for easy maintenance. Ice tube size can be customized (commonly 21mm, 28mm, 34mmor 38mm in diameter) to meet different market demands.

Tube ice machines can be installed in standalone setups or integrated into containerized units for easy transportation and quick deployment. Focusun engineers design the system with careful consideration of power efficiency, user operation, and compact layout, making it ideal for both urban and remote environments.

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	220V~480V/3P/50~60Hz
Refrigerant			R22/R404A/R507A/R448A/R449A/R717
Capacity		Kg/day	30000
Temperature	Ambient temperature	℃	35
Temperature	Water inlet temperature	℃	20
Operating power	Total running power	Kw	105
	Installment power	Kw	130
	Operating power of cutter	Kw	2.2
	Operating power of cold water pump	Kw	3.7
	Fan motor of cooling tower	Kw	2.2
	Operating power of cold water pump	Kw	7.5
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	222.9
	Operating power	Kw	89.4
	Compressor COP/EER	Kw/kw	2.5
	Horse power	Hp	50×3
	Cooling way		Water cooling
Dimension	Size of ice maker	(L×W×H)(mm)	Unit:2800×2200×2000 Evaporator:1450×1450×5200
	Size of cooling tower	(O.D. ×H)(mm)	φ3050×2780
	Size of liquid pipe of cooling tower		1"
	Size of cooling water pipe		4"
	Size of waterinlet pipe of ice maker		11-1/4"
	Size of ice outlet	mm	450×350
Weight of unit	Operating weight of tube ice maker	Kg	Unit:3280 Evaporator:4860
Weight of unit	Operating weight of cooling tower	Kg	1630
Water supply pressure requirement		Bar	1.5

Product Details

Evaporator

The evaporator is made from special alloy materials and enhanced through a proprietary heat treatment process to ensure optimal thermal efficiency. Strict manufacturing standards and thorough quality inspections make it compatible with both Freon and ammonia refrigeration systems.

Bitzer compressor

We use world-famous Bitzer compressors as the core of our ice machines.
Custom options like GEA, CARRIER, COPELAND, and REFCOMP are also available.
Your needs, our priority — Focusun delivers.

Touch Screen Controller

The touch screen makes the system easy to use, with a user-friendly interface for better monitoring and control.

Ice cutter

Throughout the production process, both water and ice come into contact only with food-grade materials, ensuring the ice remains clean and safe. The ice produced has a clear, aesthetically pleasing shape after cutting.

Ice Mold

Three ice sizes available: φ22mm, φ28mm, and φ35mm.
Made of SUS304 stainless steel and crafted through 19 advanced processing steps, the ice mold is highly durable—guaranteed not to deform or crack for up to 20 years.
