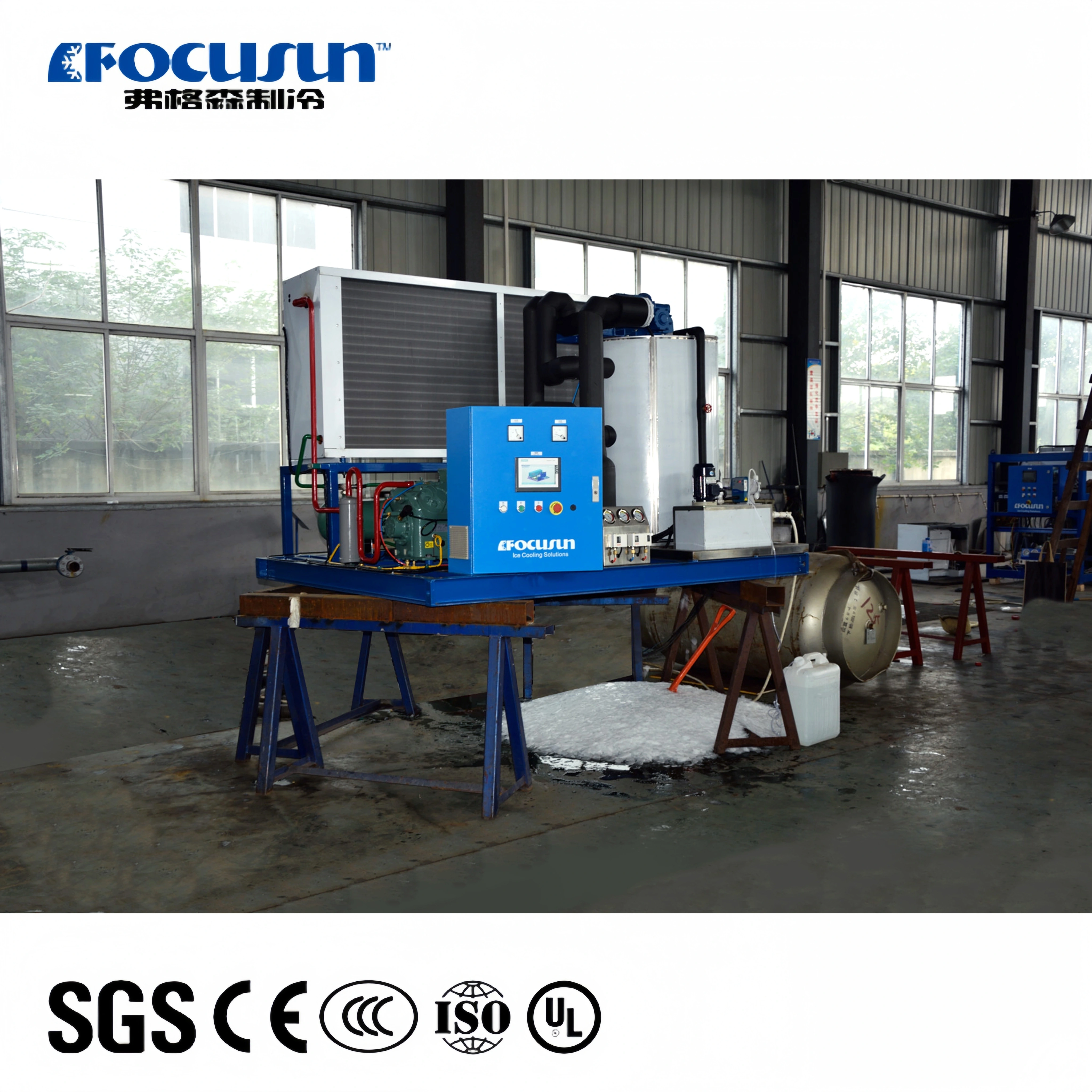

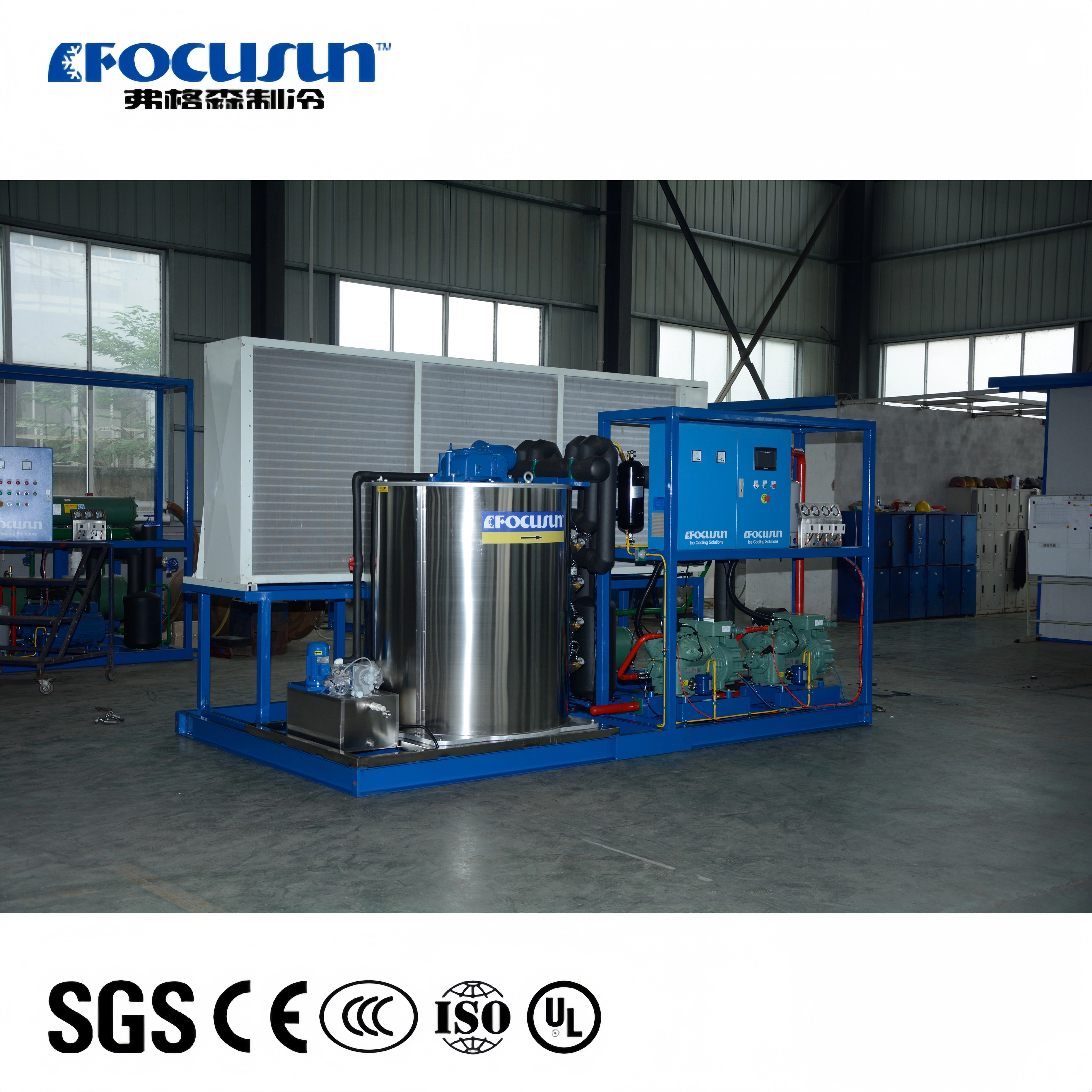

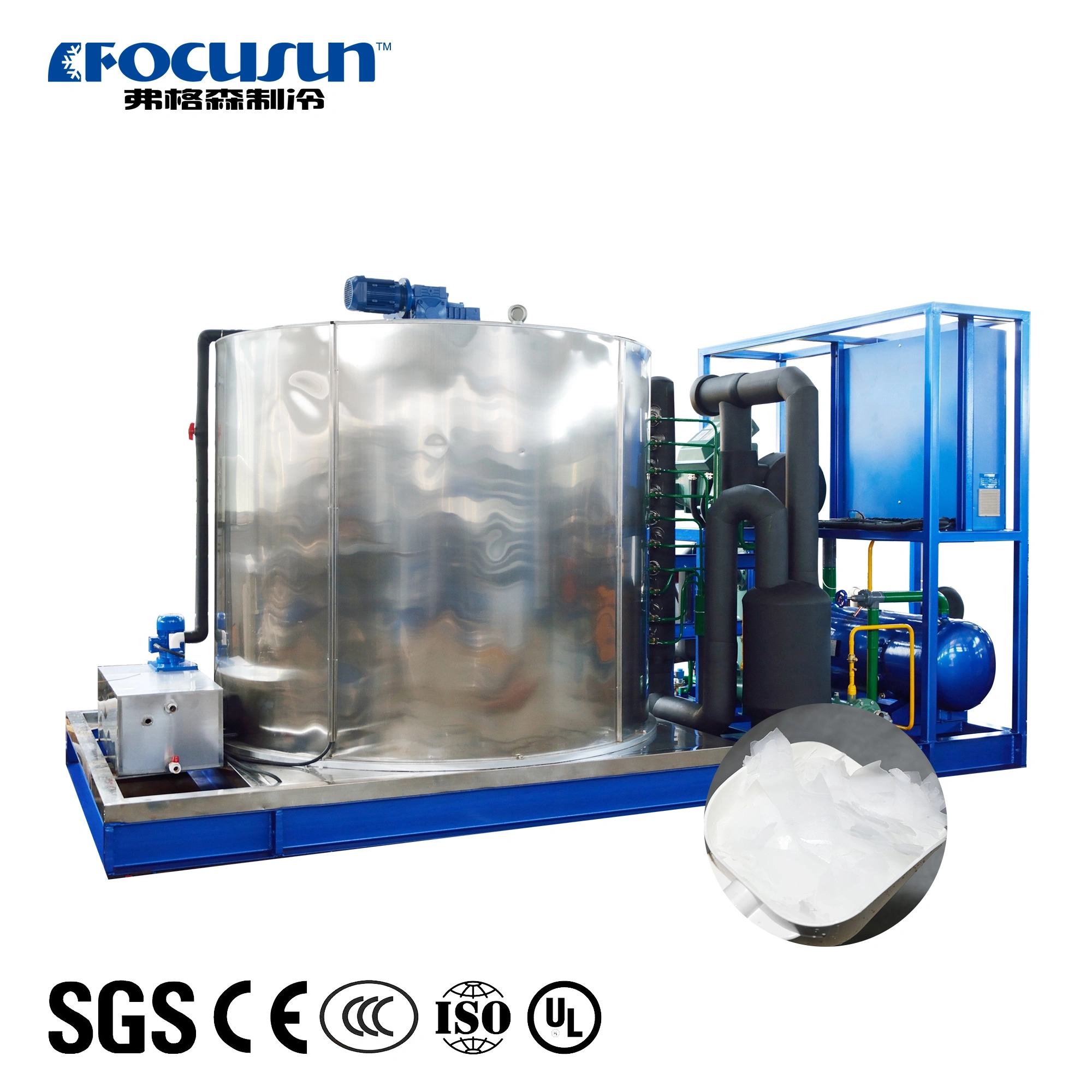

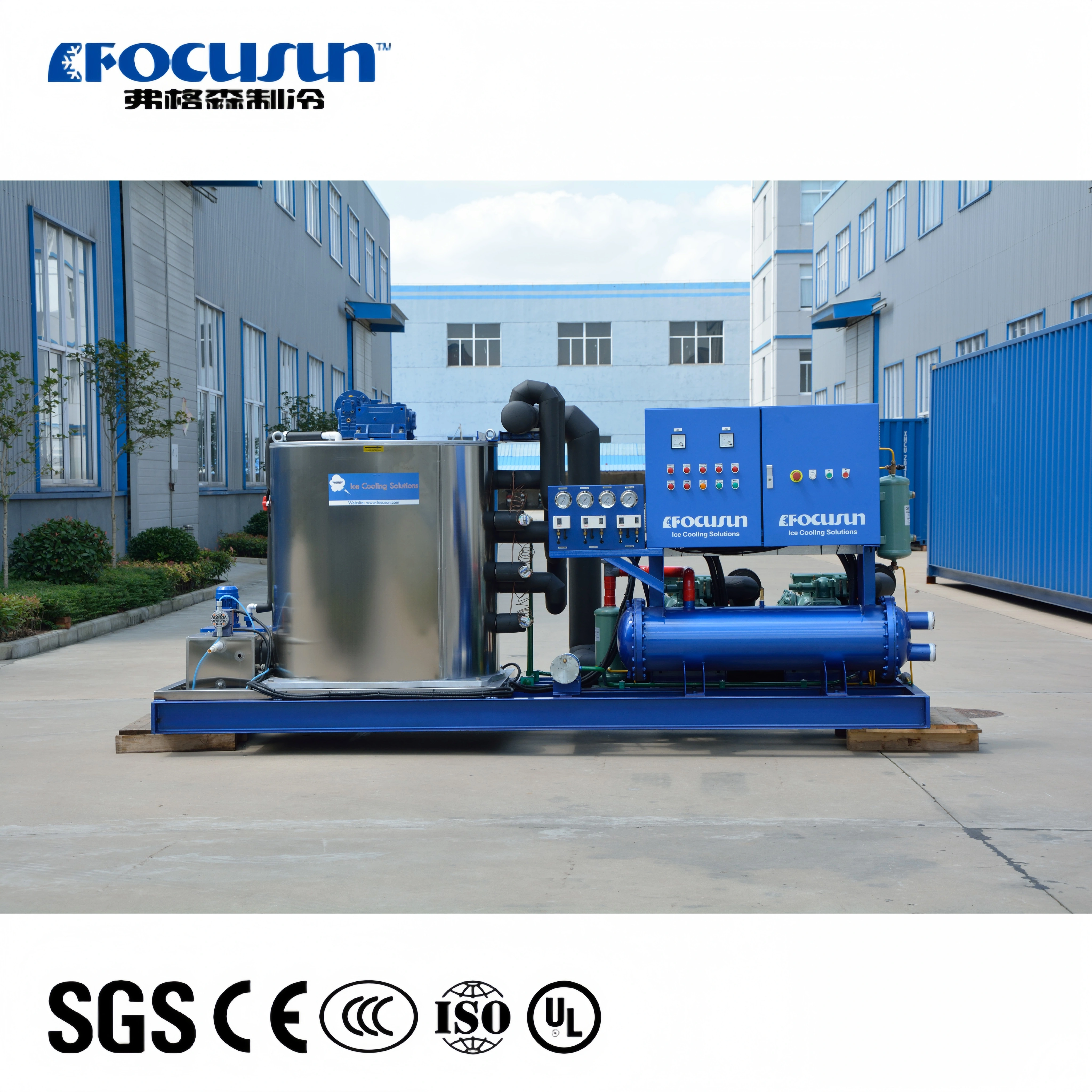

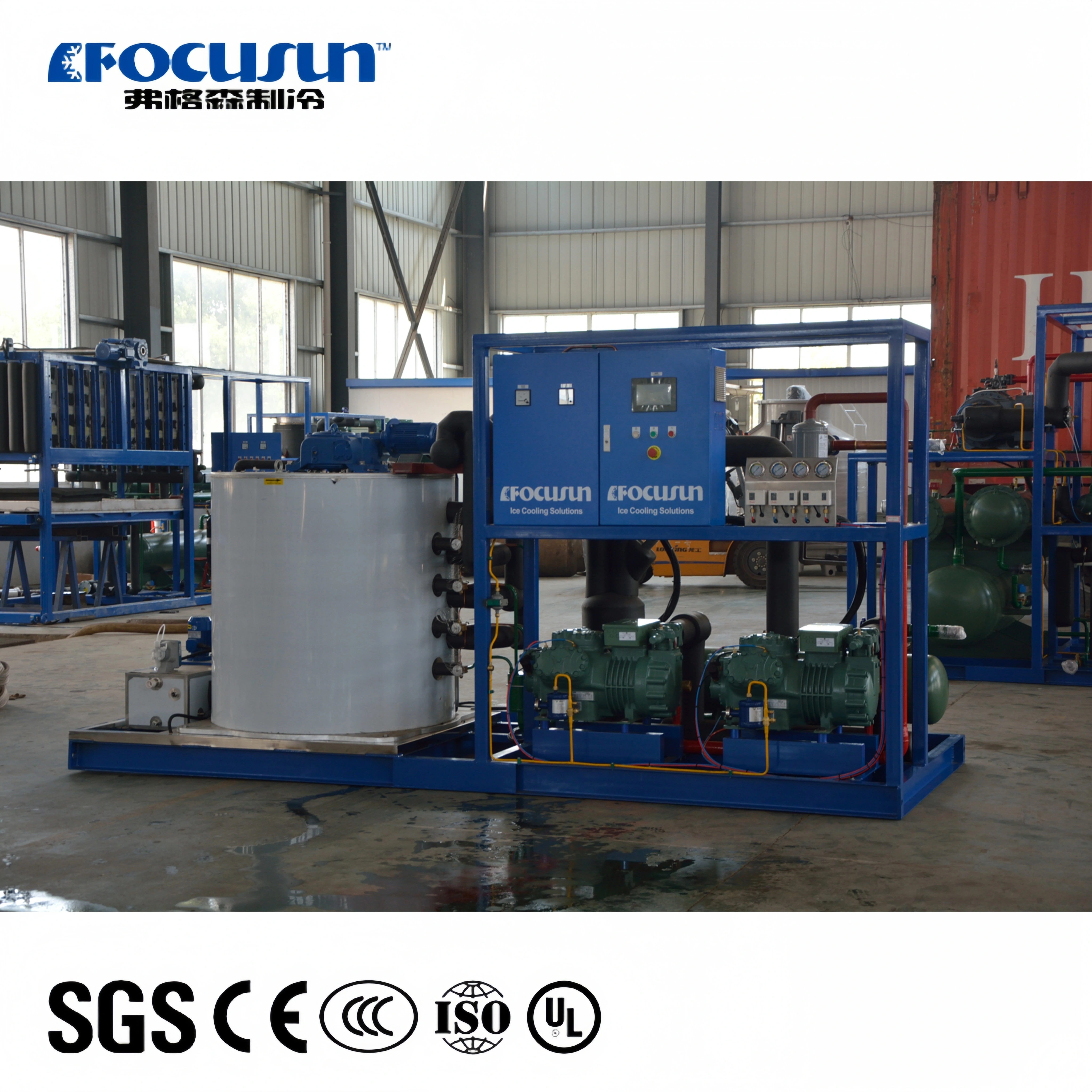

30 Tons/Day Fresh Water Flake Ice Machine

Name: 30 Tons/Day Fresh Water Flake Ice Machine
Brand: FOCUSUN REFRIGERATION
SKU: FIF-300
Availability: InStock
Rating: 5 (1 reviews)

No.FIF-300

Focusun Freshwater Flake Ice Machine is a high-efficiency, energy-saving ice production system. Utilizing premium stainless steel and advanced ice-making technology, it rapidly generates 1.5-2.5mm thin flake ice with superior cooling speed, excellent flowability, and easy storage. Featuring a fully automated control system for simple operation and low maintenance, it offers customizable production capacity (1-60 tons/day) and ice flake specifications. Ideal for seafood preservation, food processing, chemical cooling, supermarket cold chains, and various commercial/industrial applications, it represents a premium ice-making solution.

Description

The Focusun Fresh Water Flake Ice Machine is designed for applications requiring clean, hygienic, and efficient cooling. Using fresh water direct evaporation technology, it produces dry, soft, and thin flake ice ideal for food processing, supermarket displays, fruits & vegetables preservation, medical transport, laboratories, and daily use.

Key Features：

Dry and Loose Ice Flakes

Perfect for quick cooling and complete surface contact, improving freshness and efficiency.

Reliable Performance

Stable ice production with high efficiency—suitable for 24/7 continuous operation.

Food-Grade Materials

All ice-contact parts are made of SUS304 stainless steel, meeting international hygiene standards.

Energy Efficient & Easy Maintenance

Optimized design for low power consumption and easy servicing, even for non-technical users.

Automatic Control System

Equipped with PLC control, enabling fully automated ice making and harvesting processes.

Various Capacities Available

Daily capacity ranges from 500 kg to over 60 tons, adaptable to both commercial and industrial needs.

Widely exported to Southeast Asia, the Middle East, Africa, and South America, Focusun flake ice machines are trusted for their durability, hygiene, and performance.

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	220V~480V/3P/50~60Hz
Refrigerant		/	R22/R404A/R507A/R448A/R449A/R717
Capacity		kg/24h	30000
Cooling Way			Water Cooling
Temperature	Ambient Temperature	℃	35
Temperature	Water Temperature	℃	20
	Manufacturer		Bitzer/Carrier
	Refrigeration Power	kw	162.8
	Operating Power	kw	92.00
	Compressor COP/EER	kw/kw	2
	Horse Power	hp	70×2types
	Total running power	kw	102.45
	Installation Power	kw	125
	Power of Reducer	kw	2.20
	Power of Cold Water Pump	kw	0.55
	Cooling Water Pump	kw	5.5
	Fan of Cooling Tower	kw	2.20
Dimension	Size of Ice Maker	L×W×H(mm)	Unit:2800×2200×2200 Evaporator:2400×2000×3000
	Size of Cooling Tower	L×W×H(mm)	Φ2650×2645
	Size of Water Feeding Pipes of Cooling Tower		1"
	Size of Cooling Water Pipes		4"
	Size of Feeding Pipe		1"
	Size of Ice Outlet	mm	Φ1795
Weight	Weight of Flake Ice Maker	kg	Unit:2800 Evaporator:4500
Weight	Operating Weight of Cooling Tower	kg	1120
Water supply pressure requirement		bar	1~6

Product Details

Evaporator

The evaporator is constructed from stainless steel, ensuring that ice forms directly on a clean, hygienic surface. This material not only guarantees the purity of the ice but also enhances the durability and longevity of the equipment.

Ice Scraper

The ice scraper is constructed from high-density, wear-resistant material, ensuring exceptional durability and consistent performance over long-term operation.

Its robust design minimizes wear and tear, enhances operational reliability, and contributes to stable, efficient ice production in even the most demanding industrial environments.

Evaporation Barrel

The evaporation barrel is made of high-quality stainless steel, offering excellent heat transfer, corrosion resistance, and durability. Its smooth inner surface ensures efficient ice formation and reliable performance.
