Name: 30 Tons/Day Direct Cooling Block Ice Machine
Brand: FOCUSUN REFRIGERATION
SKU: FIB-300D
Availability: InStock
Rating: 5 (1 reviews)

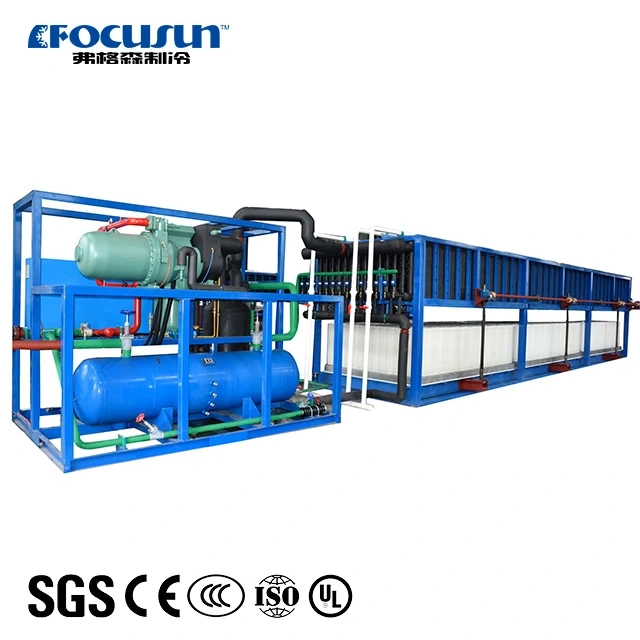

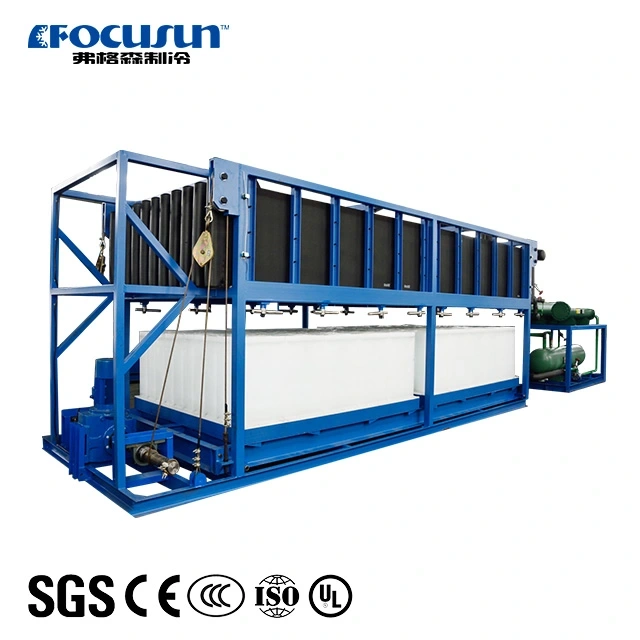

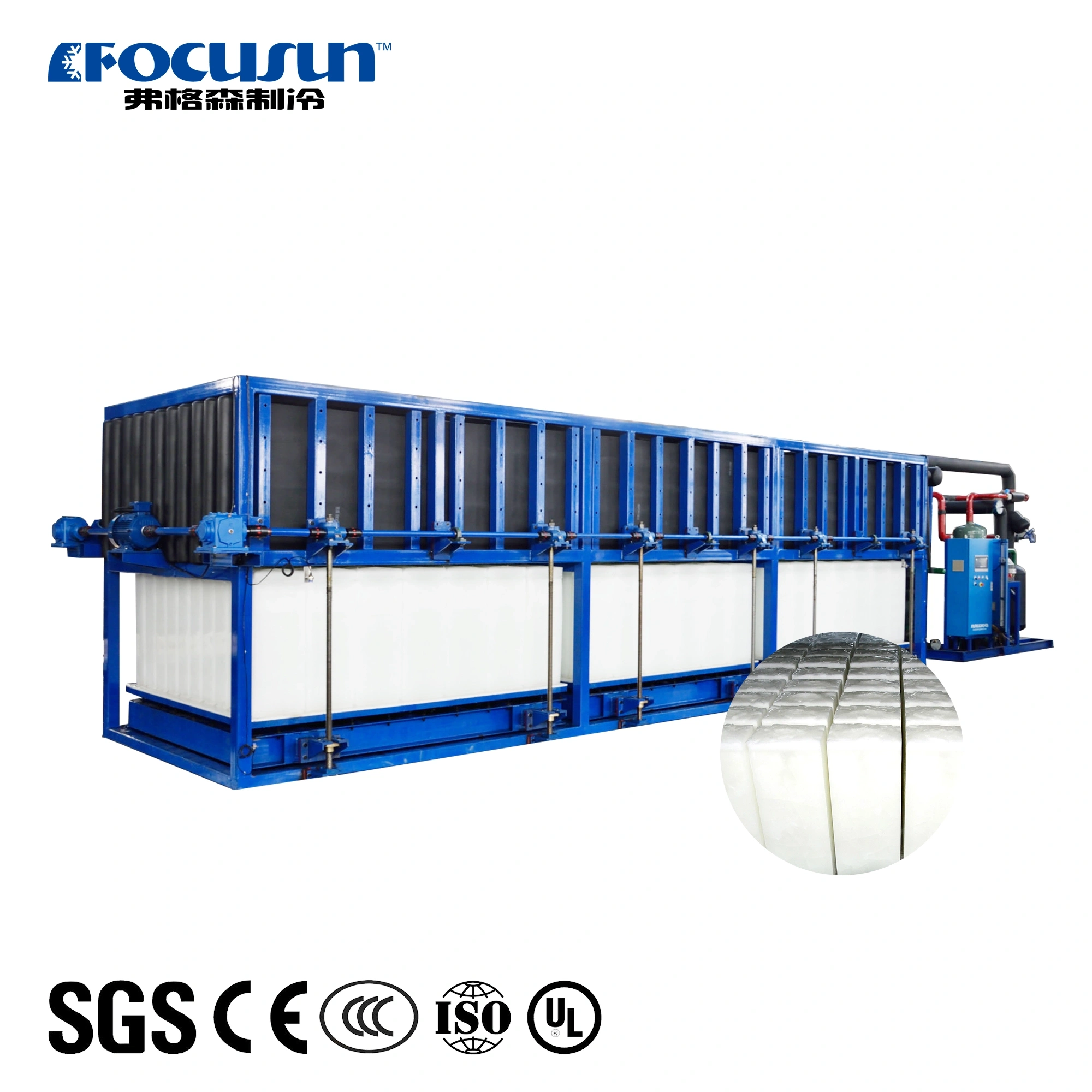

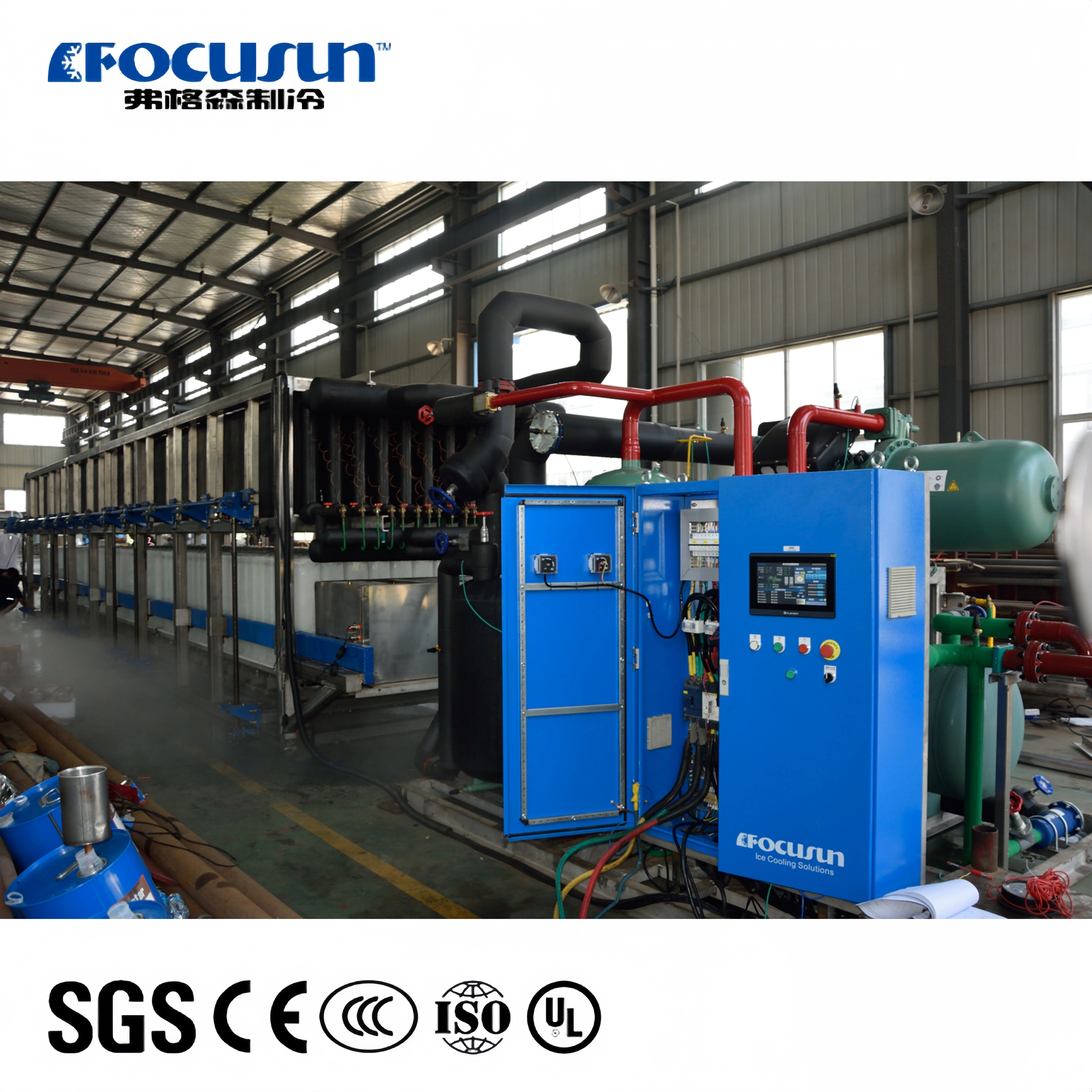

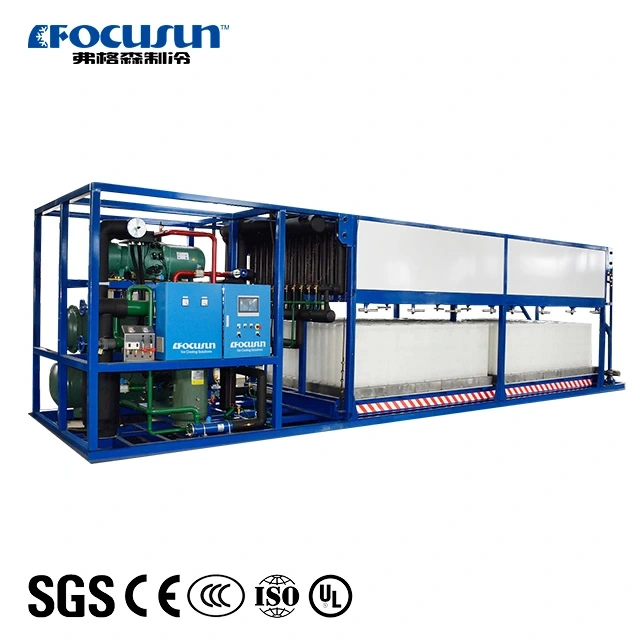

30 Tons/Day Direct Cooling Block Ice Machine

No.FIB-300D

Focusun has introduced a modular design for its block ice machines, enhancing flexibility and efficiency. The system is divided into three main modules: the machine unit, the evaporator, and the cooling tower. The evaporator module is further divided into multiple sets, depending on the machine’s capacity.

Description

Focusun direct cooling block ice machine adopts an advanced salt-free direct refrigeration system. Aluminum molds are used to transfer heat directly from the refrigerant, enabling fast and sanitary ice production. It is widely used in seafood preservation, food logistics, ice sculpture, and high-end display applications.

It is important to note that our direct cooling block ice machines use specially customized aluminum alloy ice molds. These molds are manufactured using a unique welding technique that ensures long service life, corrosion resistance, aging resistance, and excellent energy efficiency.

Key Advantages:
No Brine Required: Eliminates corrosion and saltwater maintenance; cleaner and safer ice production
Aluminum Ice Molds: High thermal conductivity for faster and more efficient freezing
Standardized Block Shape: Easy for handling, stacking, and packaging
Modular Design: Flexible configuration based on daily output
PLC Intelligent Control: Automatic ice making and defrosting with touch screen interface
Optional Containerized Version: Ideal for mobile or remote site deployment

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	220V~480V/3P/50~60Hz
Refrigerant			R22/R404A/R507A/R448A/R449A/R717
Capacity		Kg/day	30000
Cooling way			Water cooling
Temperature	Ambient temperature	℃	35
Temperature	Waterinlet temperature	℃	20
Operating power	Total running power	Kw	113.55
	Installment power	Kw	150
	Cooling tower fan	Kw	3.7
	Cooling water pump	Kw	7.5
	Operating power of cold water pump	Kw	0.75
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	236.4
	Operating power	Kw	101.6
	Compressor COP/EER	Kw/kw	2.3
	Horse power	Hp	40×4sets
Working time	Ice making time	h	7.5
Working time	ce falling off time	h	0.5
Dimension	Weight of block ice	Kg/block	50
	Size of block ice	(L×W×H)(mm)	480×160×700
	Size of unit modular	(L×W×H)(mm)	3200×2000×2200
	Number of evaporator		6 PC
	Size of evaporator modular	(L×W×H)(mm)	4800×1000×2200
	Size of cooling tower	(O.D. ×H)(mm)	φ3300×2785
	Size of water feeding pipe of cooling tower		1-1/4"
	Size of cooling water pipes		5"
	Size of water feeding pipe		11-1/4"
Operating weight	Unit	Kg	3500
	Evaporator	Kg	2860
	Cooling tower	Kg	2730
Water supply pressure requirement		Bar	1

Product Details

Evaporator

Focusun's evaporator uses high-conductivity aluminum ice molds for fast, uniform freezing. With no brine, it ensures cleaner ice, higher energy efficiency, and longer lifespan—ideal for food-grade and demanding applications.

Bitzer compressor

We use world-famous Bitzer compressors as the core of our ice machines.
Custom options like GEA, CARRIER, COPELAND, and REFCOMP are also available.
Your needs, our priority — Focusun delivers.

Touch Screen Controller

The touch screen makes the system easy to use, with a user-friendly interface for better monitoring and control.

Aluminum Plate

Aluminum plates are used in all water-contact areas of the tank to prevent rust and ensure long-term hygiene.

Ice Pushing Device

Made of galvanized steel with high wear resistance and rust protection. Equipped with a stainless steel waterproof cover and sealing plate to ensure block ice remains clean and hygienic.
