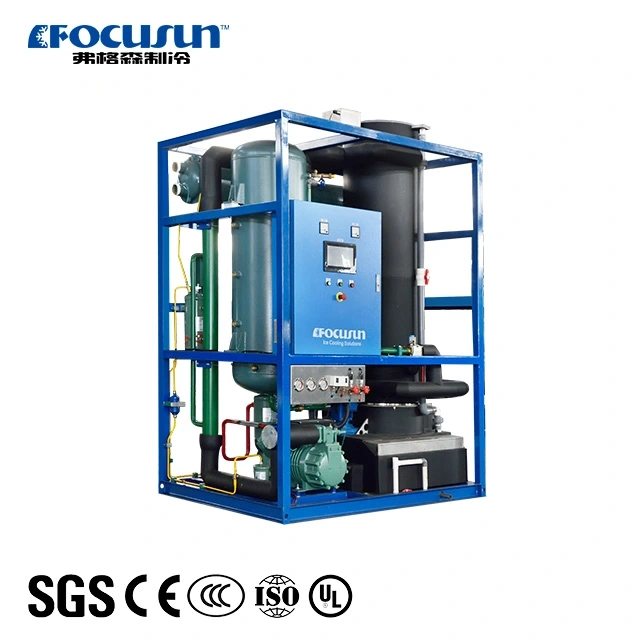

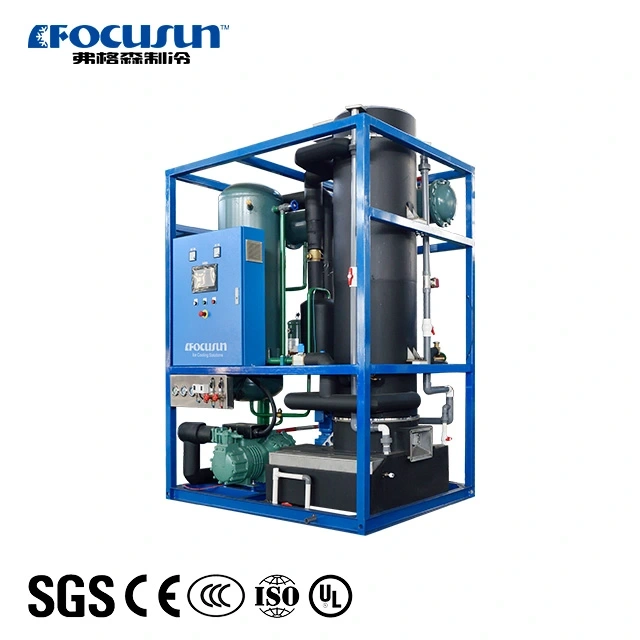

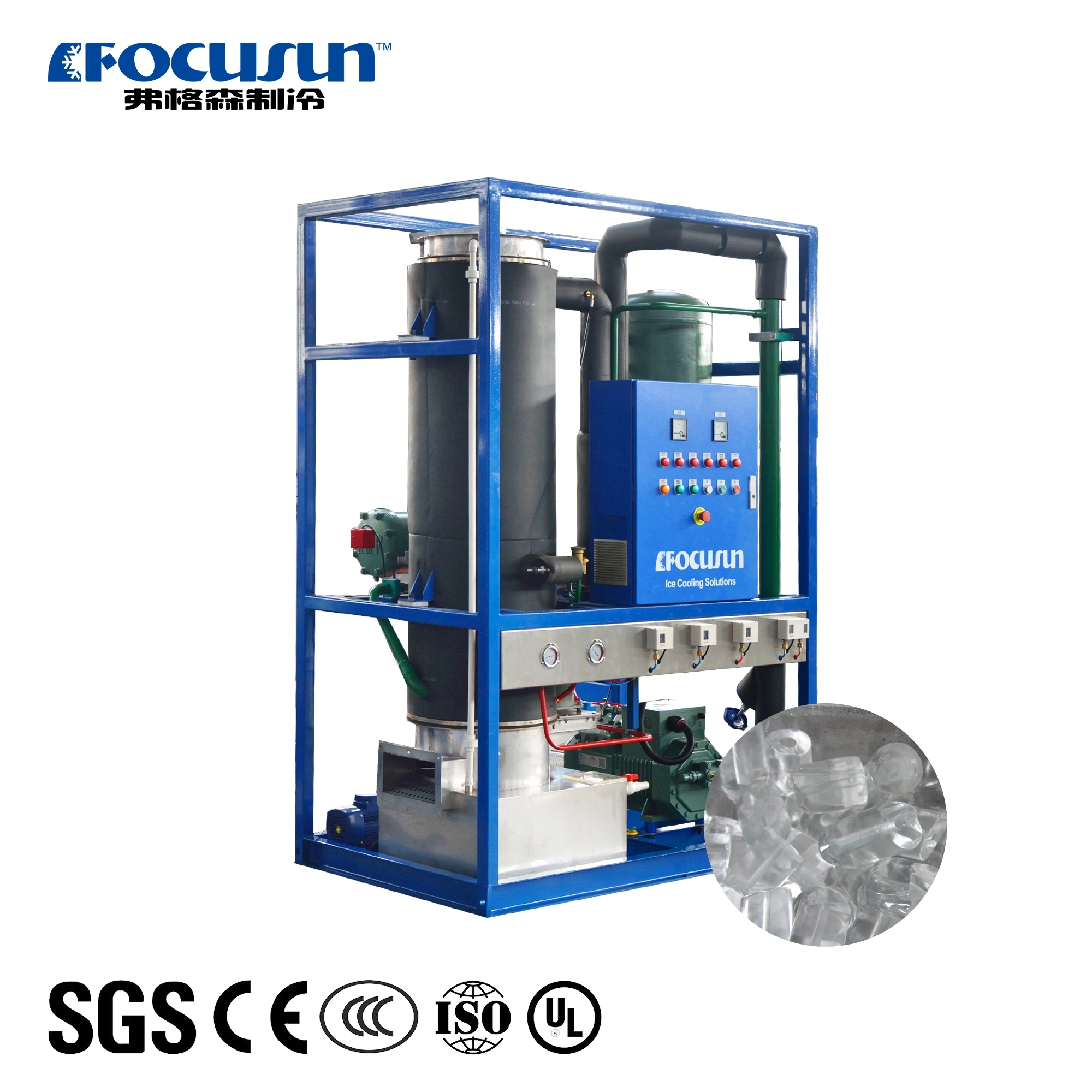

The tube ice machine is compact and designed to fit into smaller spaces while still delivering high-volume ice production. It produces hollow ice tubes, which are ideal for rapid cooling in food service, medical, and retail industries.
The tube ice machine produces clean, high-quality ice in the form of hollow cylinders, which is ideal for cooling and preserving the freshness of perishable products. The ice is made from pure water, ensuring that it meets food-grade standards and is safe for consumption.
Designed with hygiene in mind, the tube ice machine ensures that the ice produced is free from contaminants. The hollow shape of the ice allows it to cool quickly and melt slowly, making it perfect for applications in the food service industry, such as cooling drinks or preserving fresh seafood.
Thanks to its automatic operation and user-friendly interface, the tube ice machine is easy to operate and maintain. It offers a reliable, cost-effective solution for businesses looking for clean, efficient ice production with minimal effort.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 3000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 11.01 |
| Installment power | Kw | 13.5 | |
| Operating power of cutter | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 24.5 | |
| Operating power | Kw | 8.89 | |
| Compressor COP/EER | Kw/kw | 2.76 | |
| Horse power | Hp | 15 | |
| Condenser | Fan power | Kw | 1.2 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×920×2000 |
| Size of condenser | (L×W×H)(mm) | 1400×1200×1350 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of tube ice maker | Kg | 1250 |
| Operating weight of condenser | Kg | 125 | |
| Water supply pressure requirement | Bar | 1 | |
