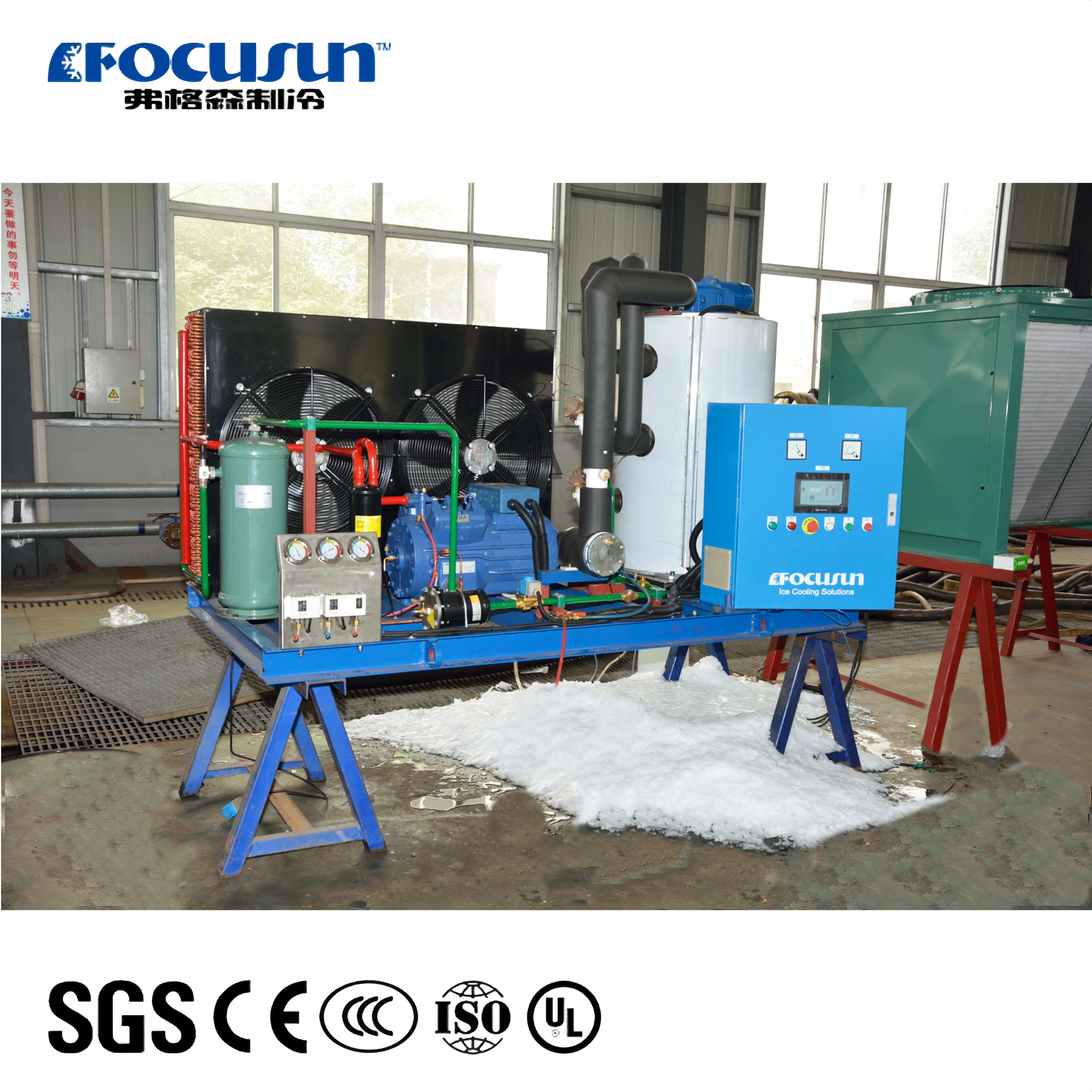

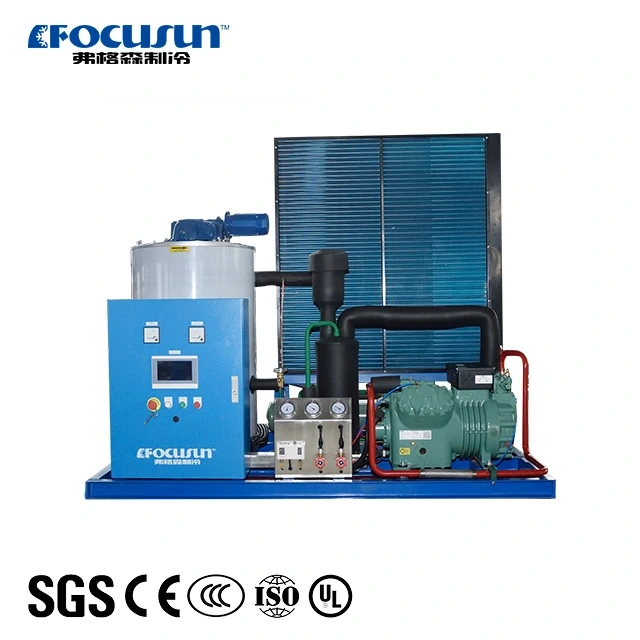

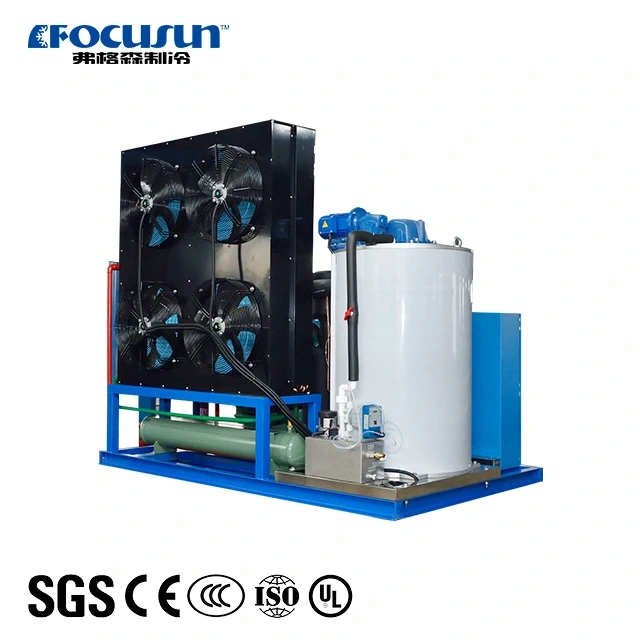

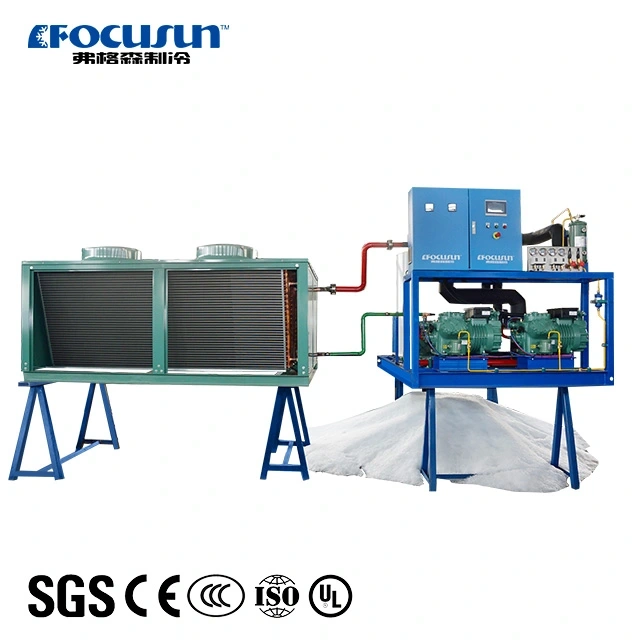

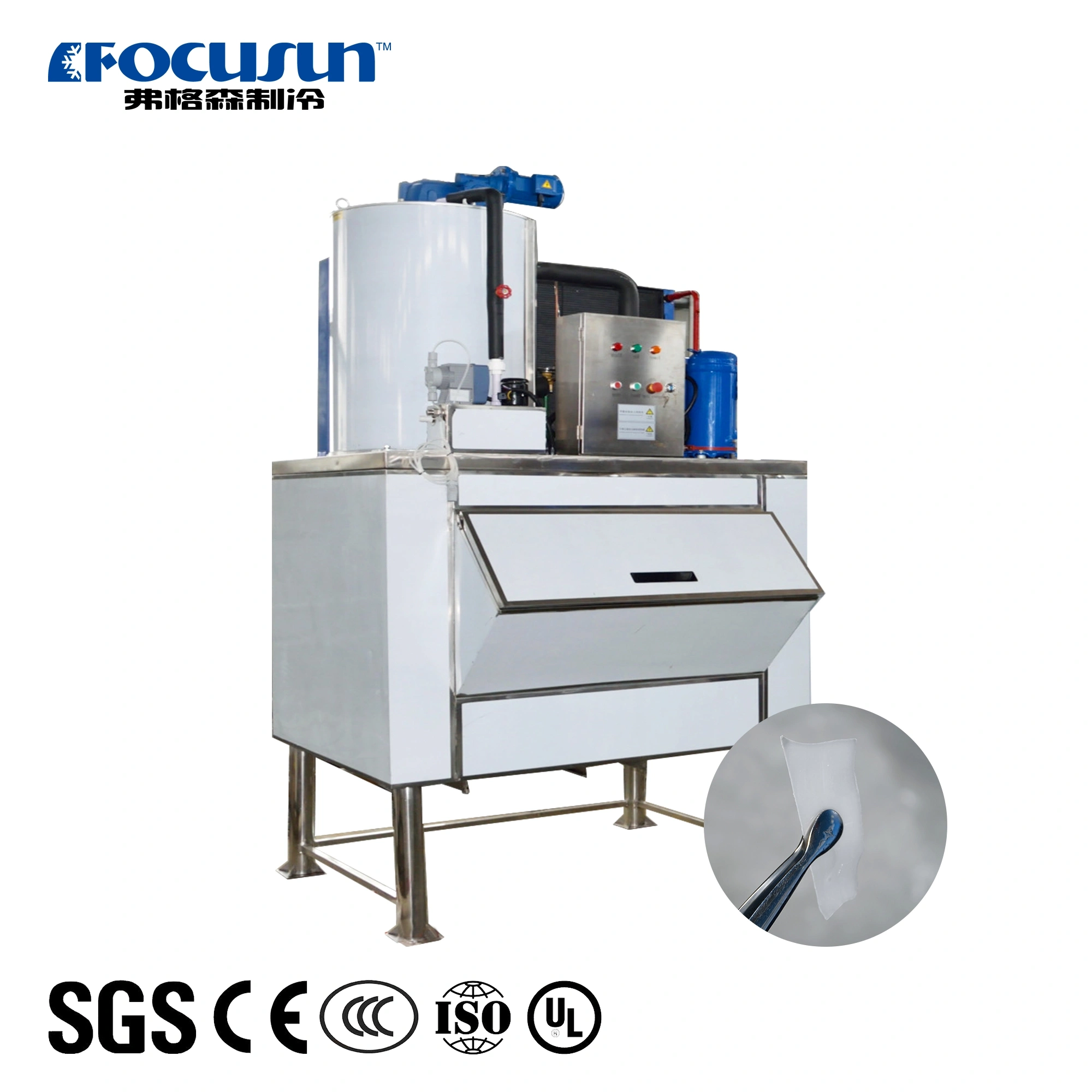

The Focusun Freshwater Flake Ice Machine is built with user-friendly automation and low maintenance in mind. The fully automated system handles ice production seamlessly, reducing manual intervention and labor costs. Its durable construction and reliable performance make it an ideal choice for industries that need continuous, high-quality ice for preservation, cooling, and processing.
The Focusun Freshwater Flake Ice Machine combines high-performance technology with user-friendly automation. It produces thin, dry ice flakes ranging from 1.5-2.5mm that are perfect for quick cooling applications in food processing, seafood storage, and cold chain logistics. Constructed from durable stainless steel, this machine ensures long-lasting operation and high reliability. With customizable ice production capacities and low maintenance, it’s designed to meet the specific needs of businesses, from small operations to large-scale industries, all while saving energy and reducing costs.
Key Features：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Temperature | Ambient Temperature | ℃ | 35 |
| Water Temperature | ℃ | 20 | |
| Operating Power | Total running power | Kw | 14.347 |
| Power of Reducer | Kw | 0.37 | |
| Power of Cold Water Pump | Kw | 0.12 | |
| Capacity/Stock | Capacity | kg/24h | 3000 |
| Capacity of Ice Bin | kg | 1500 | |
| Compressor | Manufacturer | Copeland | |
| Refrigeration Power | kw | 19.15 | |
| Operating Power | kw | 13.63 | |
| Compressor COP/EER | kw/kw | 1.40 | |
| Horse Power | hp | 15 | |
| Condenser | Fan Power | kw | 0.45 |
| Cooling Way | Air Cooling | ||
| Dimension | Size of Ice Maker | L×W×H(mm) | 1700×900×1200 |
| Size of Ice Bin | L×W×H(mm) | 2000×1300×1200 | |
| Size of Feeding Pipe | 4" | ||
| Weight | Weight of Flake Ice Maker | kg | 950 |
| Operating Weight of Ice Bin | kg | 1650 | |
| Water supply pressure requirement | Bar | 1~6 | |
