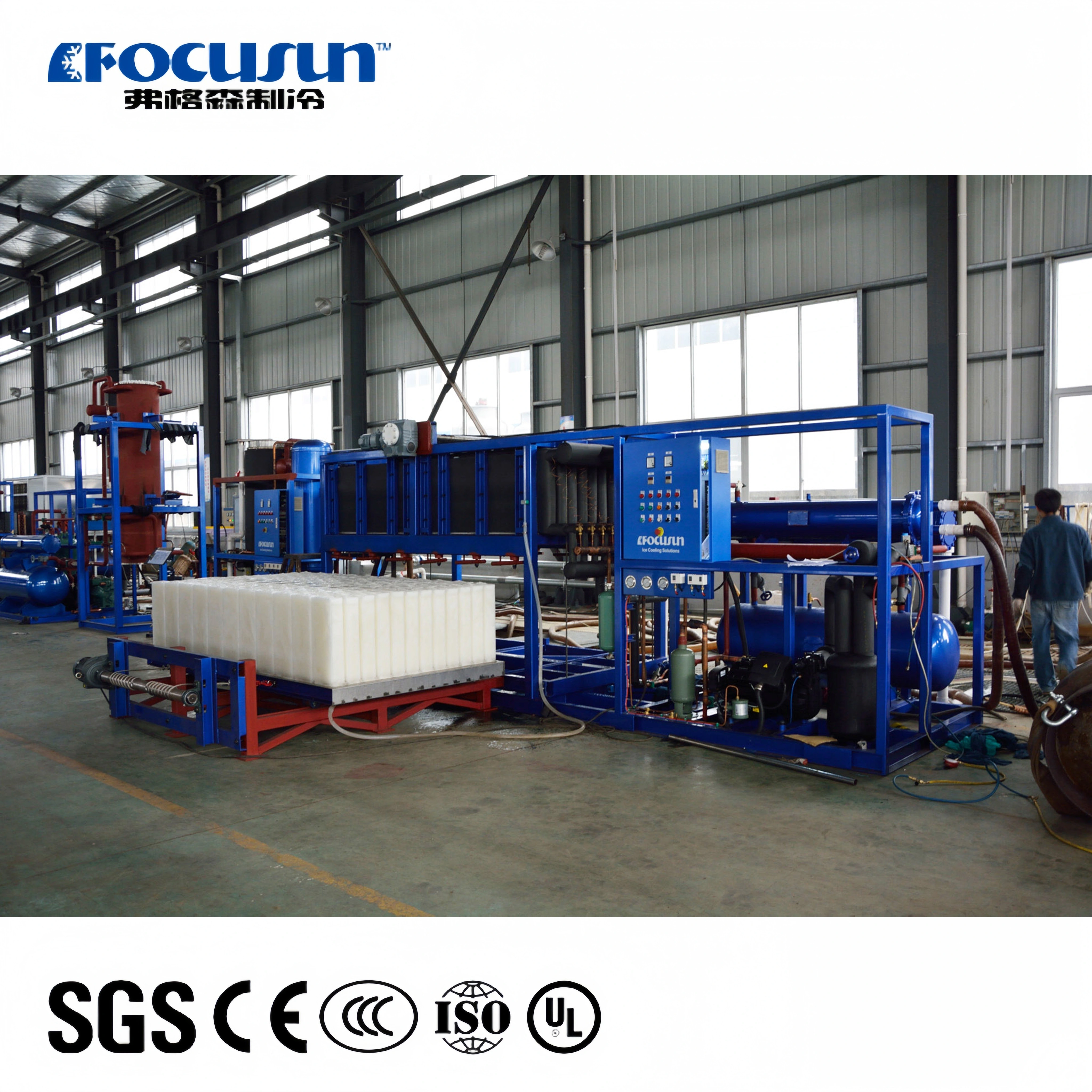

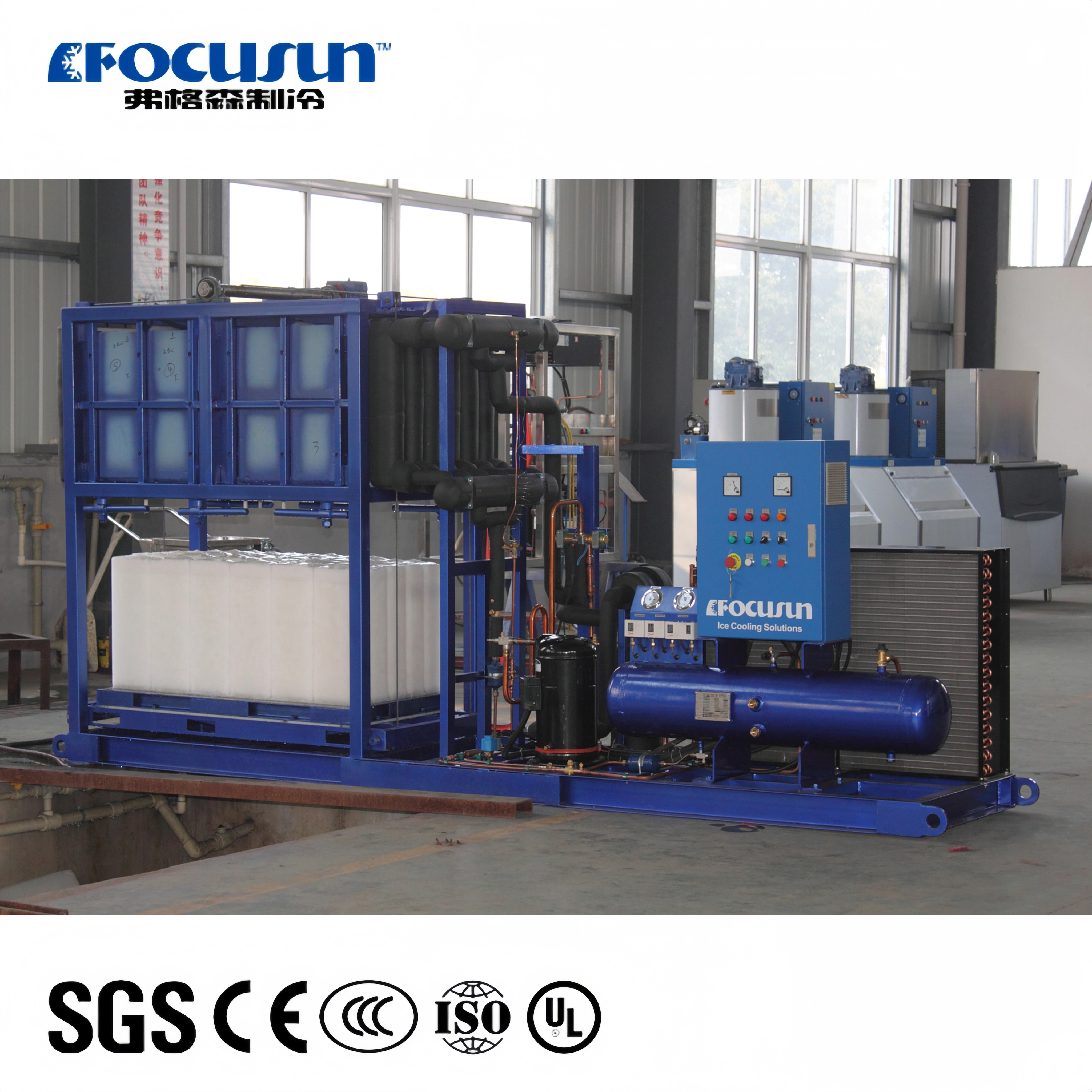

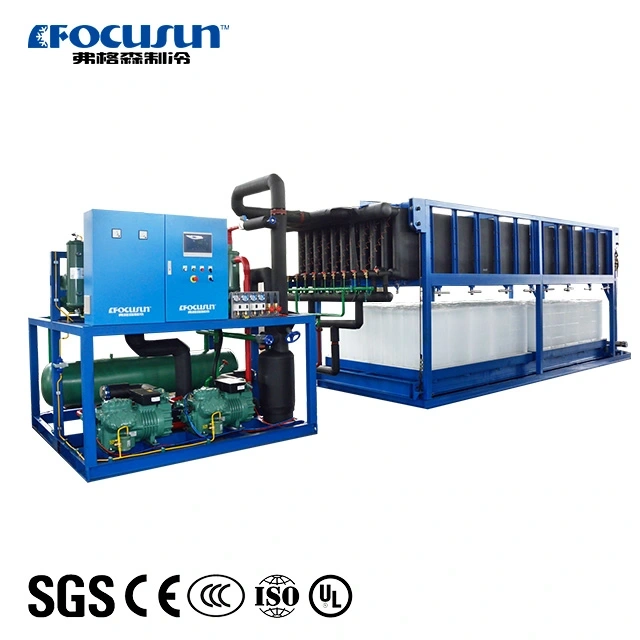

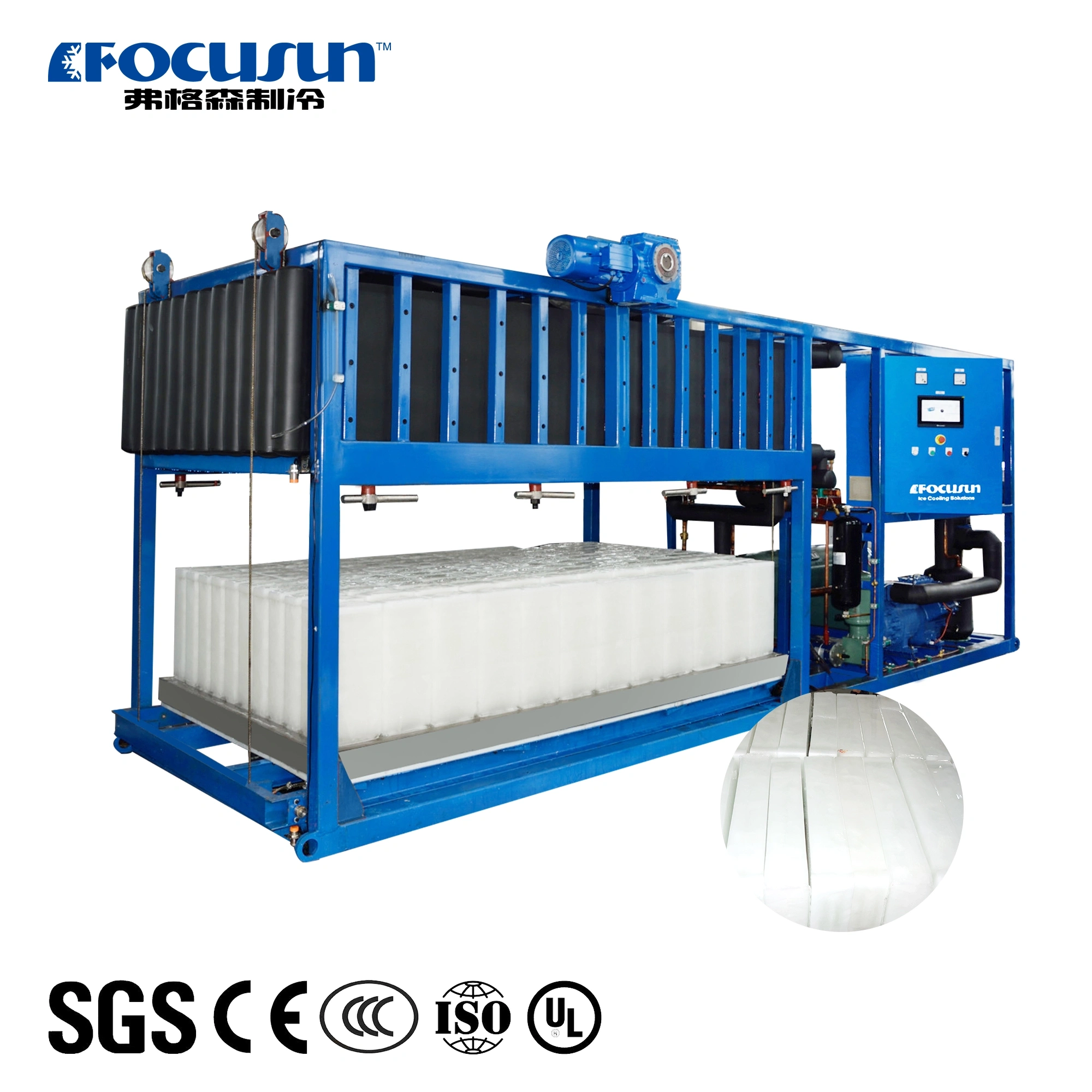

The direct cooling block ice machine produces pure, solid block ice by freezing water directly in thermally efficient aluminum molds. Unlike traditional systems, it doesn’t require brine, ensuring that the ice remains clean, hygienic, and safe for consumption. The ice blocks are quick to form and slow to melt, providing consistent quality for various commercial uses, including seafood storage and industrial cooling.
Easy to use and maintain, this machine features fully automated operation, from ice production to water replenishment and ice removal. It’s compact, space-efficient, and can be installed quickly—just connect water and electricity, and the machine is ready to go. Its durable, modular design ensures long-term reliability and high performance, even in demanding environments.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | R22/R404A/R507A/R448A/R449A/R717 | ||
| Capacity | Kg/day | 15000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 59.15 |
| Installment power | Kw | 75 | |
| Cooling tower fan | Kw | 1.5 | |
| Cooling water pump | Kw | 5.5 | |
| Operating power of cold water pump | Kw | 0.75 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 118.2 | |
| Operating power | Kw | 51.4 | |
| Compressor COP/EER | Kw/kw | 2.3 | |
| Horse power | Hp | 40×2sets | |
| Working time | Ice making time | h | 7.5 |
| ce falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of unit modular | (L×W×H)(mm) | 2000×1200×1600 | |
| Number of evaporator | 3 PC | ||
| Size of evaporator modular | (L×W×H)(mm) | 4800×1000×2200 | |
| Size of cooling tower | (O.D. ×H)(mm) | φ2175×2565 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 4" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 2160 |
| Evaporator | Kg | 2860 | |
| Cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1 | |
