Name: 25 Tons/Day Direct Cooling Block Ice Machine
Brand: FOCUSUN REFRIGERATION
SKU: FIB-250D
Availability: InStock
Rating: 5 (1 reviews)

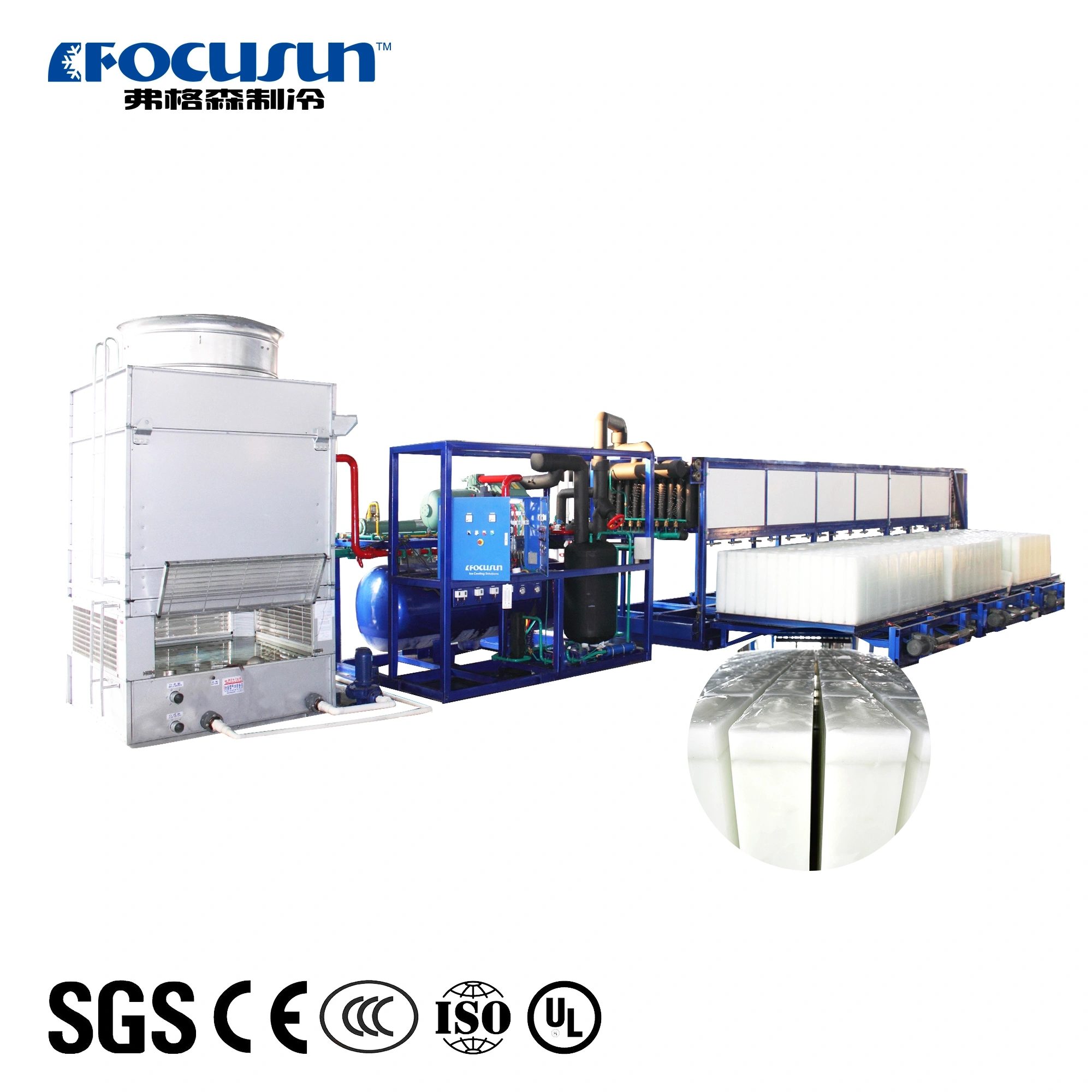

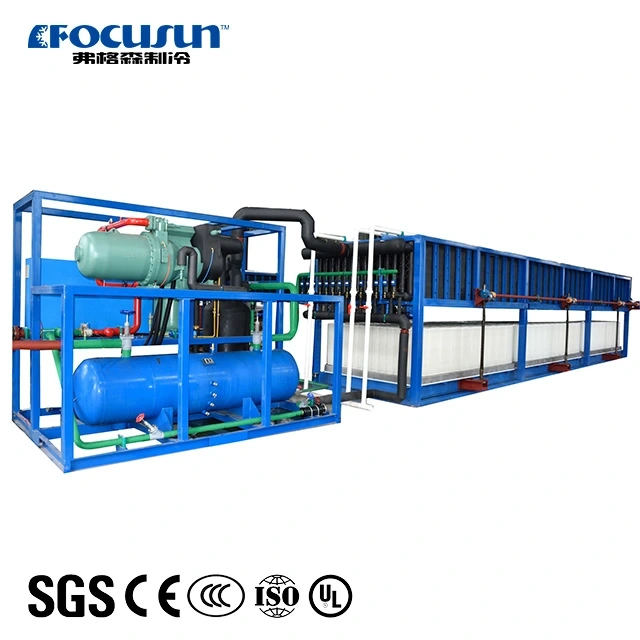

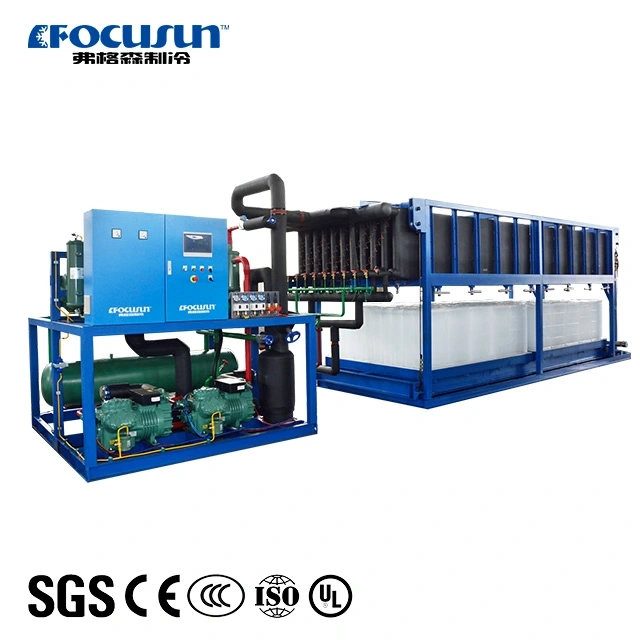

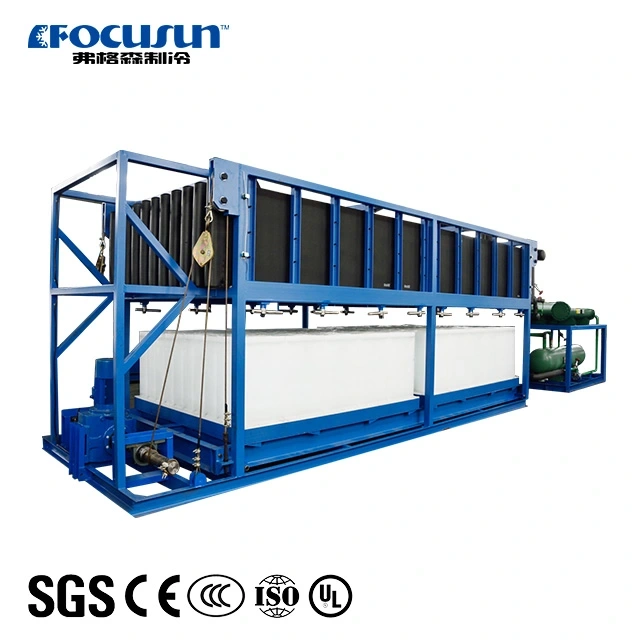

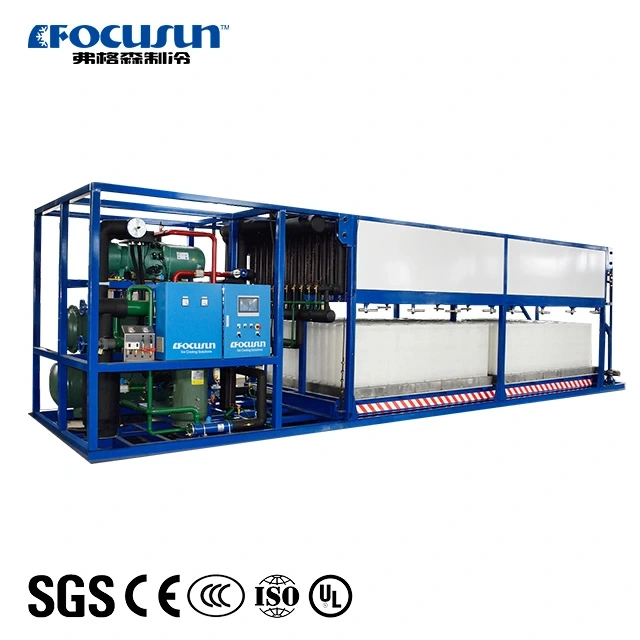

25 Tons/Day Direct Cooling Block Ice Machine

No.FIB-250D

This machine freezes water directly through aluminum molds connected to the refrigeration system, eliminating the need for brine. The design increases heat transfer efficiency, reduces maintenance, and ensures consistent block ice quality.

Description

The direct cooling block ice machine offers simple operation, easy transportation, and low operating costs. With its direct refrigeration design, the machine freezes water without using brine, ensuring the ice remains completely hygienic, clean, and safe for consumption. Unlike traditional systems, there is no risk of salt contamination or corrosion, making it ideal for food-grade applications.

This machine produces ice using only fresh water, freezing it directly inside high-conductivity aluminum molds. No additives, chemicals, or saltwater are required—just water and electricity. The result is crystal-clear, solid block ice with excellent hardness and purity, suitable for fisheries, food processing, supermarkets, and commercial use.

Key Advantages:
No Brine Required: Eliminates corrosion and saltwater maintenance; cleaner and safer ice production
Aluminum Ice Molds: High thermal conductivity for faster and more efficient freezing
Standardized Block Shape: Easy for handling, stacking, and packaging
Modular Design: Flexible configuration based on daily output
PLC Intelligent Control: Automatic ice making and defrosting with touch screen interface
Optional Containerized Version: Ideal for mobile or remote site deployment

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	220V~480V/3P/50~60Hz
Refrigerant			R22/R404A/R507A/R448A/R449A/R717
Capacity		Kg/day	25000
Cooling way			Water cooling
Temperature	Ambient temperature	℃	35
Temperature	Waterinlet temperature	℃	20
Operating power	Total running power	Kw	94.05
	Installment power	Kw	120
	Cooling tower fan	Kw	2.2
	Cooling water pump	Kw	7.5
	Operating power of cold water pump	Kw	0.75
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	199.2
	Operating power	Kw	83.6
	Compressor COP/EER	Kw/kw	2.38
	Horse power	Hp	30×4sets
Working time	Ice making time	h	7.5
Working time	ce falling off time	h	0.5
Dimension	Weight of block ice	Kg/block	50
	Size of block ice	(L×W×H)(mm)	480×160×700
	Size of unit modular	(L×W×H)(mm)	3200×1800×2200
	Number of evaporator		5 PC
	Size of evaporator modular	(L×W×H)(mm)	4800×1000×2200
	Size of cooling tower	(O.D. ×H)(mm)	φ3050×2780
	Size of water feeding pipe of cooling tower		1"
	Size of cooling water pipes		5"
	Size of water feeding pipe		1-1/4"
Operating weight	Unit	Kg	3260
	Evaporator	Kg	2860
	Cooling tower	Kg	1630
Water supply pressure requirement		Bar	1

Product Details

Evaporator

Focusun's evaporator uses high-conductivity aluminum ice molds for fast, uniform freezing. With no brine, it ensures cleaner ice, higher energy efficiency, and longer lifespan—ideal for food-grade and demanding applications.

Bitzer compressor

We use world-famous Bitzer compressors as the core of our ice machines.
Custom options like GEA, CARRIER, COPELAND, and REFCOMP are also available.
Your needs, our priority — Focusun delivers.

Touch Screen Controller

The touch screen makes the system easy to use, with a user-friendly interface for better monitoring and control.

Aluminum Plate

Aluminum plates are used in all water-contact areas of the tank to prevent rust and ensure long-term hygiene.

Ice Pushing Device

Made of galvanized steel with high wear resistance and rust protection. Equipped with a stainless steel waterproof cover and sealing plate to ensure block ice remains clean and hygienic.
