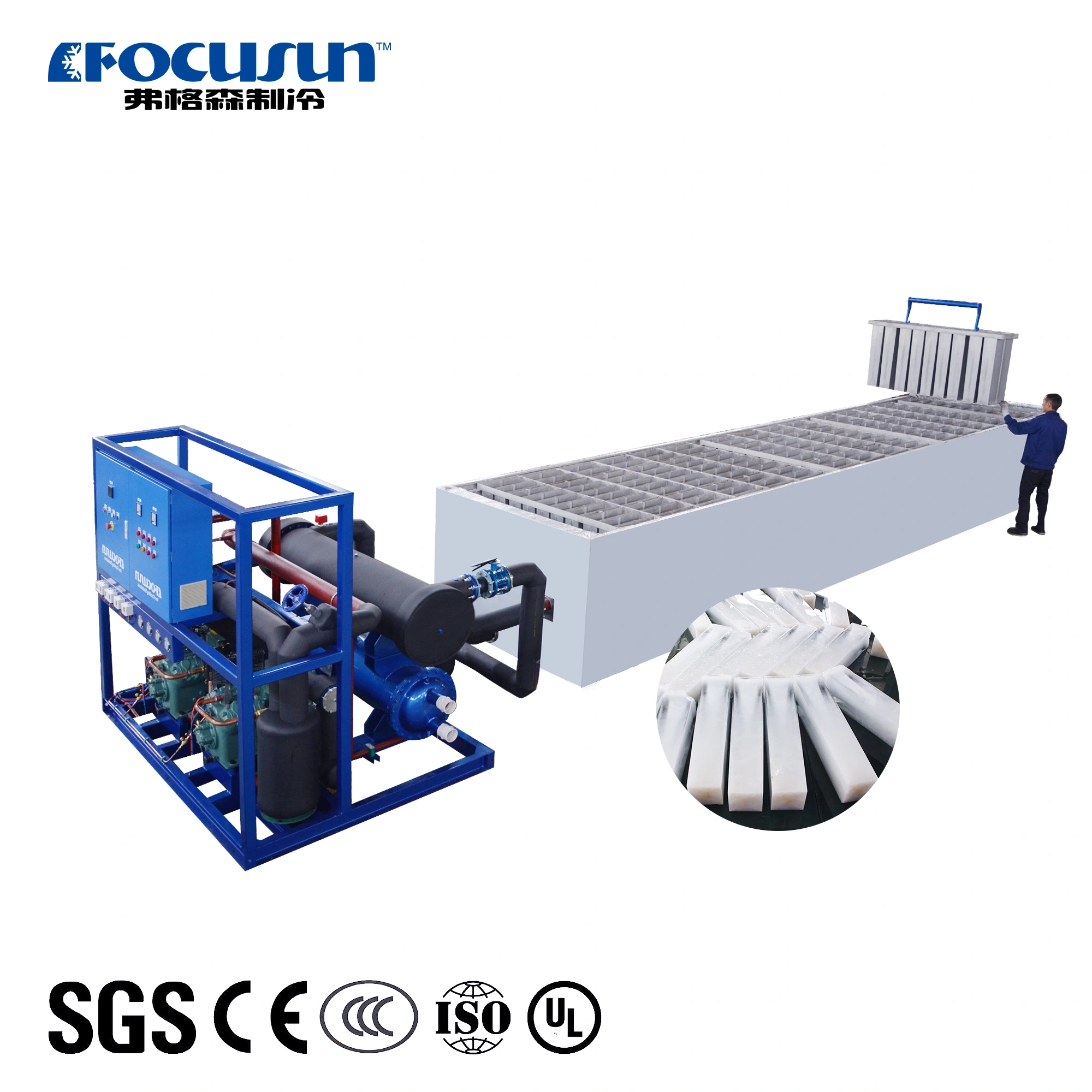

The brine system block ice machine is a powerful solution for large-scale ice production. By circulating a brine solution through cooling coils, the machine rapidly freezes water into solid, uniform block ice. This method ensures consistent and high-quality ice formation, ideal for heavy-duty use in industries like food processing, shipping, and fisheries.
With robust construction and durable components, the brine system block ice machine is built to handle high volumes of production. It operates efficiently even under demanding conditions, offering low maintenance and long-term reliability. This makes it the go-to choice for businesses that rely on large quantities of ice for daily operations.

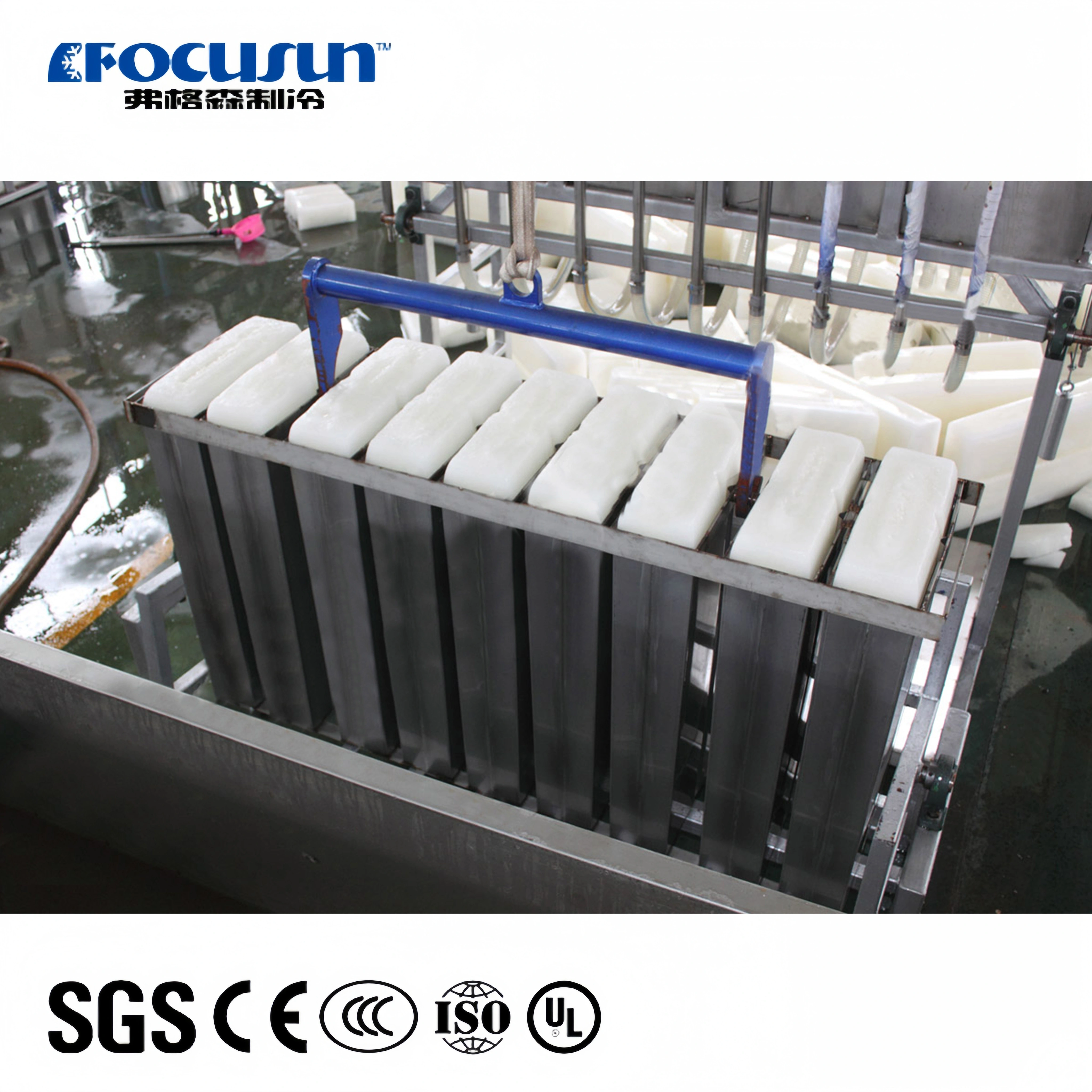

In addition, the ice molds used in brine-type block ice machines are quite unique. To facilitate the quick release of ice blocks after the freezing process, the molds are typically designed in a tapered shape—wider at the top and narrower at the bottom.
There are two main materials available for the ice molds:
Equipping your ice factory with a cold storage room is essential. Once the ice blocks are produced, they are typically transported to the cold room for proper storage.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 25000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 98.8 |
| Installment power | Kw | 120 | |
| Operating power of cold water pump | Kw | 7.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 199.2 | |
| Operating power | Kw | 83.6 | |
| Compressor COP/EER | Kw/kw | 2.38 | |
| Horse power | Hp | 30×4 | |
| Condenser | Power | Kw | 9.7 |
| Cooling way | Water cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice doffing time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of cooling tower | (L×W×H)(mm) | φ3050×2780mm | |
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight of cooling tower | Kg | 1630 | |
| Water supply pressure requirement | Bar | 1 | |
