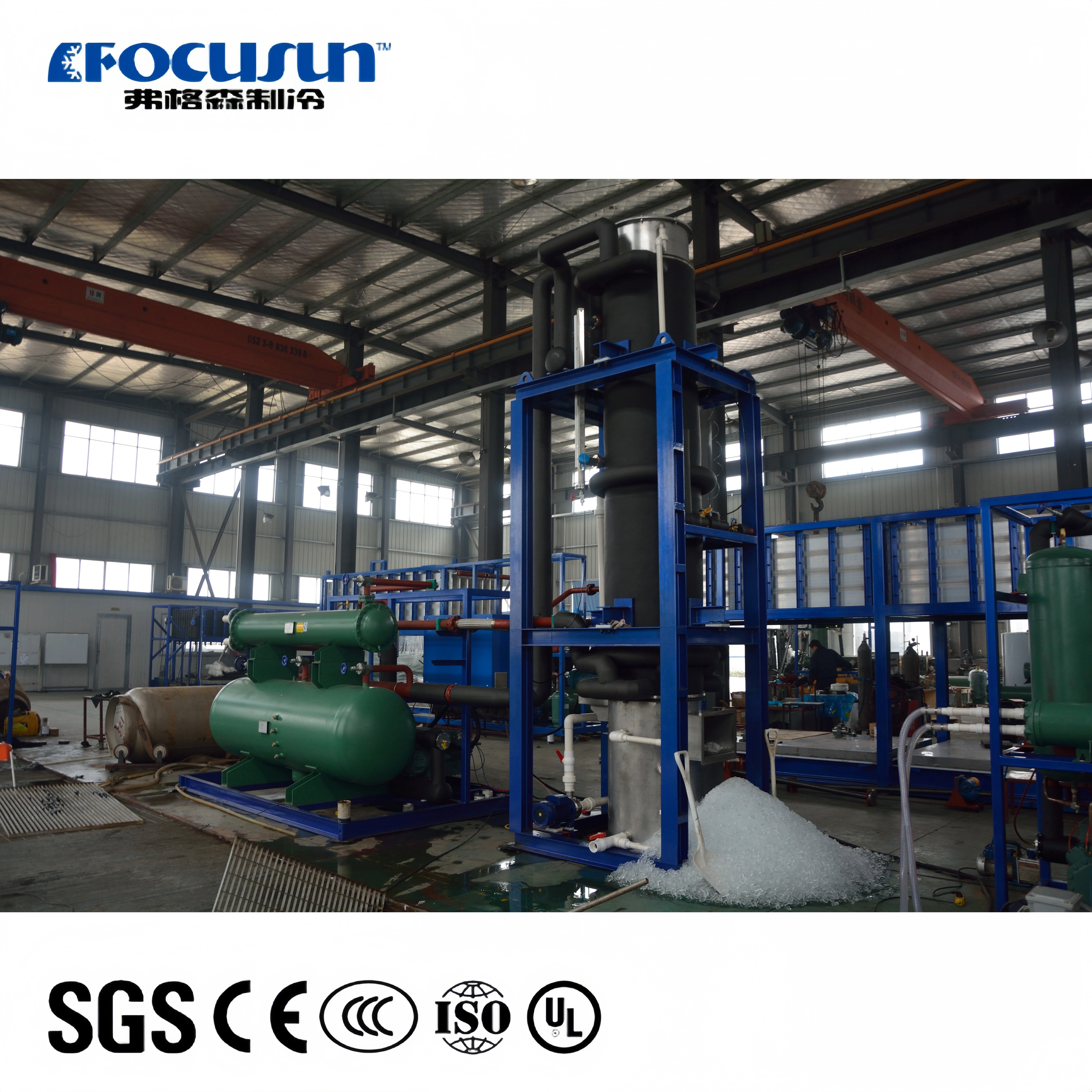

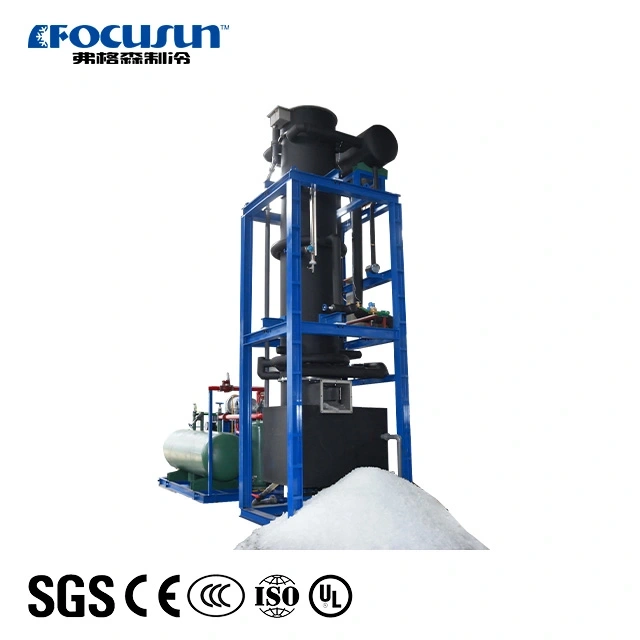

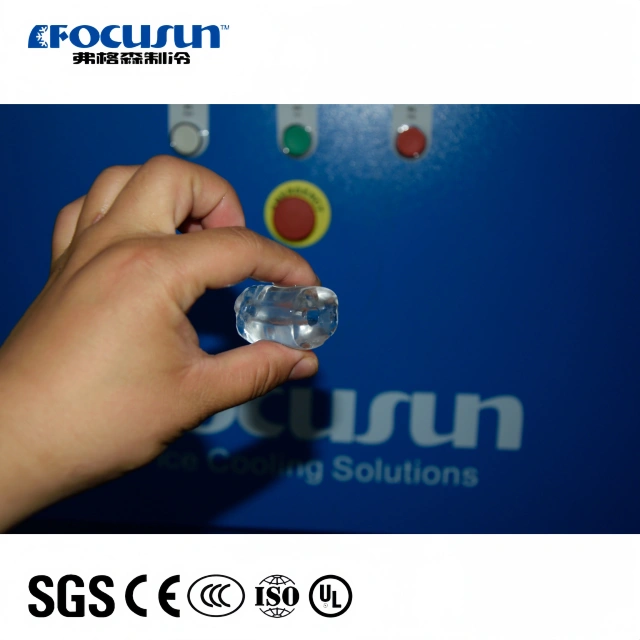

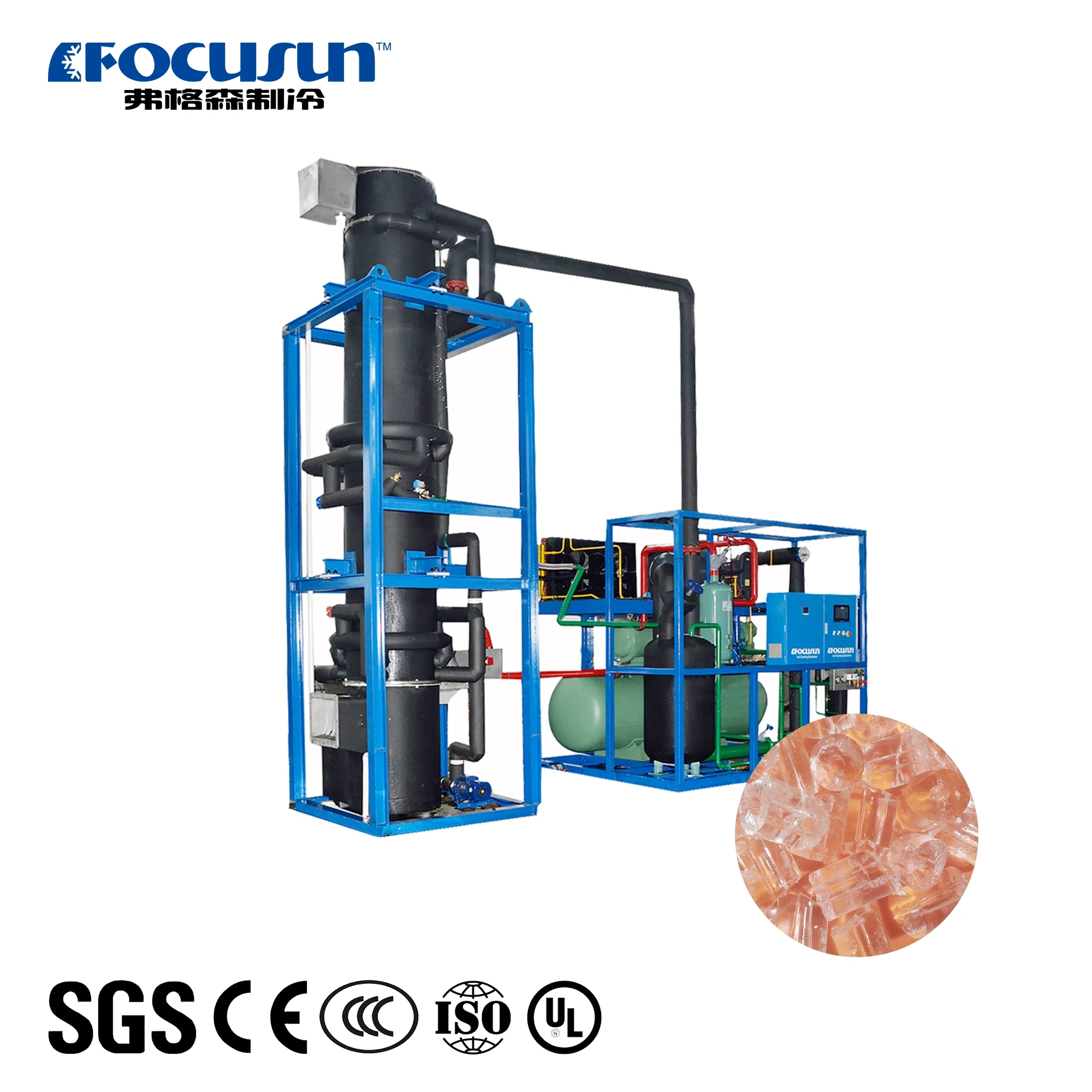

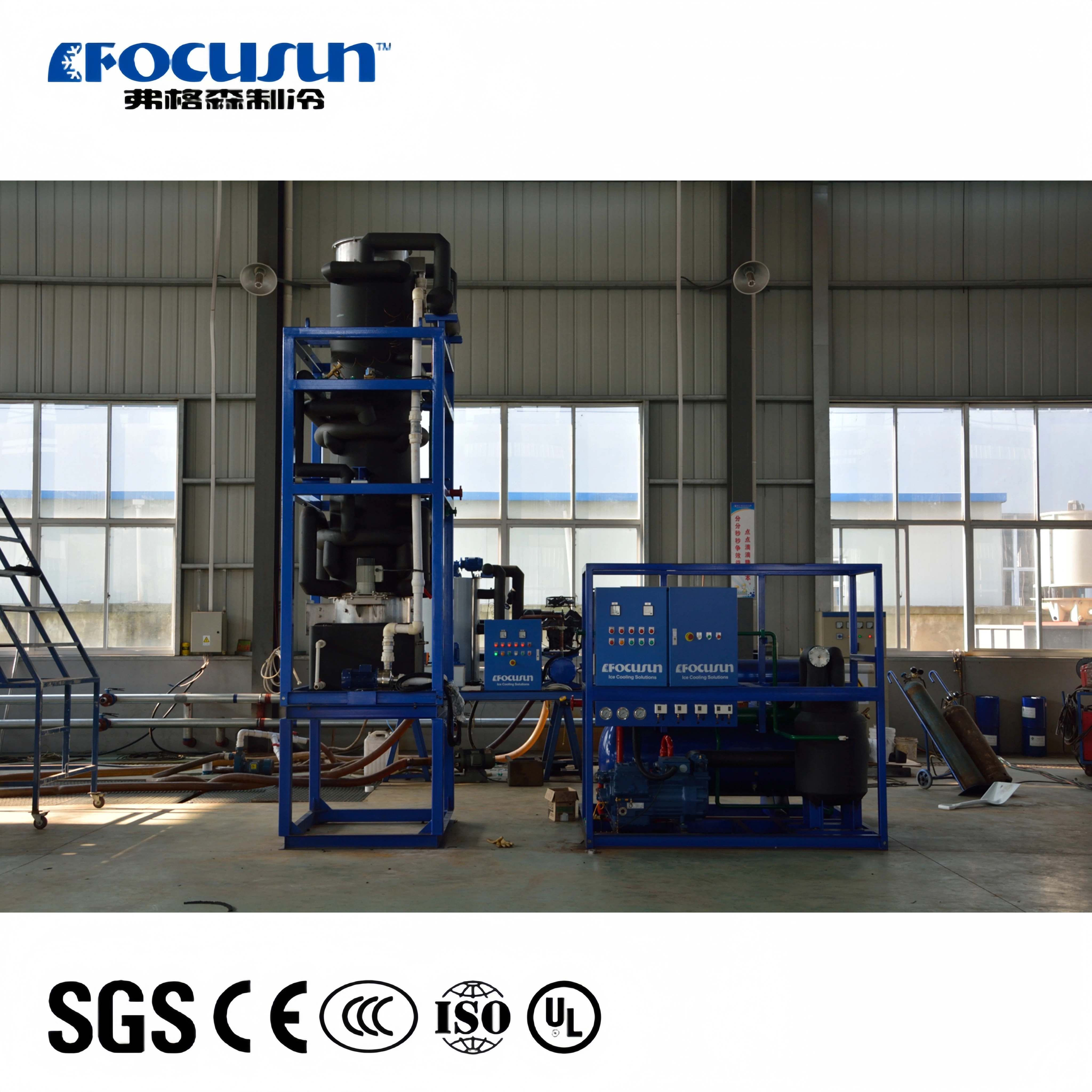

Focusun tube ice machine produces small, cylindrical ice tubes, ideal for cooling beverages, food, and medical products. Known for its high output and compact size, it’s perfect for commercial and industrial use, offering reliable performance and hygienic ice production.
The tube ice machine is a compact solution designed for high-volume ice production in small spaces. It efficiently freezes water into cylindrical ice tubes that are ideal for cooling beverages, seafood, and other perishable goods. Its space-saving design makes it suitable for businesses with limited floor area while still providing excellent ice output.
Built with durable materials, the machine ensures long-term reliability and can operate continuously, making it perfect for both small and large-scale operations. The ice produced is clear, hygienic, and slow to melt, making it ideal for applications that require consistent cooling performance.
Easy to operate and maintain, the tube ice machine requires minimal labor and ensures high efficiency. With automatic ice-making functions and low power consumption, it’s a cost-effective solution for businesses that rely on a steady ice supply.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | R22/R404A/R507A/R448A/R449A/R717 | ||
| Capacity | Kg/day | 20000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 68.5 |
| Installment power | Kw | 85 | |
| Operating power of cutter | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 2.2 | |
| Fan motor of cooling tower | Kw | 1.5 | |
| Operating power of cold water pump | Kw | 3.7 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 148.6 | |
| Operating power | Kw | 59.6 | |
| Compressor COP/EER | Kw/kw | 2.5 | |
| Horse power | Hp | 50×2 | |
| Cooling way | Water cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | Unit:2200×2000×1800 Evaporator:1350×1350×4600 |
| Size of cooling tower | (O.D. ×H)(mm) | φ2175×2565 | |
| Size of liquid pipe of cooling tower | 3/4" | ||
| Size of cooling water pipe | 2-1/2" | ||
| Size of waterinlet pipe of ice maker | 1" | ||
| Size of ice outlet | mm | 400×300 | |
| Weight of unit | Operating weight of tube ice maker | Kg | Unit:2260 Evaporator:3650 |
| Operating weight of cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1.5 | |
