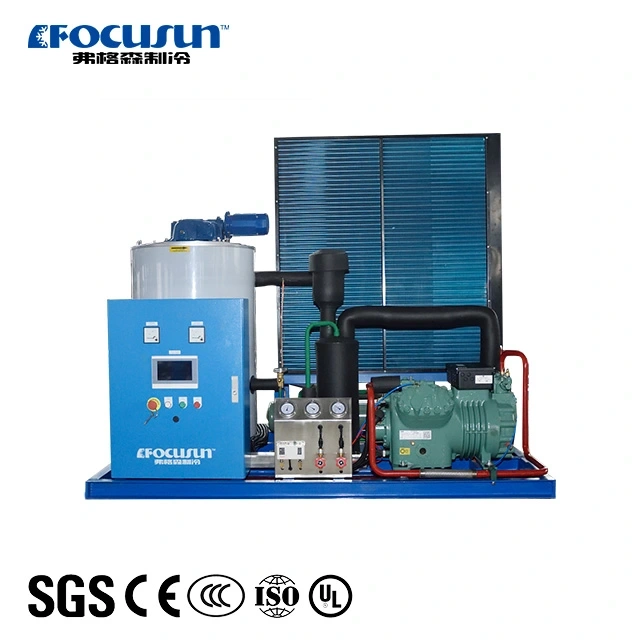

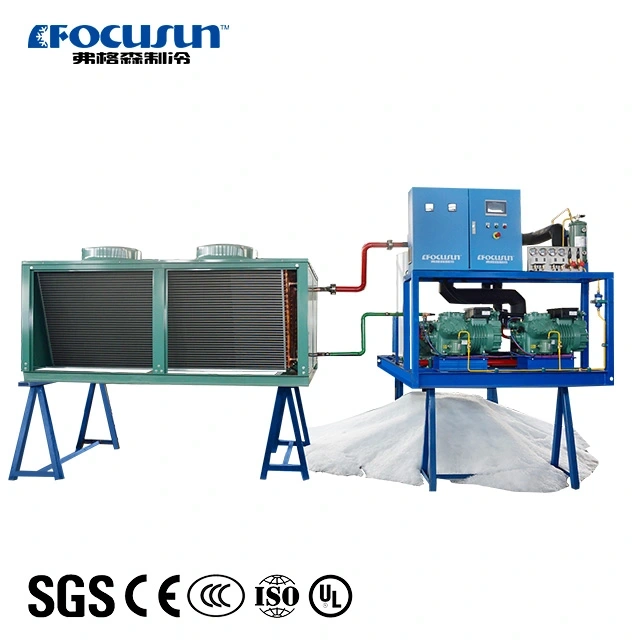

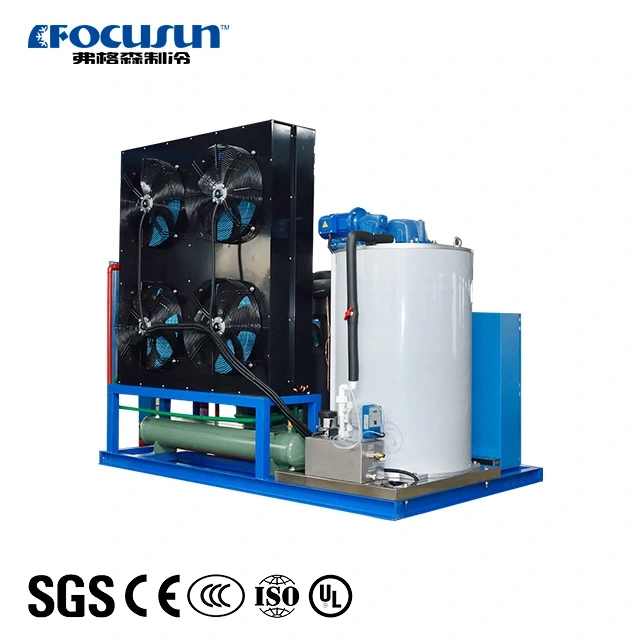

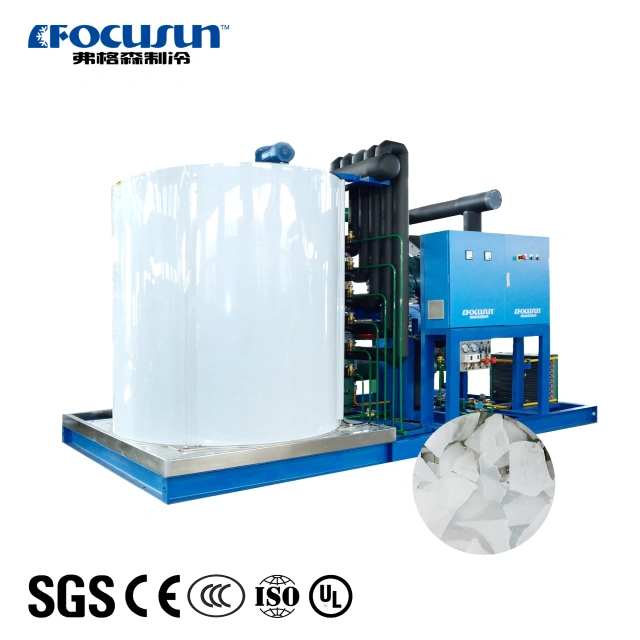

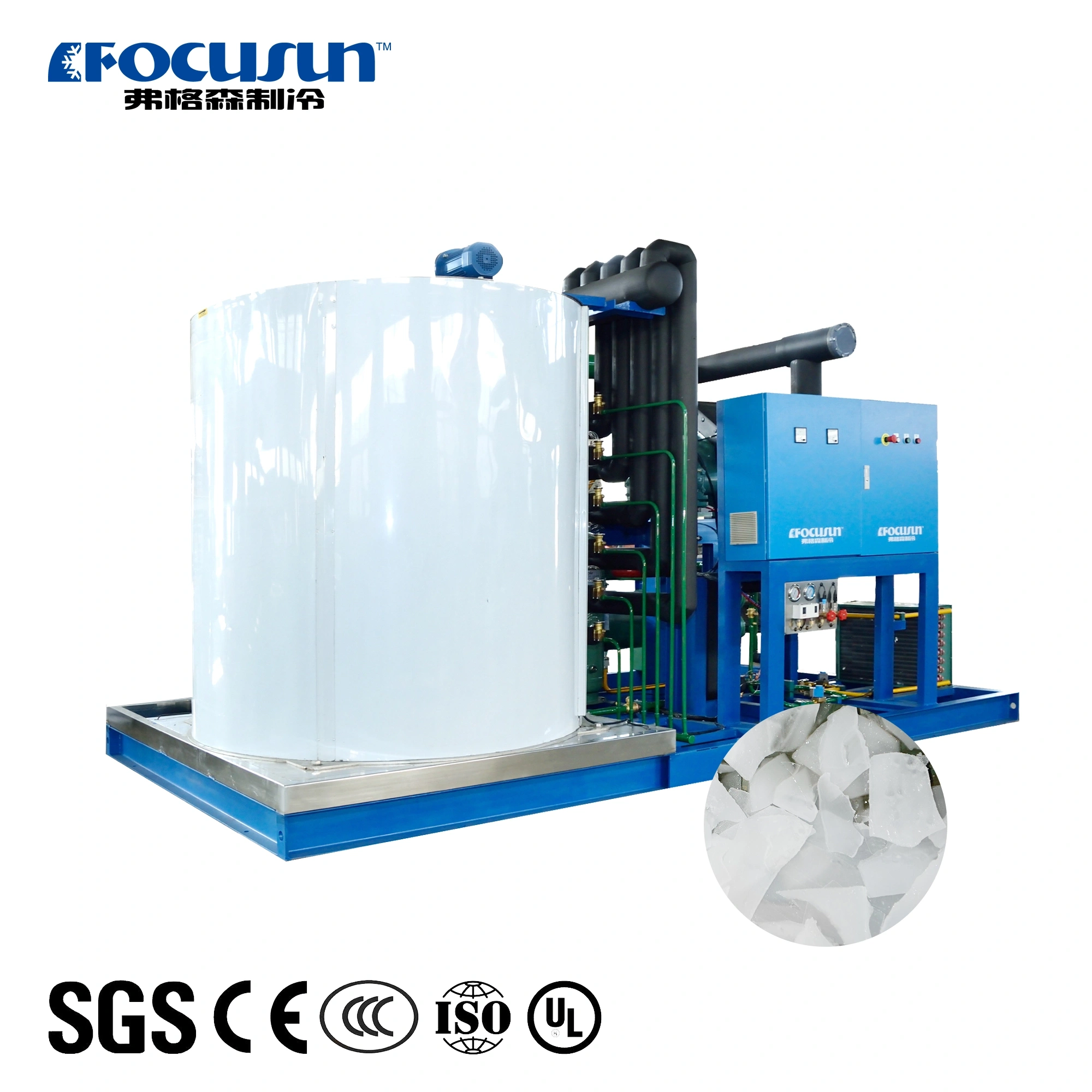

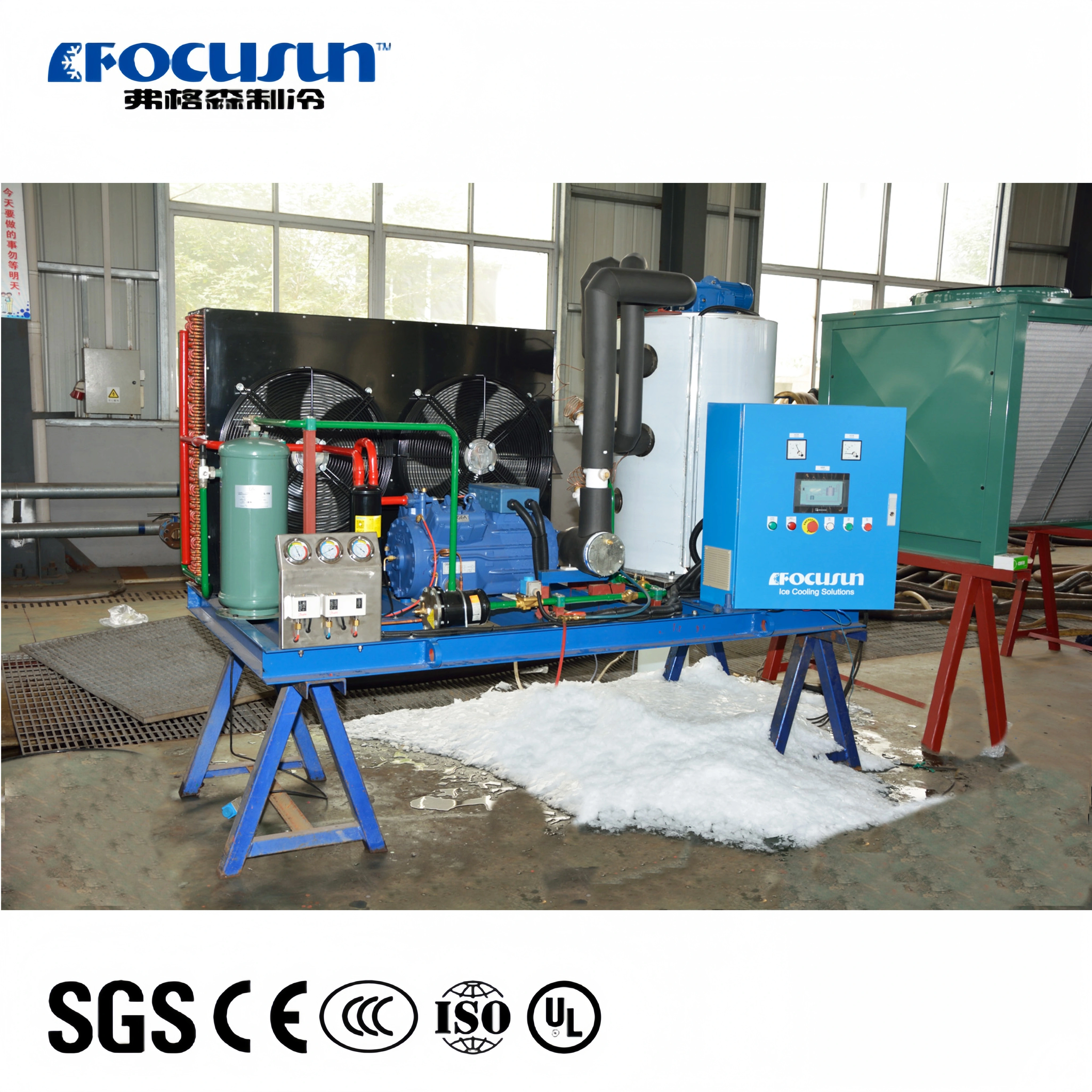

Our flake ice machine produces dry, soft, and uniform ice flakes, designed for fast cooling and preservation. Ideal for industries like seafood processing, food storage, and cold-chain logistics, it offers high efficiency with low energy consumption. The machine is reliable for continuous ice production, providing a steady supply of clean, dry ice flakes to meet the demands of various applications.
Key Features：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | kg/24h | 20000 | |
| Cooling Way | Water Cooling | ||
| Temperature | Ambient Temperature | ℃ | 35 |
| Water Temperature | ℃ | 20 | |
| Compressor | Manufacturer | Bitzer/Carrier | |
| Refrigeration Power | kw | 108 | |
| Operating Power | kw | 53.18 | |
| Compressor COP/EER | kw/kw | 2.03 | |
| Horse Power | hp | 30×3types | |
| Operating power | Total running power | kw | 68.4 |
| Installation Power | kw | 69.7 | |
| Power of Reducer | kw | 1.5 | |
| Power of Cold Water Pump | kw | 0.55 | |
| Cooling Water Pump | kw | 3.7 | |
| Fan of Cooling Tower | kw | 1.5 | |
| Dimension | Size of Ice Maker | L×W×H(mm) | 4200×2000×2914 |
| Size of Cooling Tower | L×W×H(mm) | Φ2175×2565 | |
| Size of Water Feeding Pipes of Cooling Tower | 6" | ||
| Size of Cooling Water Pipes | 3" | ||
| Size of Feeding Pipe | 6" | ||
| Size of Ice Outlet | mm | Φ1425 | |
| Weight | Weight of Flake Ice Maker | kg | 3600 |
| Operating Weight of Cooling Tower | kg | 1120 | |
| Water supply pressure requirement | bar | 1~6 | |
