Plate ice machines offer a space-saving solution for businesses with limited space but high ice demand. Their compact design and ability to produce thin ice sheets make them a great fit for restaurants, bars, and convenience stores that need reliable ice production in tight spaces.

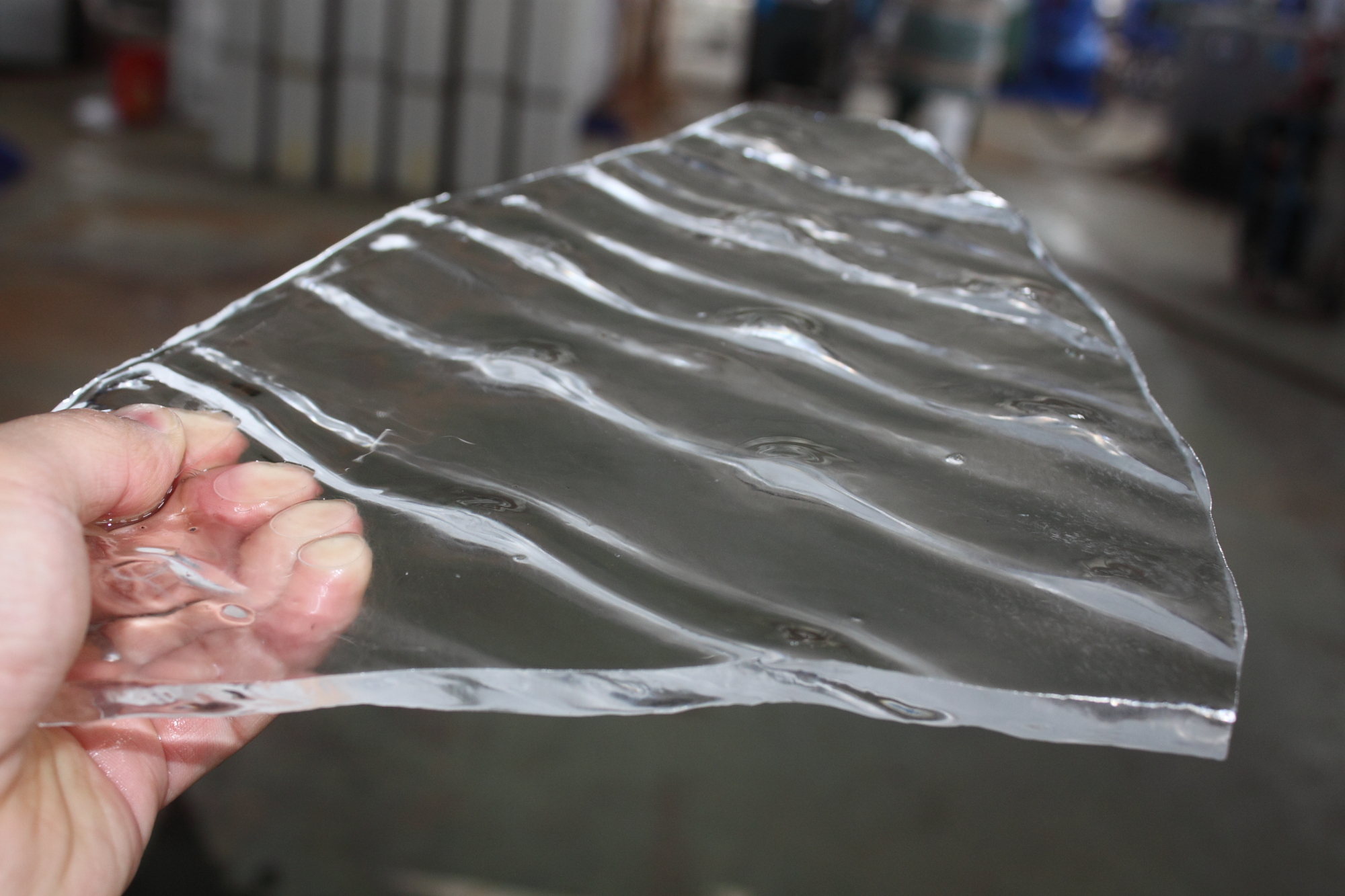

Plate ice machines are designed for high-performance in industrial settings, where large quantities of ice are needed quickly. These machines produce thin, continuous sheets of ice that can be easily broken and used in a variety of cooling applications, including for industrial cooling, concrete mixing, and temperature-sensitive manufacturing processes. The ice sheets produced are flexible and can be adapted to many different cooling needs.
Built for durability and long-term operation, plate ice machines feature robust, high-quality components that can handle the demands of large-scale operations. With minimal downtime and low maintenance requirements, these machines are ideal for industries that need a reliable ice solution for heavy-duty applications. Their energy-efficient operation ensures cost savings while maintaining high output.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 16000 | |
| Cooling way | Water Cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Cooling water pump | Kw | 1.5 |
| Warm water pump | Kw | 0.75 | |
| lce cutter | Kw | 1.5 | |
| Cooling tower fan | Kw | 1.5 | |
| Cooling water pump | Kw | 3.7 | |
| Total running power | Kw | 56.35 | |
| Installment power | Kw | 70 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 97.6 | |
| Operating power | Kw | 47.4 | |
| Compressor COP/EER | Kw/Kw | 2.06 | |
| Horse power | Hp | 40x2sets | |
| Type of compressor | Semi-hermetic screw | ||
| Dimension | Size of machine unit | L×W×H(mm) | 1750x1250x1800 |
| Number of evaporator | 1PC | ||
| Size of evaporator | L×W×H(mm) | 2200x2100x2200 | |
| Size of ice outlet | L×W(mm) | 1500x300 | |
| Size of cooling tower | O.D.×H(mm) | C2175×2565 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 3" | ||
| Size of water feeding pipe | 3/4" | ||
| Operating weight | Unit | Kg | 1450 |
| Evaporator | Kg | 1760 | |
| Cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1 | |
