Name: 15 Tons/Day Tube Ice Machine
Brand: FOCUSUN REFRIGERATION
SKU: FIT-150
Availability: InStock
Rating: 5 (1 reviews)

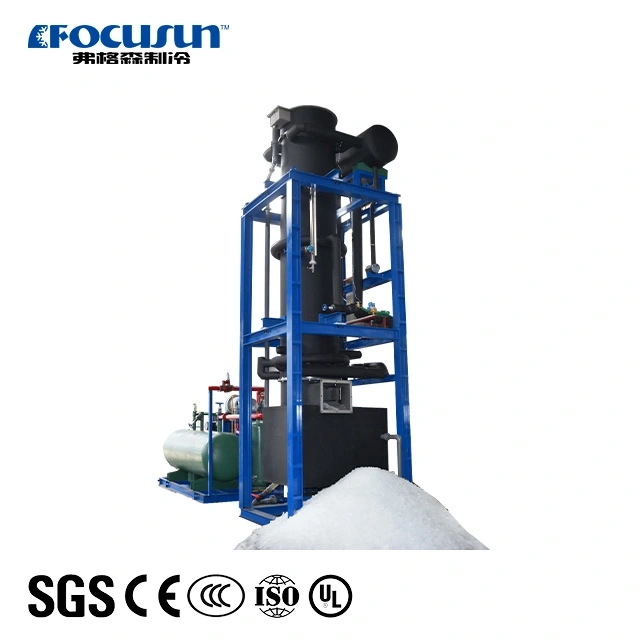

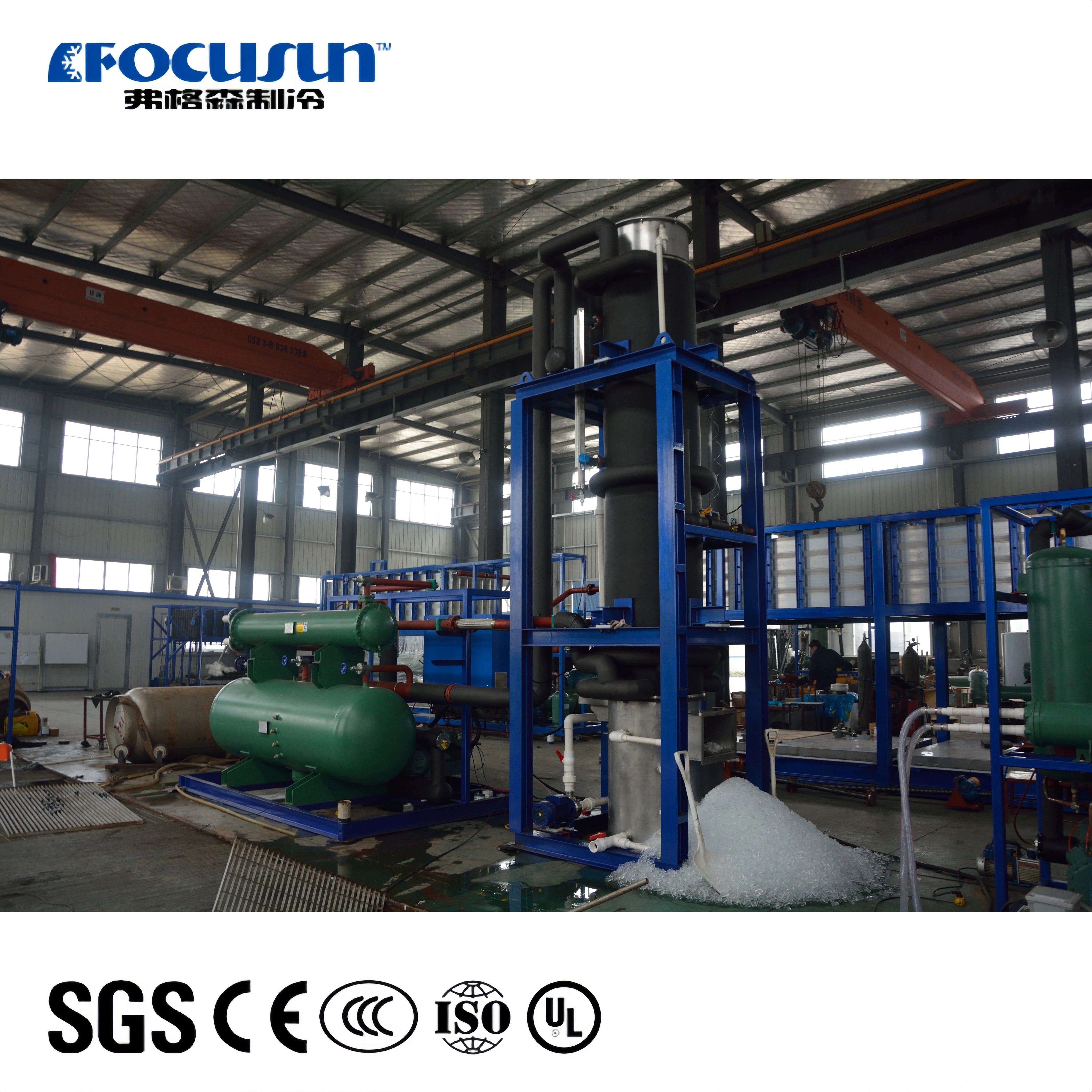

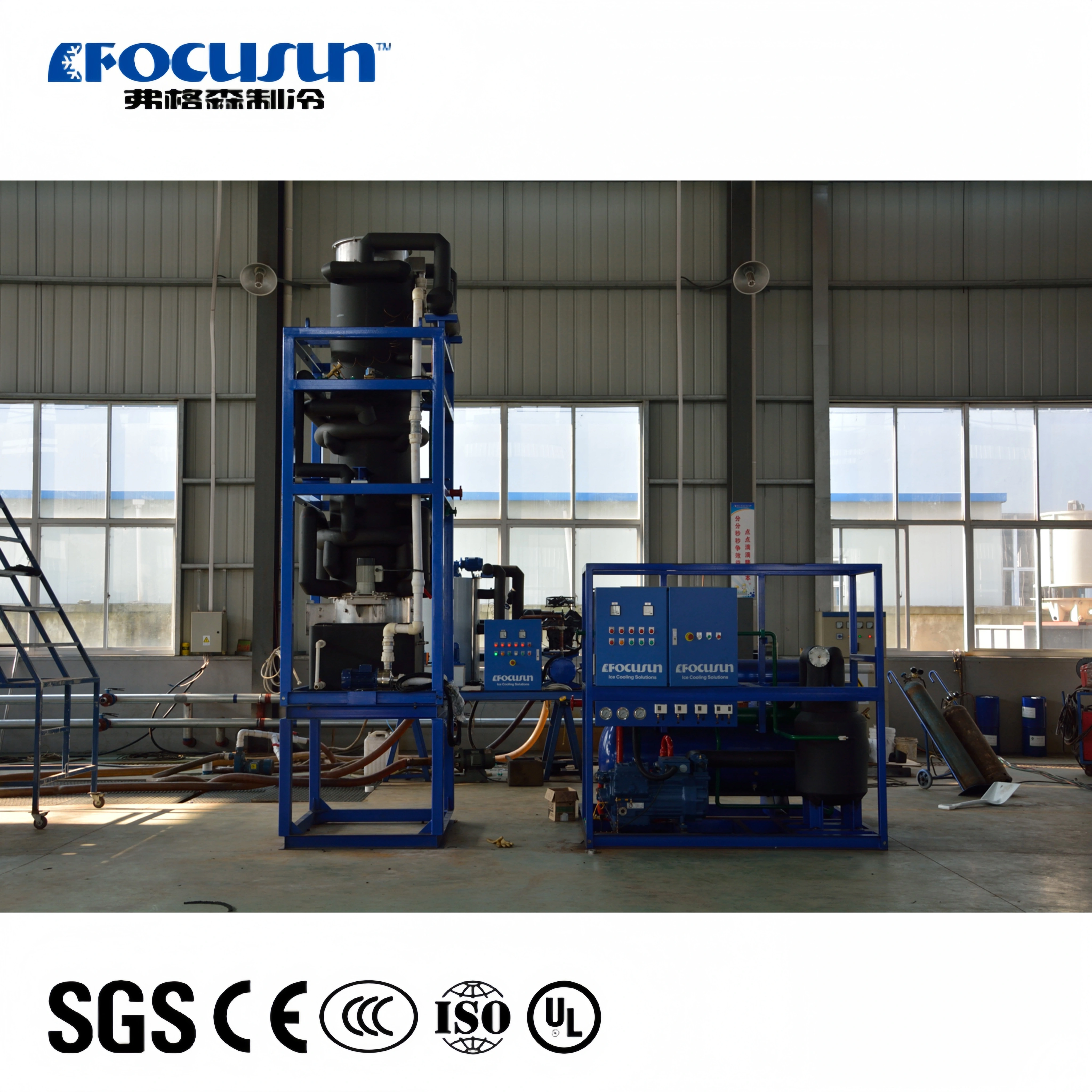

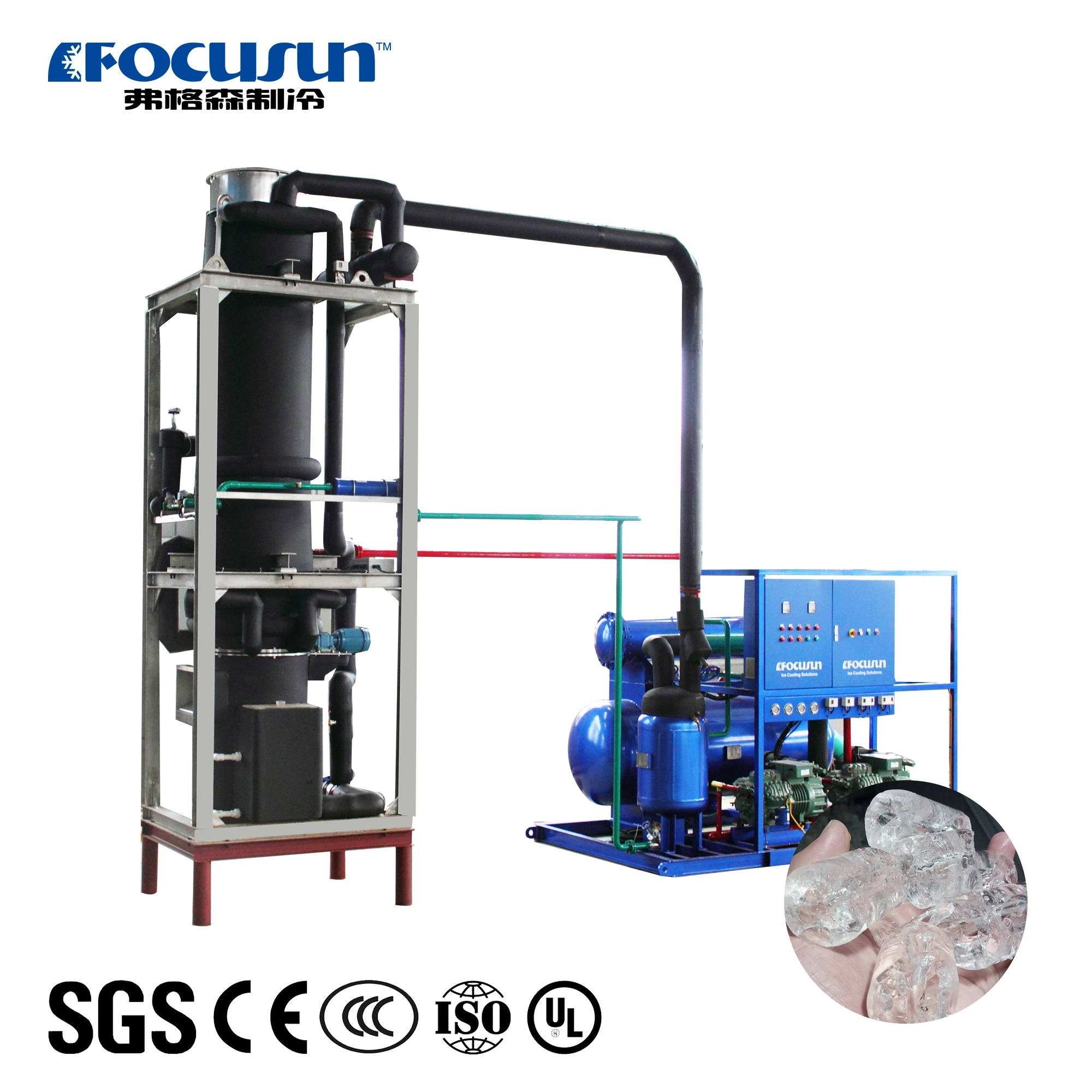

15 Tons/Day Tube Ice Machine

No.FIT-150

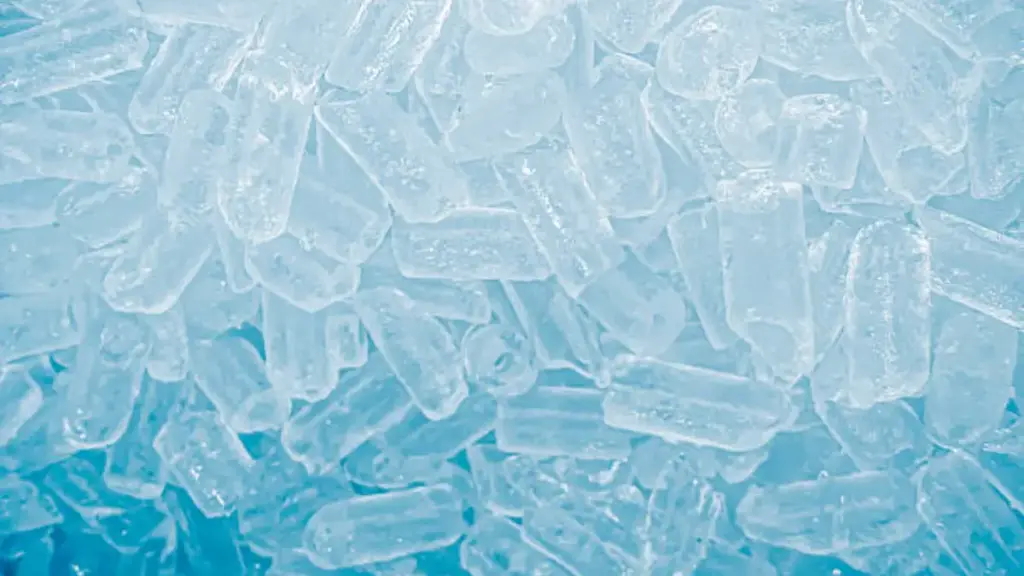

Focusun’s Tube ice machines produce ice in the form of hollow cylinders, which cool faster and more efficiently than other types of ice. They are perfect for industries like food processing, transportation, and retail, where rapid and consistent cooling is required.

Description

The tube ice machine uses advanced refrigeration technology to freeze water into hollow cylindrical ice tubes. This ice type has a high surface area, ensuring rapid cooling and effective heat absorption. With its energy-efficient design, the machine offers low power consumption while maintaining high output.

Perfect for industries such as seafood and food processing, the tube ice machine delivers clean, food-grade ice that’s ideal for preserving freshness during storage and transport. The ice is slow to melt, offering lasting cooling performance for long-duration applications.

Built for ease of use and low maintenance, the tube ice machine is highly automated, requiring minimal human intervention. This reduces operational costs and ensures continuous production, making it a great investment for businesses needing a reliable ice source.

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	220V~480V/3P/50~60Hz
Refrigerant			R22/R404A/R507A/R448A/R449A/R717
Capacity		Kg/day	15000
Temperature	Ambient temperature	℃	35
Temperature	Water inlet temperature	℃	20
Operating power	Total running power	Kw	48.4
	Installment power	Kw	60
	Operating power of cutter	Kw	1.1
	Operating power of cold water pump	Kw	1.5
	Fan motor of cooling tower	Kw	1.5
	Operating power of cold water pump	Kw	3.7
Compressor	Manufacturer		Bitzer
	Refrigeration capacity	Kw	109.4
	Operating power	Kw	40.6
	Compressor COP/EER	Kw/kw	2.7
	Horse power	Hp	35×2
	Cooling way		Water cooling
Dimension	Size of ice maker	(L×W×H)(mm)	Unit:2000×1800×1600 Evaporator:1250×1250×4200
	Size of cooling tower	(O.D. ×H)(mm)	φ2175×2565
	Size of liquid pipe of cooling tower		3/4"
	Size of cooling water pipe		2-1/2"
	Size of waterinlet pipe of ice maker		1"
	Size of ice outlet	mm	400×300
Weight of unit	Operating weight of tube ice maker	Kg	Unit:1890 Evaporator:2685
Weight of unit	Operating weight of cooling tower	Kg	1120
Water supply pressure requirement		Bar	1.5

Product Details

Evaporator

The evaporator is made from special alloy materials and enhanced through a proprietary heat treatment process to ensure optimal thermal efficiency. Strict manufacturing standards and thorough quality inspections make it compatible with both Freon and ammonia refrigeration systems.

Bitzer compressor

We use world-famous Bitzer compressors as the core of our ice machines.
Custom options like GEA, CARRIER, COPELAND, and REFCOMP are also available.
Your needs, our priority — Focusun delivers.

Touch Screen Controller

The touch screen makes the system easy to use, with a user-friendly interface for better monitoring and control.

Ice cutter

Throughout the production process, both water and ice come into contact only with food-grade materials, ensuring the ice remains clean and safe. The ice produced has a clear, aesthetically pleasing shape after cutting.

Ice Mold

Three ice sizes available: φ22mm, φ28mm, and φ35mm.
Made of SUS304 stainless steel and crafted through 19 advanced processing steps, the ice mold is highly durable—guaranteed not to deform or crack for up to 20 years.
