The direct cooling block ice machine uses aluminum ice molds and direct evaporator contact to freeze water efficiently. No brine tank is required, making the system cleaner, faster, and more energy-saving than traditional methods.

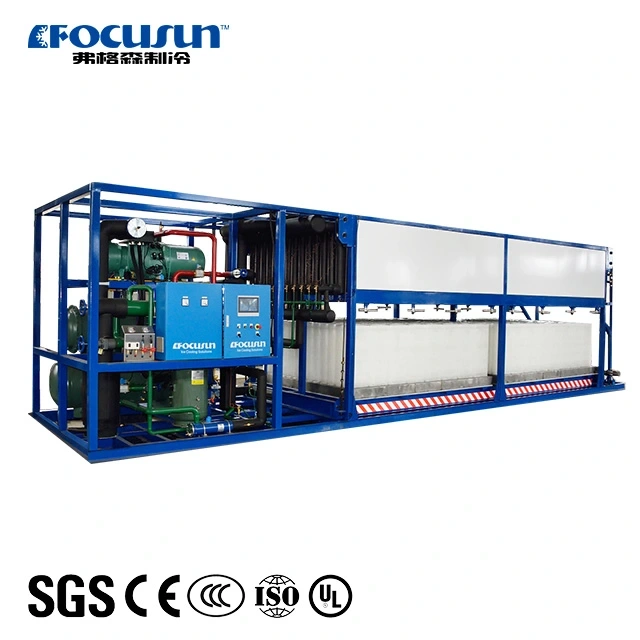

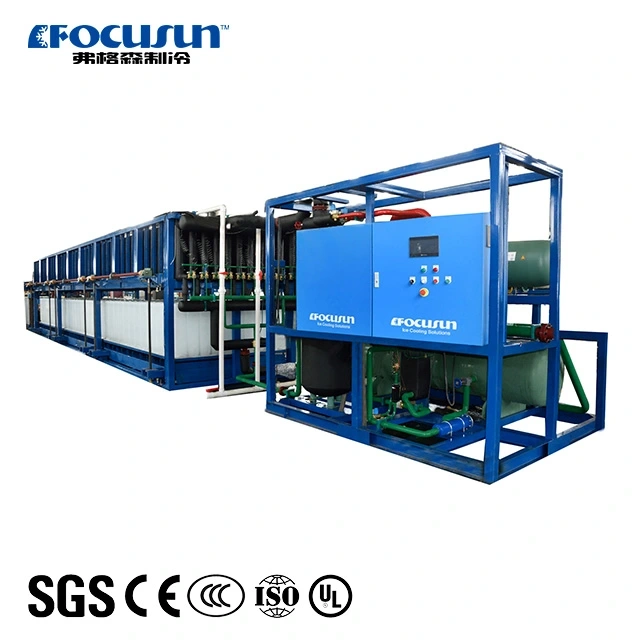

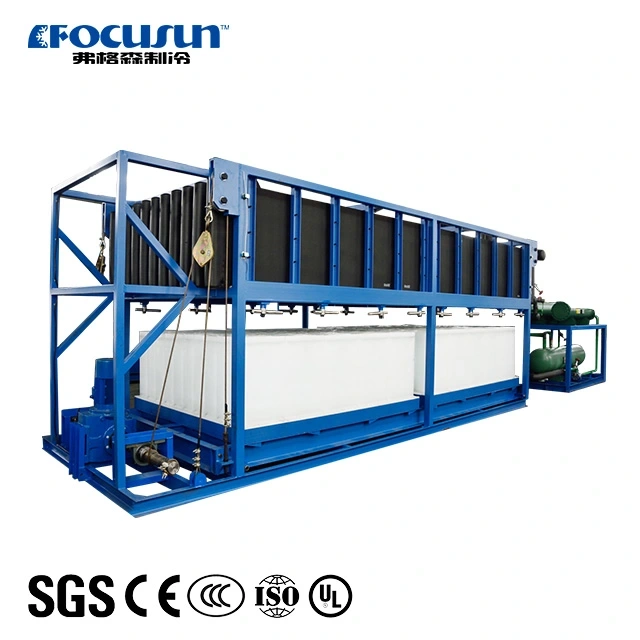

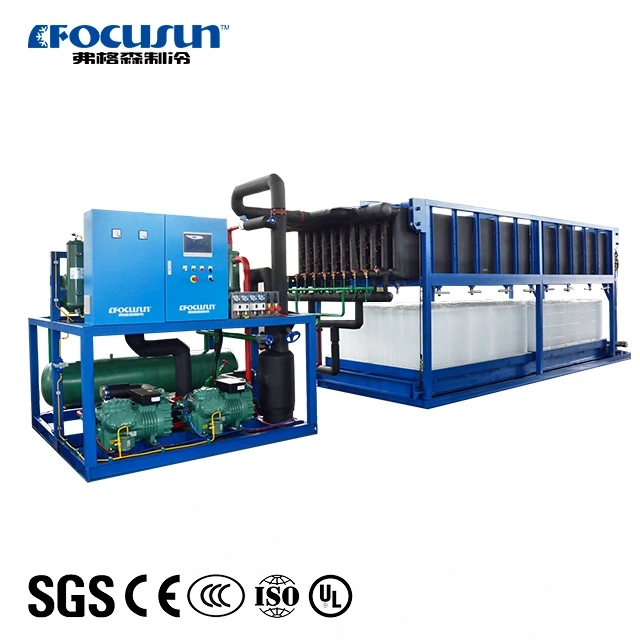

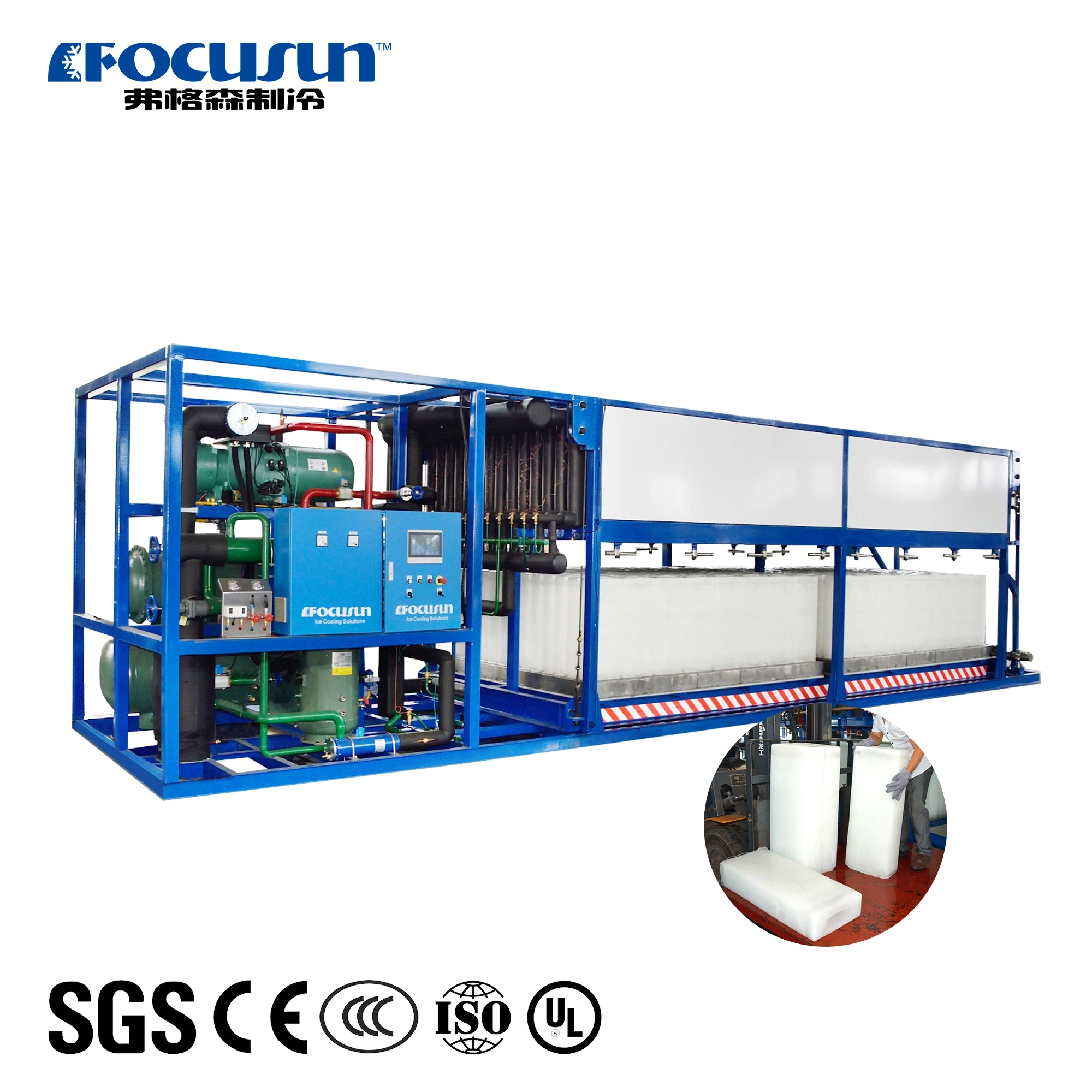

The direct cooling block ice machine is specialized equipment designed for producing block ice. Its evaporator is made of thermally conductive aluminum alloy, allowing the refrigerant to exchange heat directly with the water. This design enables rapid freezing at low temperatures, while the finished ice blocks melt more slowly. With a high level of automation, the machine performs ice making, water refilling, and ice release automatically, eliminating the need for manual operation. The ice produced is clean, hygienic, and meets food-grade standards.
Designed with long-lasting aluminum ice molds that require no replacement, the direct cooling block ice machine features a modular structure that is simple to operate and easy to maintain. It occupies minimal floor space and is convenient to install—users only need to connect water and electricity to begin producing ice.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | R22/R404A/R507A/R448A/R449A/R717 | ||
| Capacity | Kg/day | 15000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 59.15 |
| Installment power | Kw | 75 | |
| Cooling tower fan | Kw | 1.5 | |
| Cooling water pump | Kw | 5.5 | |
| Operating power of cold water pump | Kw | 0.75 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 118.2 | |
| Operating power | Kw | 51.4 | |
| Compressor COP/EER | Kw/kw | 2.3 | |
| Horse power | Hp | 40×2sets | |
| Working time | Ice making time | h | 7.5 |
| ce falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of unit modular | (L×W×H)(mm) | 2000×1200×1600 | |
| Number of evaporator | 3 PC | ||
| Size of evaporator modular | (L×W×H)(mm) | 4800×1000×2200 | |
| Size of cooling tower | (O.D. ×H)(mm) | φ2175×2565 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 4" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 2160 |
| Evaporator | Kg | 2860 | |
| Cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1 | |
