Designed for large-scale ice production, the brine system block ice machine uses a brine solution to freeze water in molds, ensuring quick ice formation. This system is perfect for industries that require bulk ice, offering superior performance and long-term reliability.
The brine system block ice machine utilizes a brine-filled cooling chamber to freeze water into block ice. The brine solution effectively absorbs and transfers heat from the water, freezing it rapidly while maintaining a consistent and uniform ice quality. This technology allows for faster ice production compared to traditional methods.
This machine is ideal for industries that need reliable, bulk ice production such as seafood storage, ice distribution, and event management. Its energy-efficient design and automated operations reduce labor costs and enhance production efficiency, making it a smart investment for long-term use.

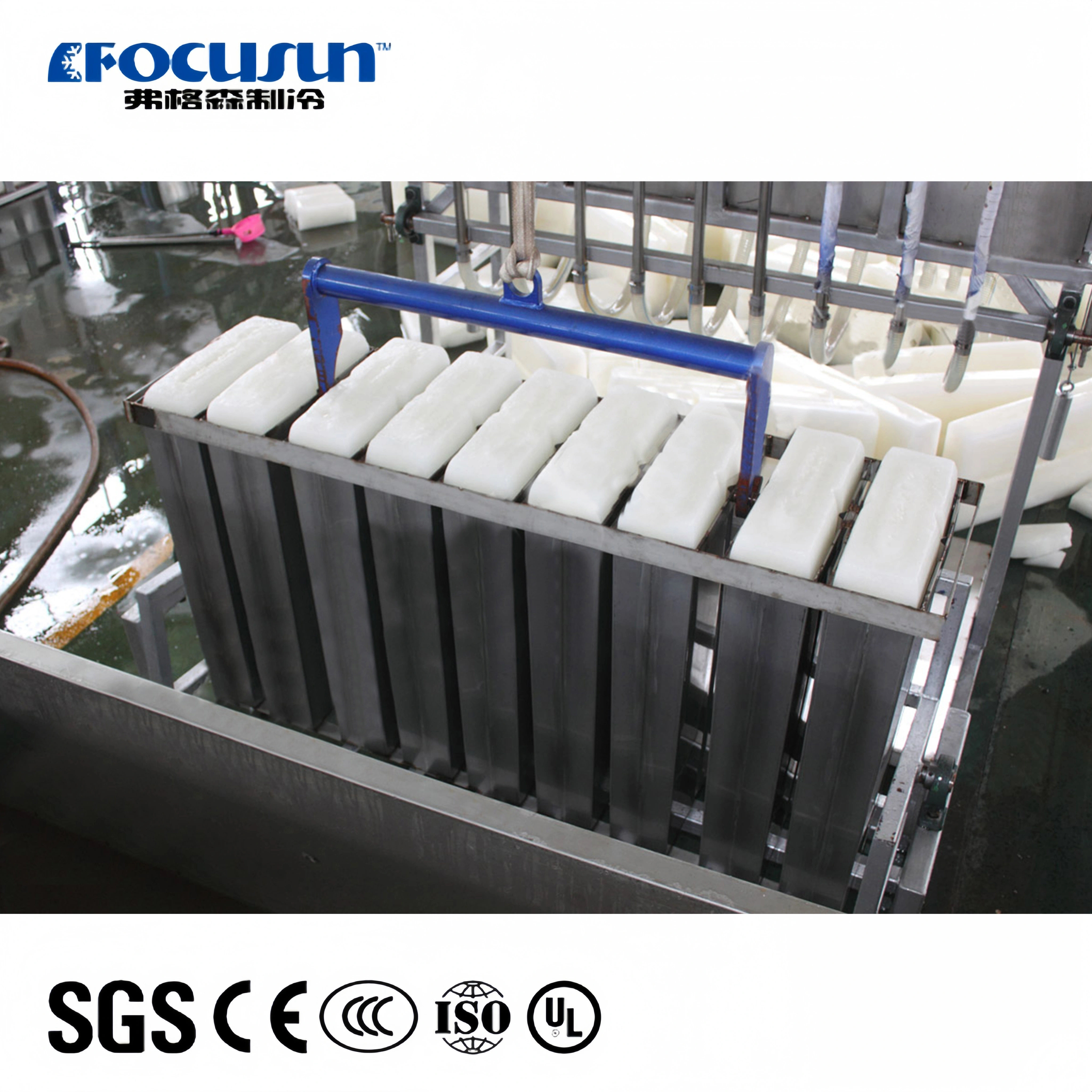

In addition, the ice molds used in brine-type block ice machines are quite unique. To facilitate the quick release of ice blocks after the freezing process, the molds are typically designed in a tapered shape—wider at the top and narrower at the bottom.
There are two main materials available for the ice molds:
Equipping your ice factory with a cold storage room is essential. Once the ice blocks are produced, they are typically transported to the cold room for proper storage.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 15000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 60.6 |
| Installment power | Kw | 75 | |
| Operating power of cold water pump | Kw | 5.5 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 118.2 | |
| Operating power | Kw | 51.4 | |
| Compressor COP/EER | Kw/kw | 2.3 | |
| Horse power | Hp | 40×2 | |
| Condenser | Power | Kw | 7 |
| Cooling way | Water cooling | ||
| Working time | Ice making time | h | 7.5 |
| Ice doffing time | h | 0.5 | |
| Dimension | Weight of each block | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of cooling tower | (L×W×H)(mm) | φ2175×2565mm | |
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight of cooling tower | Kg | 1120 | |
| Water supply pressure requirement | Bar | 1 | |
