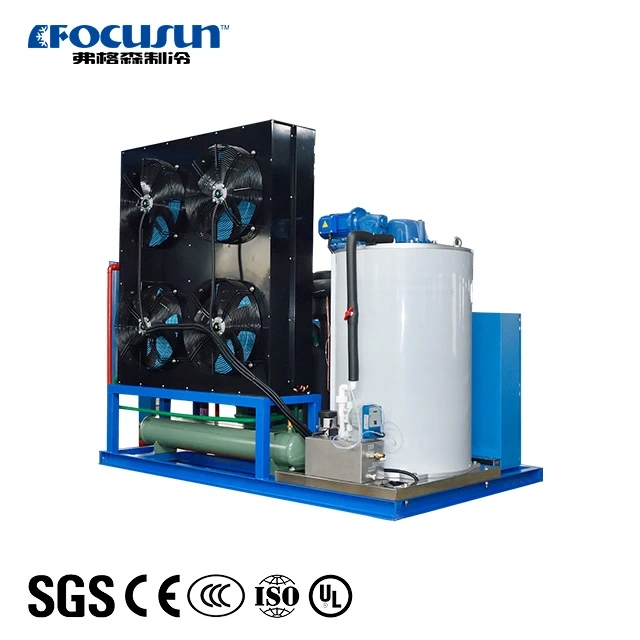

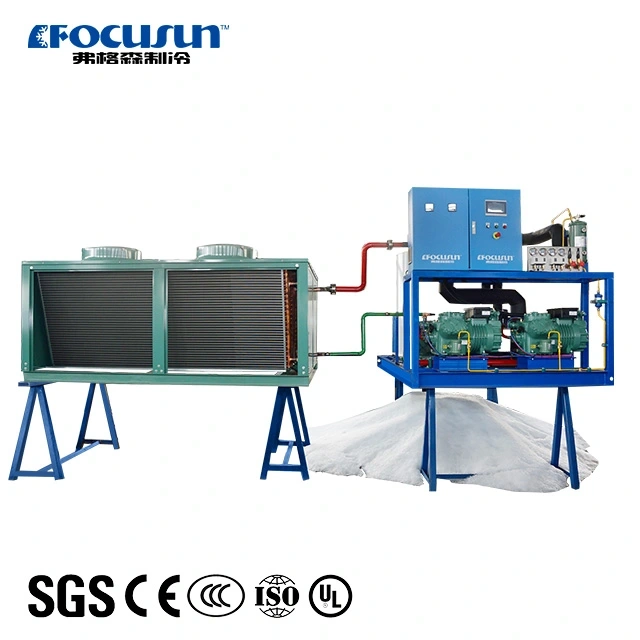

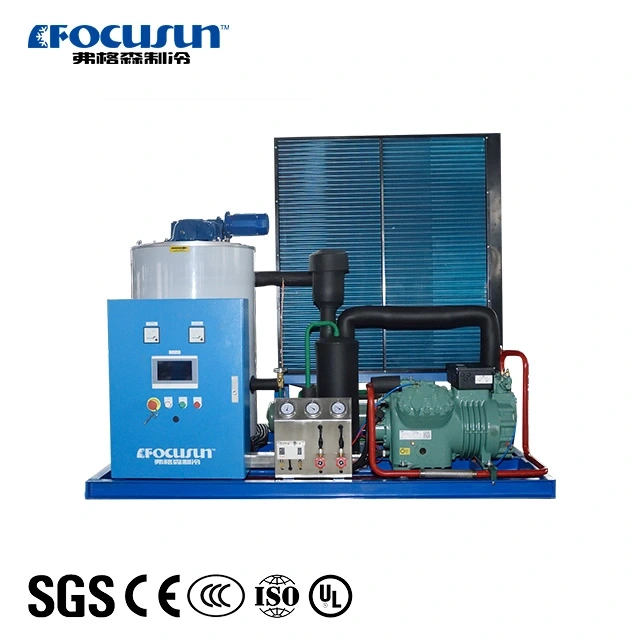

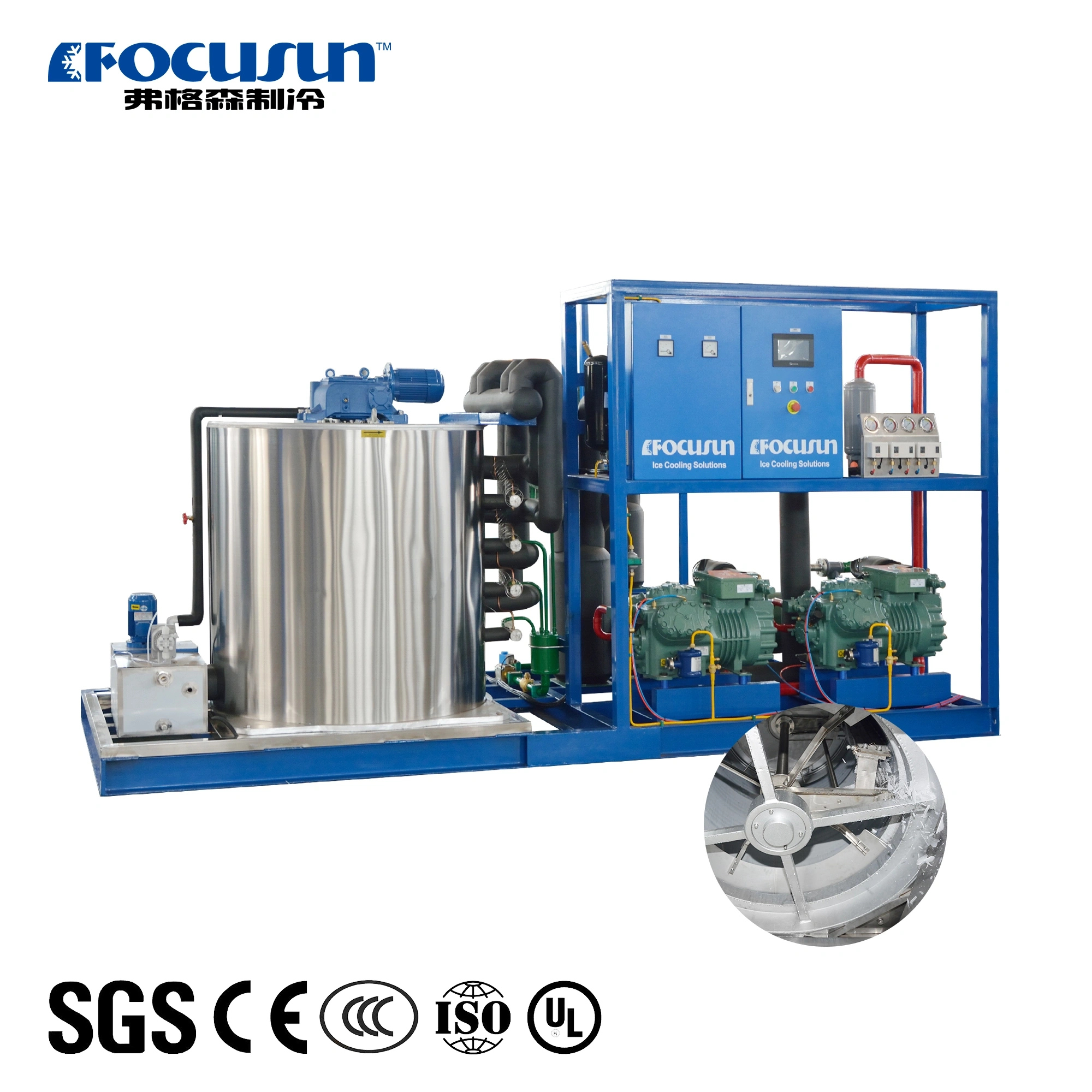

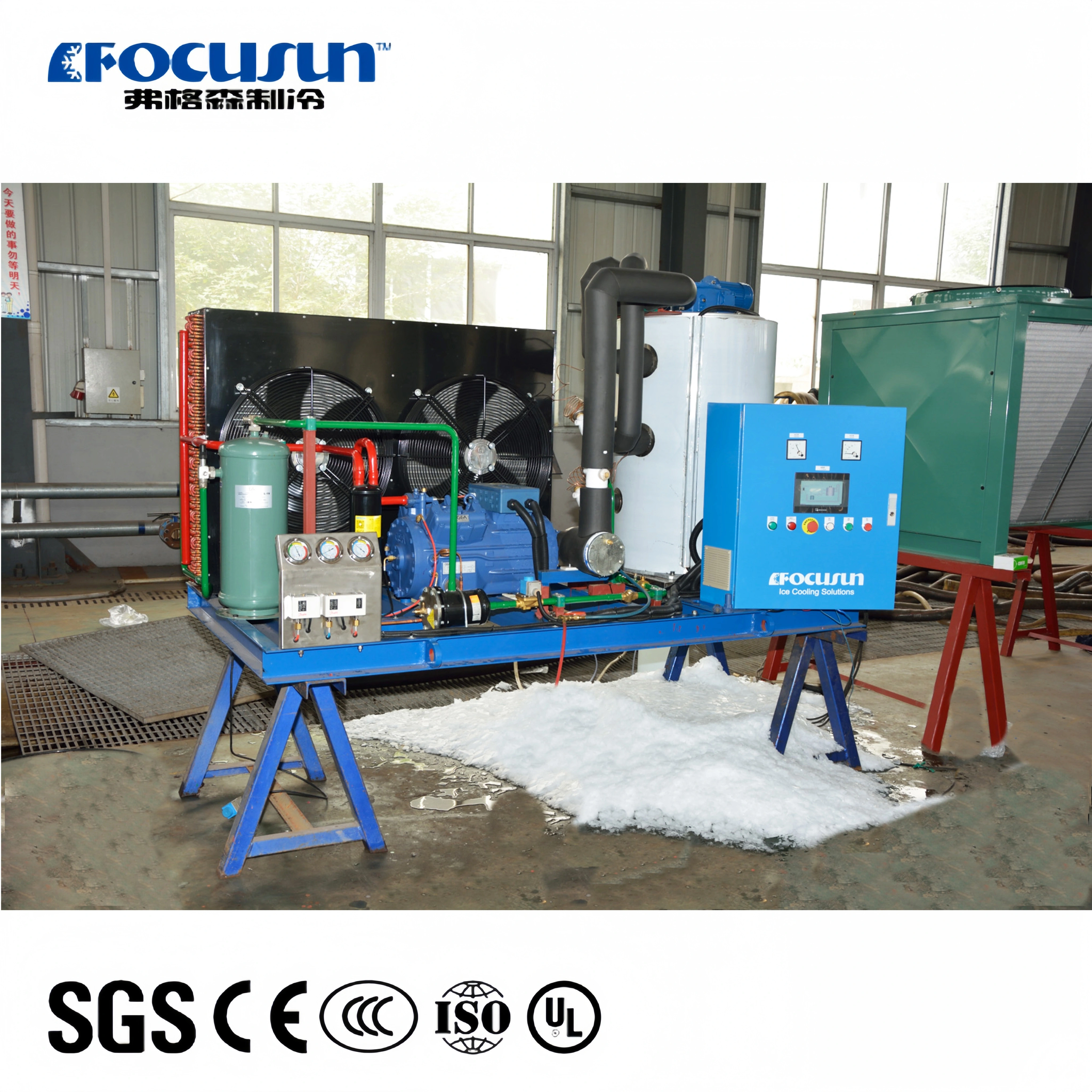

Name: 10 Tons/Day Fresh Water Flake Ice Machine
Brand: FOCUSUN REFRIGERATION
SKU: FIF-100
Availability: InStock
Rating: 5 (1 reviews)

10 Tons/Day Fresh Water Flake Ice Machine

No.FIF-100

The Focusun Freshwater Flake Ice Machine is perfect for preserving the freshness of seafood. The machine produces dry, soft ice flakes that surround products quickly, ensuring even cooling and extending shelf life. With its efficient performance and automated operation, it’s an essential tool for seafood processing, storage, and transportation.

Description

Ideal for a wide range of industrial applications, the Focusun Freshwater Flake Ice Machine delivers reliable, high-efficiency ice production. By utilizing top-grade stainless steel and cutting-edge ice-making technology, it creates thin, dry ice flakes with exceptional flowability, making it perfect for seafood preservation, food storage, and chemical cooling. The machine is highly customizable, with production capacities ranging from 1 to 60 tons per day and options for different ice flake sizes. Fully automated for ease of use and low maintenance, it’s a premium choice for any commercial or industrial ice-making need.

Key Features：

Dry and Loose Ice Flakes

Perfect for quick cooling and complete surface contact, improving freshness and efficiency.

Reliable Performance

Stable ice production with high efficiency—suitable for 24/7 continuous operation.

Food-Grade Materials

All ice-contact parts are made of SUS304 stainless steel, meeting international hygiene standards.

Energy Efficient & Easy Maintenance

Optimized design for low power consumption and easy servicing, even for non-technical users.

Automatic Control System

Equipped with PLC control, enabling fully automated ice making and harvesting processes.

Various Capacities Available

Daily capacity ranges from 500 kg to over 60 tons, adaptable to both commercial and industrial needs.

Widely exported to Southeast Asia, the Middle East, Africa, and South America, Focusun flake ice machines are trusted for their durability, hygiene, and performance.

Subject		Unit	Technical parameter
Power supply		Voltage/Phase/Frequency	220V~480V/3P/50~60Hz
Refrigerant		/	R22/R404A/R507A/R448A/R449A/R717
Capacity		kg/24h	10000
Cooling Way			Water Cooling
Temperature	Ambient Temperature	℃	35
Temperature	Water Temperature	℃	20
Compressor	Manufacturer		Bitzer/Carrier
	Refrigeration Power	kw	60.6
	Operating Power	kw	30.36
	Compressor COP/EER	kw/kw	2
	Horse Power	hp	25×2types
Operating power	Total running power	kw	34.31
	Installation Power	kw	42
	Power of Reducer	kw	0.75
	Power of Cold Water Pump	kw	0.25
	Cooling Water Pump	kw	2.2
	Fan of Cooling Tower	kw	0.75
Dimension	Size of Ice Maker	L×W×H(mm)	3550×1550×2100
	Size of Cooling Tower	L×W×H(mm)	Φ1580×2205
	Size of Water Feeding Pipes of Cooling Tower		6"
	Size of Cooling Water Pipes		2.5"
	Size of Feeding Pipe		6"
	Size of Ice Outlet	mm	Φ922
Weight	Weight of Flake Ice Maker	kg	2200
Weight	Operating Weight of Cooling Tower	kg	540
Water supply pressure requirement		bar	1~6

Product Details

Evaporator

The evaporator is constructed from stainless steel, ensuring that ice forms directly on a clean, hygienic surface. This material not only guarantees the purity of the ice but also enhances the durability and longevity of the equipment.

Ice Scraper

The ice scraper is constructed from high-density, wear-resistant material, ensuring exceptional durability and consistent performance over long-term operation.

Its robust design minimizes wear and tear, enhances operational reliability, and contributes to stable, efficient ice production in even the most demanding industrial environments.

Evaporation Barrel

The evaporation barrel is made of high-quality stainless steel, offering excellent heat transfer, corrosion resistance, and durability. Its smooth inner surface ensures efficient ice formation and reliable performance.
