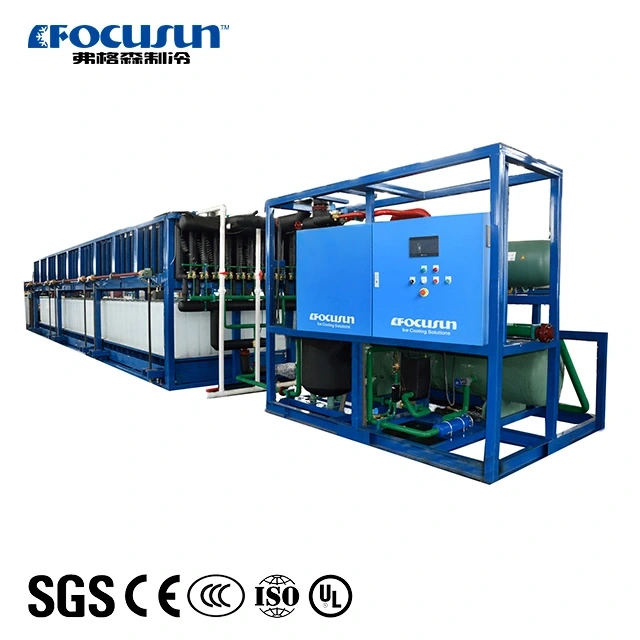

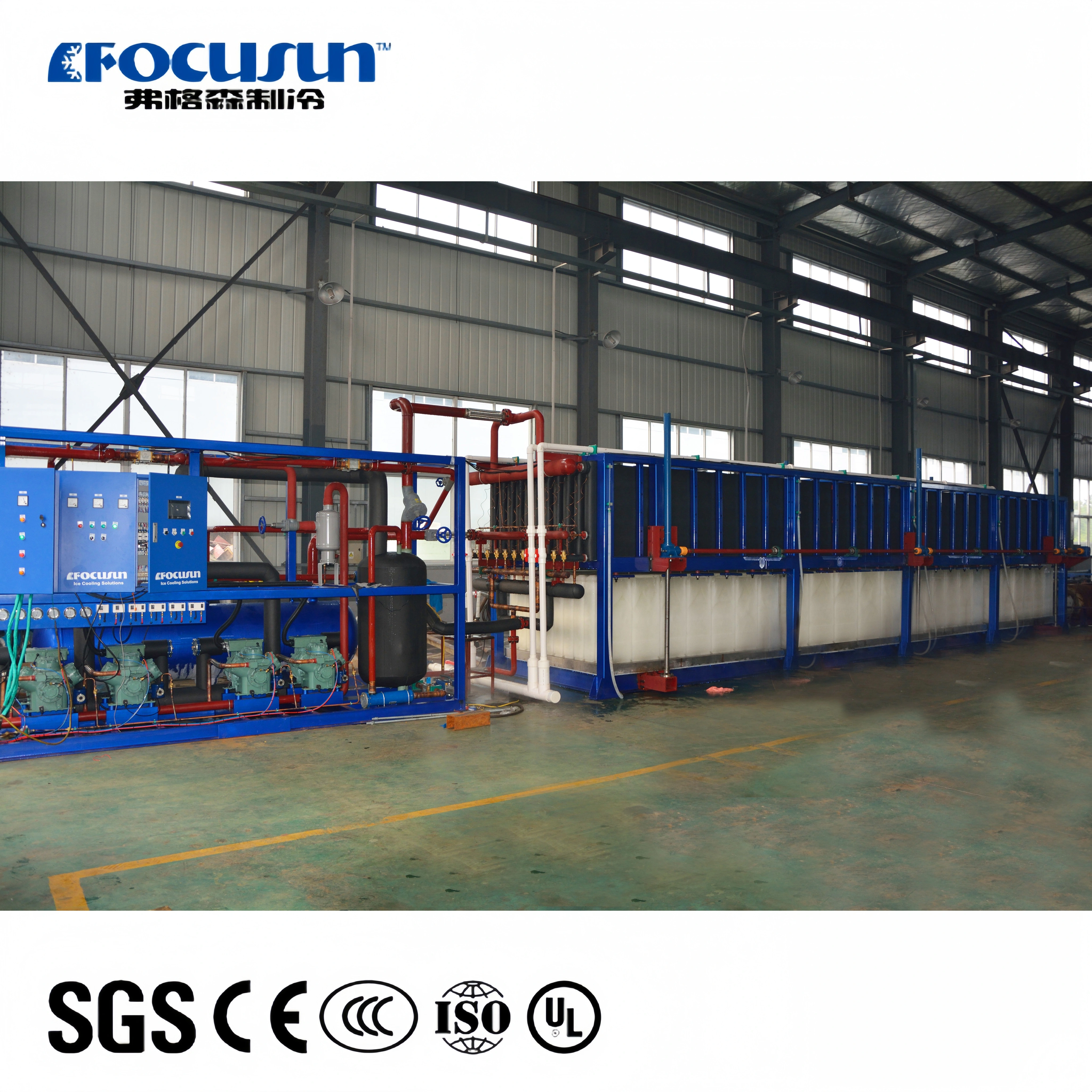

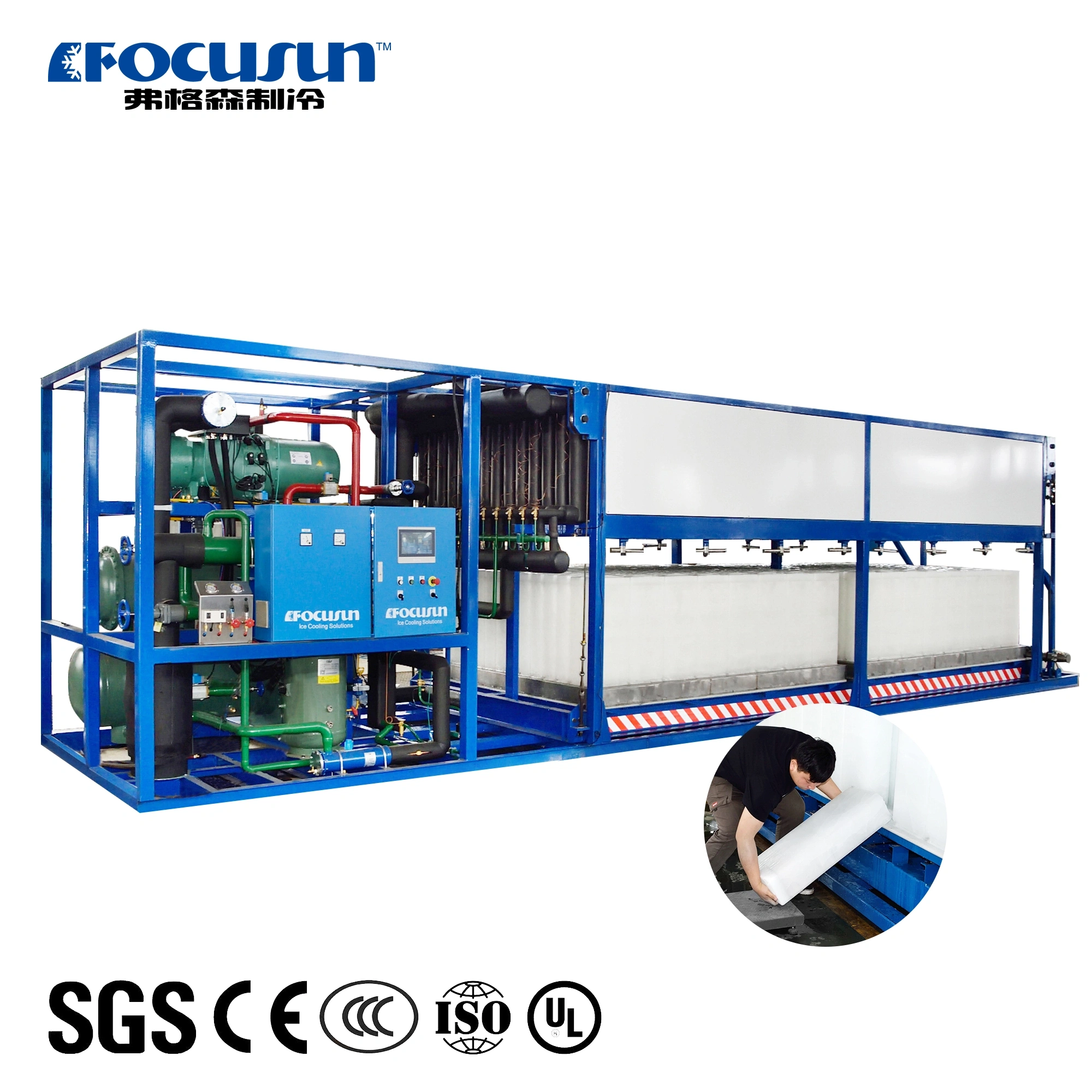

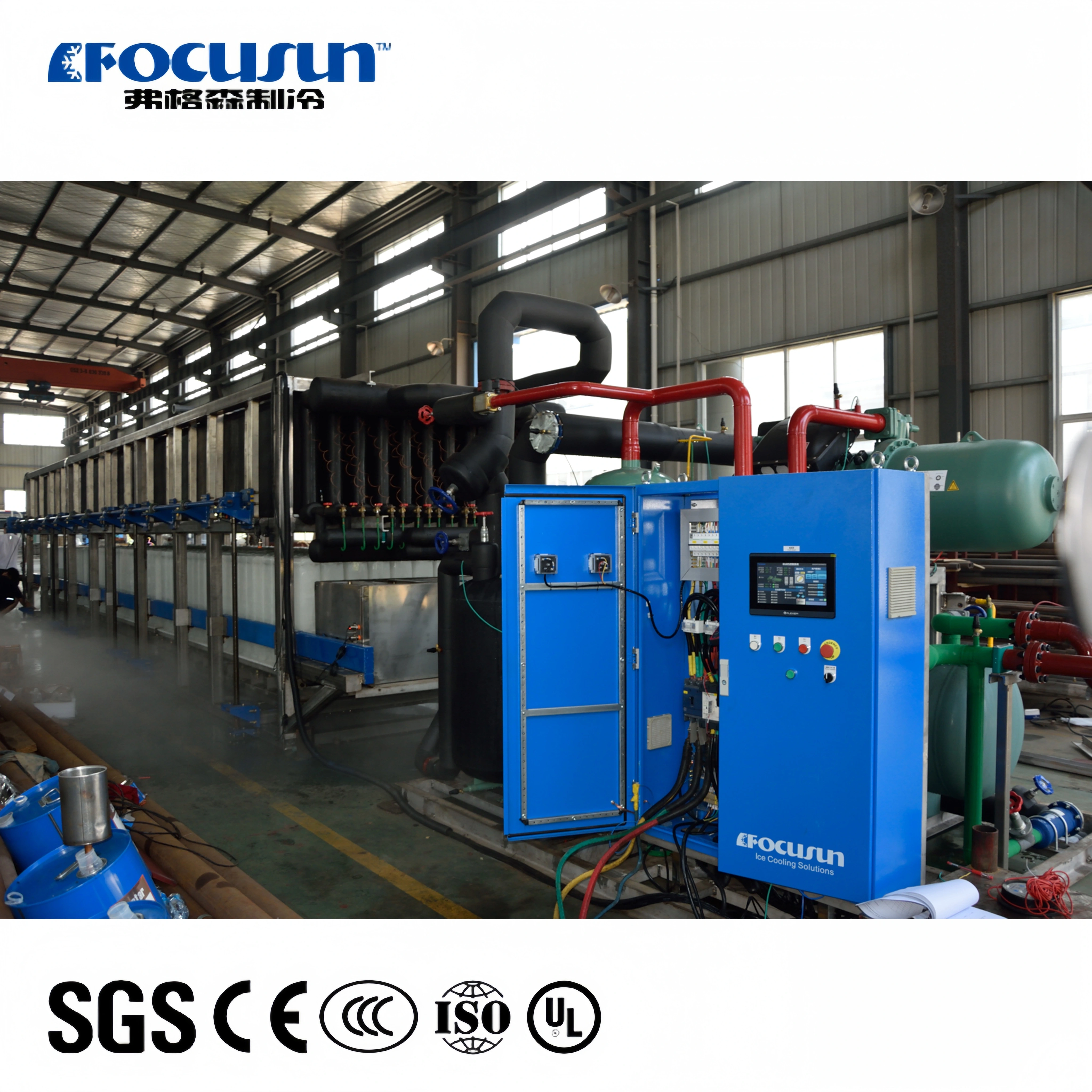

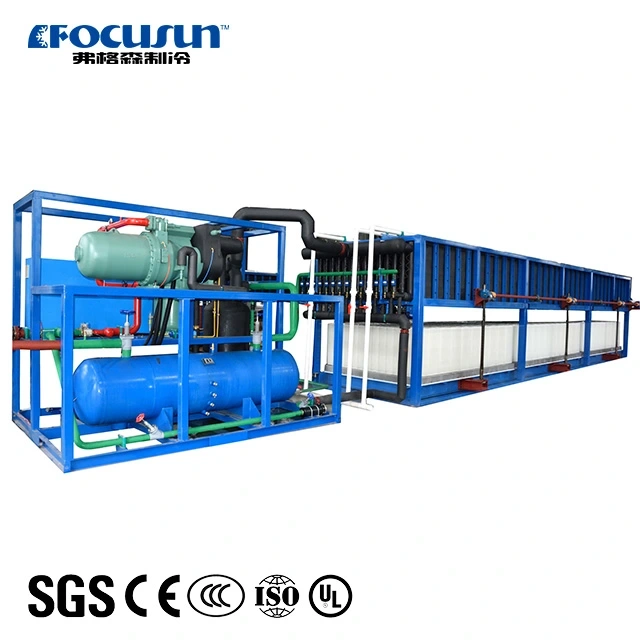

Designed for fisheries, markets, and ice distribution businesses, the direct cooling block ice machine provides clean and solid blocks with rapid production cycles. Easy operation and stable performance make it suitable for long-term, heavy-duty use.
The direct cooling block ice machine freezes water directly in aluminum molds, eliminating the need for brine. This design improves cooling efficiency, speeds up ice formation, and ensures clean, food-grade block ice. The ice is hard, clear, and melts slowly, making it ideal for seafood preservation, markets, and commercial ice sales.
With a compact, modular structure, the machine is easy to install and simple to operate. It features automatic ice making, water filling, and de-icing functions, reducing labor and improving reliability. Just connect water and electricity, and the machine is ready to produce high-quality block ice.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | R22/R404A/R507A/R448A/R449A/R717 | ||
| Capacity | Kg/day | 10000 | |
| Cooling way | Water cooling | ||
| Temperature | Ambient temperature | ℃ | 35 |
| Waterinlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 39.83 |
| Installment power | Kw | 50 | |
| Cooling tower fan | Kw | 1.1 | |
| Cooling water pump | Kw | 2.2 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 86.6 | |
| Operating power | Kw | 35.98 | |
| Compressor COP/EER | Kw/kw | 2.41 | |
| Horse power | Hp | 25×2sets | |
| Working time | Ice making time | h | 7.5 |
| ce falling off time | h | 0.5 | |
| Dimension | Weight of block ice | Kg/block | 50 |
| Size of block ice | (L×W×H)(mm) | 480×160×700 | |
| Size of unit modular | (L×W×H)(mm) | 1800×1000×1450 | |
| Number of evaporator | 2 PC | ||
| Size of evaporator modular | (L×W×H)(mm) | 4800×1000×2200 | |
| Size of cooling tower | (O.D. ×H)(mm) | φ2000×2410 | |
| Size of water feeding pipe of cooling tower | 3/4" | ||
| Size of cooling water pipes | 2-1/2" | ||
| Size of water feeding pipe | 1-1/4" | ||
| Operating weight | Unit | Kg | 1680 |
| Evaporator | Kg | 2860 | |
| Cooling tower | Kg | 670 | |
| Water supply pressure requirement | Bar | 1 | |
