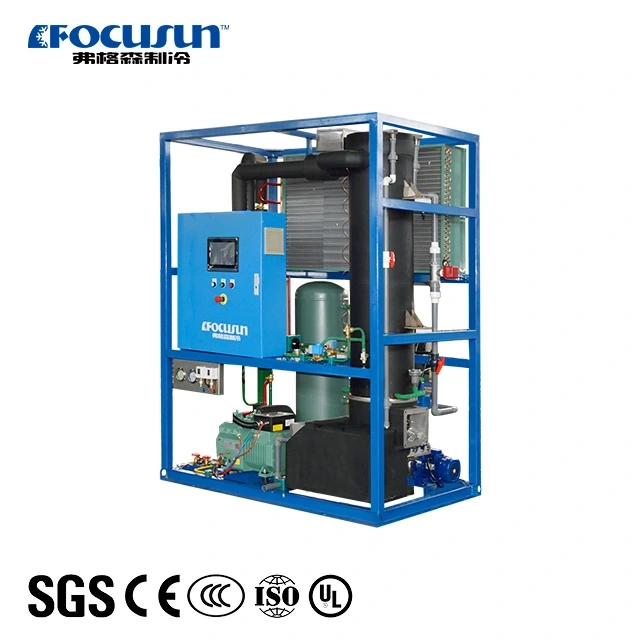

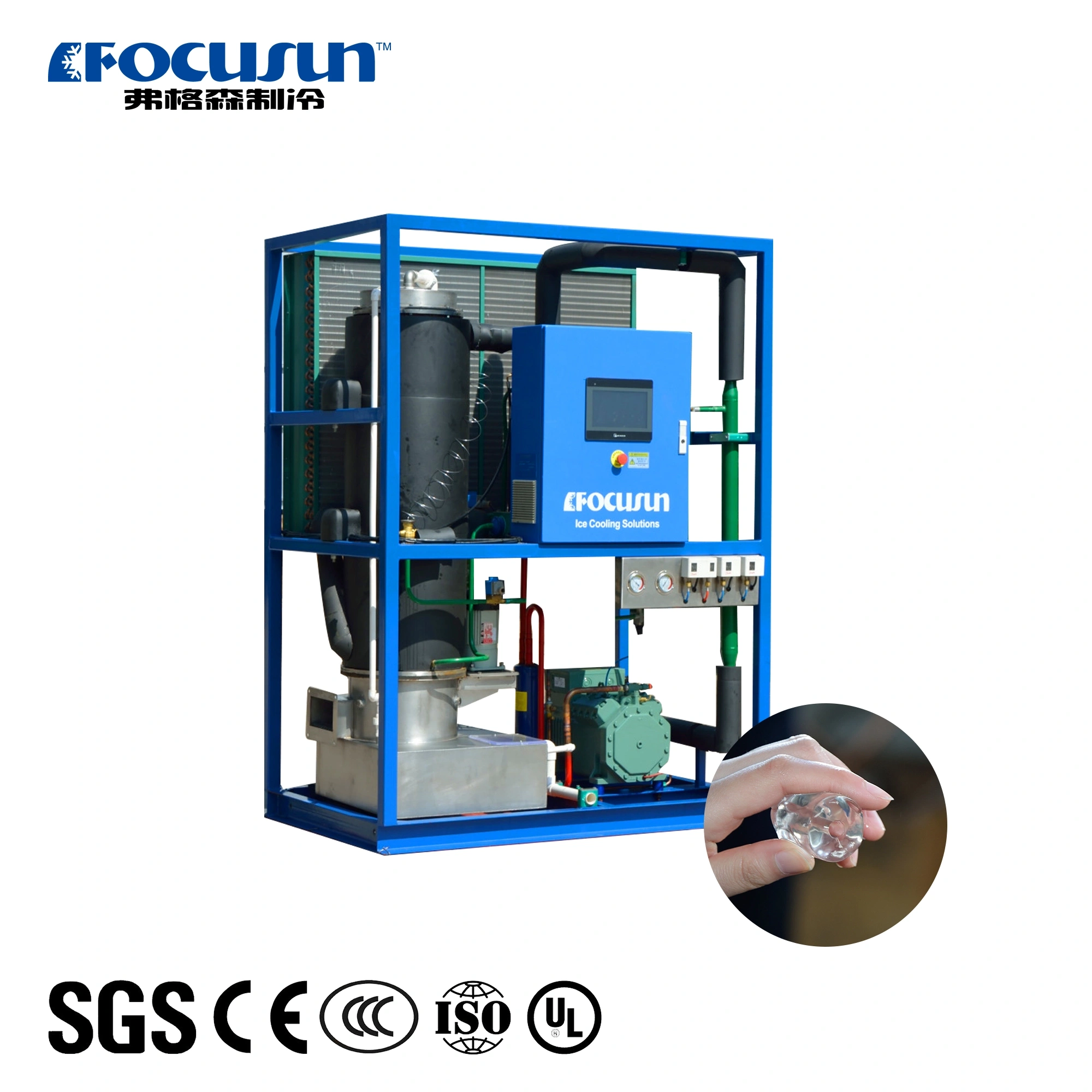

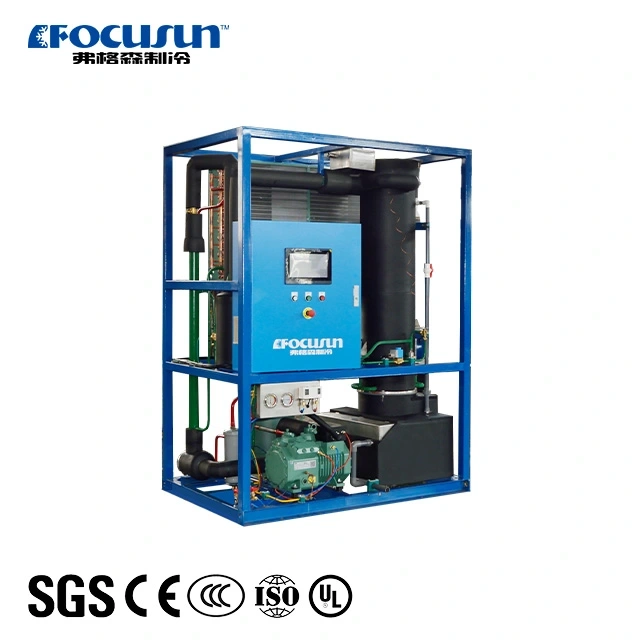

The tube ice machine produces hygienic, food-grade ice in the shape of hollow cylinders. Ideal for food and beverage industries, it ensures high-quality ice production with minimal contamination risk.
The tube ice machine is designed for rapid ice production, using advanced cooling technology to quickly freeze water into uniform, cylindrical ice tubes. Its high production capacity ensures that businesses can keep up with large ice demands without sacrificing quality or efficiency.
Perfect for high-volume applications, such as seafood markets or large-scale events, the tube ice machine produces clean, hygienic ice that is slow to melt. This helps maintain the freshness of stored items and ensures consistent performance throughout the day.
With easy installation and fully automated operation, the tube ice machine is simple to set up and run. It offers high-output ice production with minimal manual labor, making it a convenient and reliable solution for businesses requiring steady ice supply.
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 1000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Total running power | Kw | 4.74 |
| Installment power | Kw | 6 | |
| Operating power of cutter | Kw | 0.37 | |
| Operating power of cold water pump | Kw | 0.55 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 7.75 | |
| Operating power | Kw | 3.12 | |
| Compressor COP/EER | Kw/kw | 2.49 | |
| Horse power | Hp | 4 | |
| Condenser | Fan power | Kw | 0.7 |
| Cooling way | Air cooling | ||
| Dimension | Size of ice maker | (L×W×H)(mm) | 1400×800×1800 |
| Size of condenser | (L×W×H)(mm) | 1200×400×750 | |
| Size of water feeding pipe | 1/2" | ||
| Weight of unit | Operating weight of tube ice maker | Kg | 780 |
| Operating weight of condenser | Kg | 48 | |
| Water supply pressure requirement | Bar | 1 | |
