Plate ice machines are versatile and can be used in a wide range of industries. From cooling beverages and food in retail environments to large-scale industrial cooling, these machines produce flexible, high-quality ice sheets that are perfect for any application requiring efficient and reliable cooling.

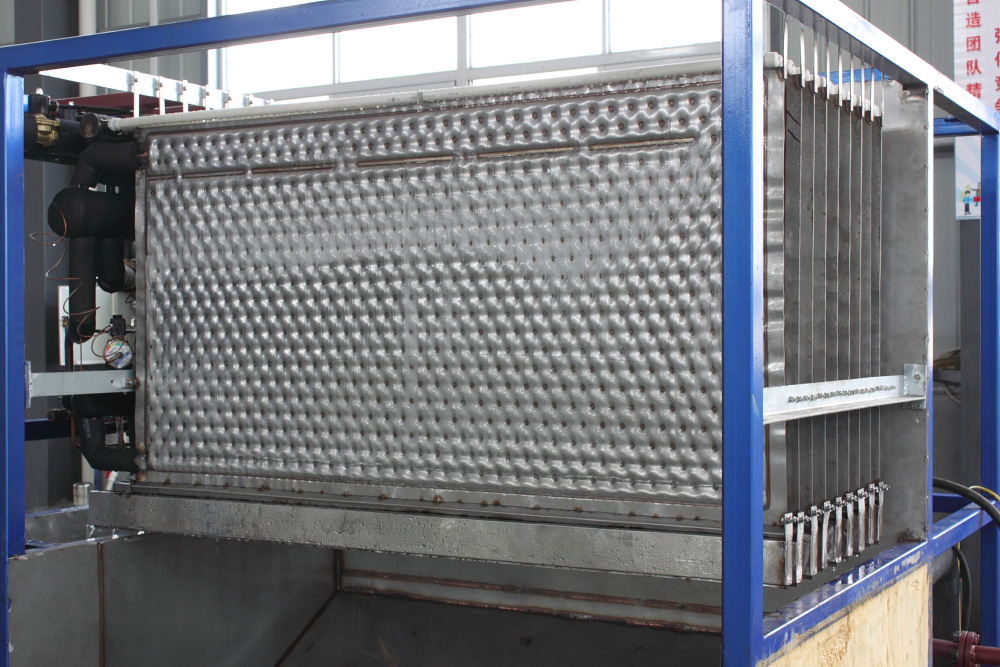

Plate ice machines are designed to meet the needs of businesses requiring fast ice production. By freezing water over large evaporator plates, these machines generate continuous sheets of ice that are quickly harvested and ready for use. The fast production cycle ensures that businesses can maintain a steady supply of ice, even during peak demand periods, such as during hot weather or in high-volume industrial settings.
These machines are built for durability and consistent performance. With their easy-to-use controls and automated features, plate ice machines require little operator intervention while producing high-quality, hygienic ice. Ideal for applications in the food industry, logistics, and other sectors, they offer an efficient and reliable solution for businesses that need ice on demand.
Key Advantages：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Capacity | Kg/day | 1000 | |
| Temperature | Ambient temperature | ℃ | 35 |
| Water inlet temperature | ℃ | 20 | |
| Operating power | Operating power of cutter | Kw | 0.55 |
| Operating power of cold water pump | Kw | 0.55 | |
| Warm water pump | Kw | 0.37 | |
| Total running power | Kw | 6.69 | |
| Installment power | Kw | 8 | |
| Compressor | Manufacturer | Bitzer | |
| Refrigeration capacity | Kw | 7.7 | |
| Operating power | Kw | 4.5 | |
| Compressor COP/EER | Kw/kw | 1.69 | |
| Horse power | Hp | 5 | |
| Condenser | Fan power | Kw | 0.7 |
| Cooling way | Air cooling | ||
| Installment | Externally installed | ||
| Dimension | Size of ice maker | L×W×H(mm) | 1700x1200x1700 |
| Size of condenser | L×W×H(mm) | -- | |
| Size of water feeding pipe | 1/2" | ||
| Operating weight | Operating weight of plate ice maker | Kg | 960 |
| Operating weight of condenser | Kg | -- | |
| Water supply pressure requirement | Bar | 1 | |
