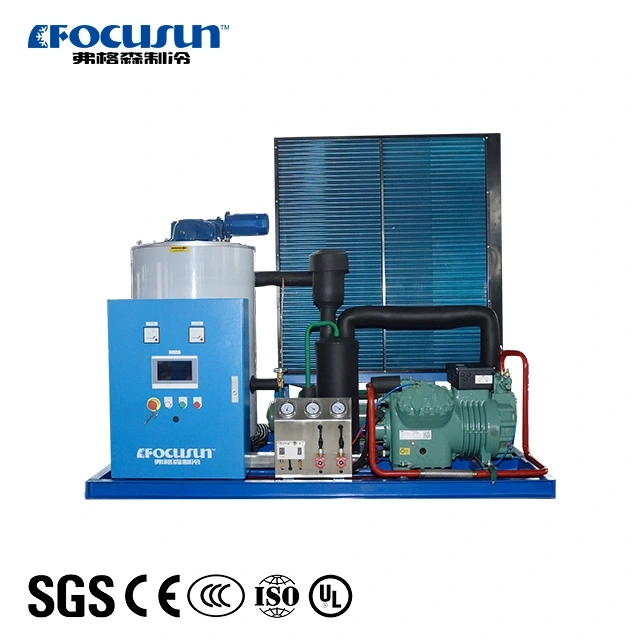

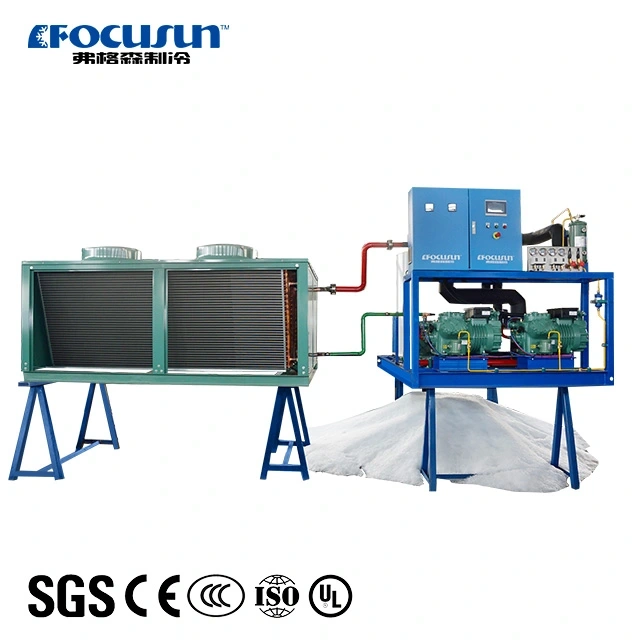

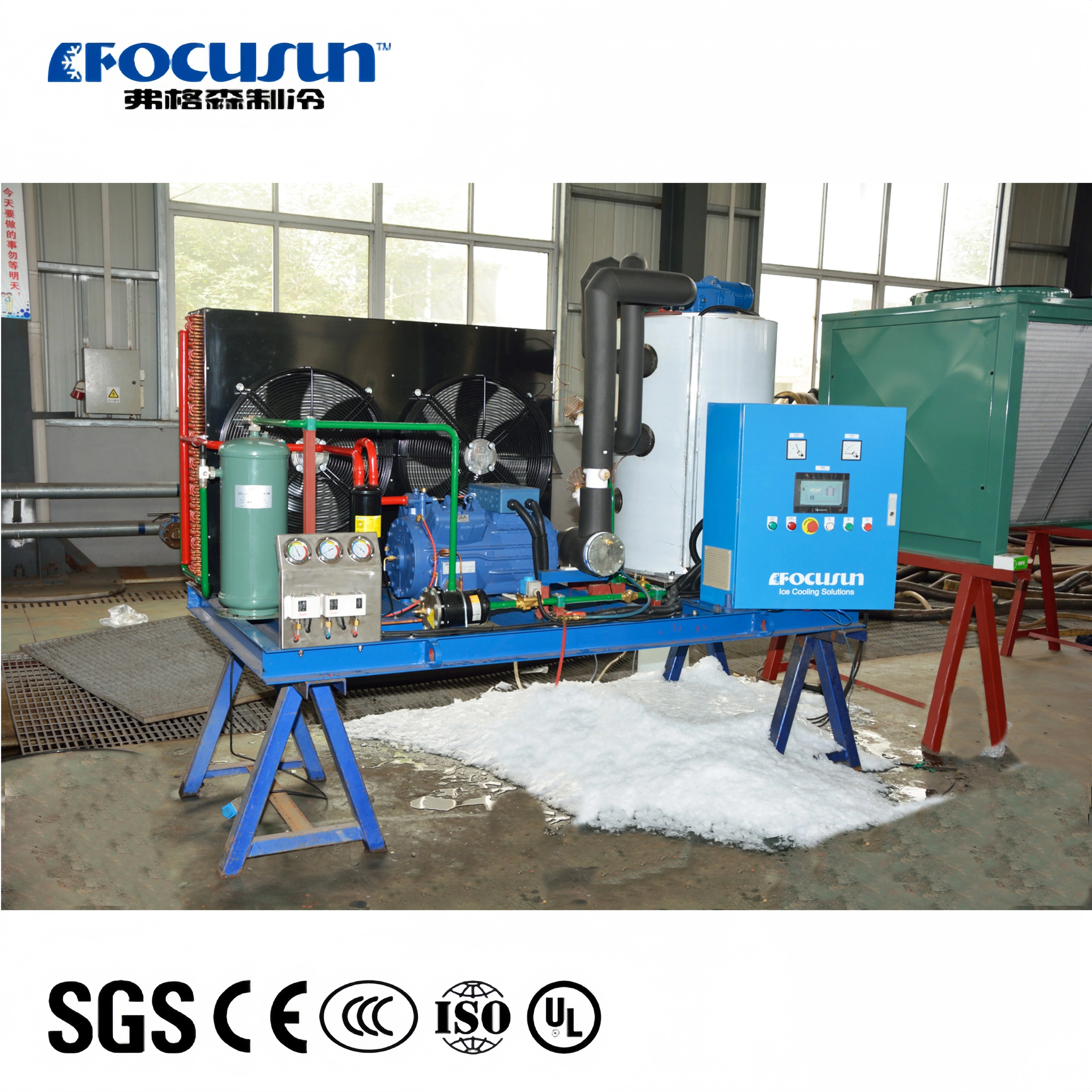

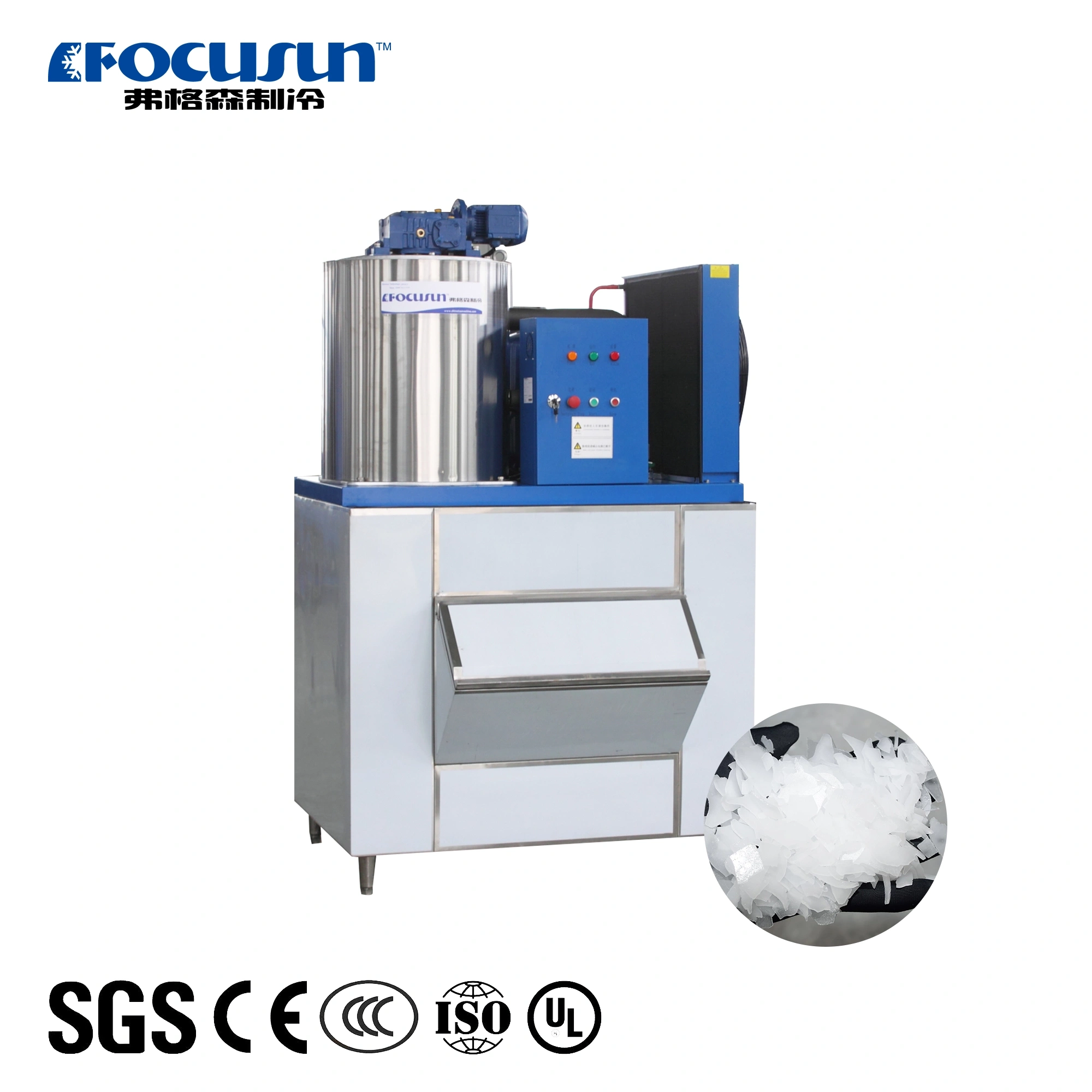

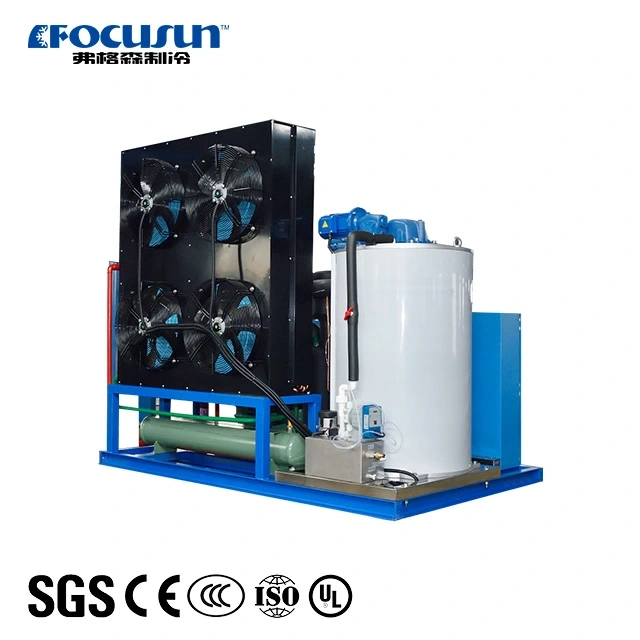

The Focusun Freshwater Flake Ice Machine offers a versatile cooling solution for industries ranging from food processing to chemical cooling. The machine produces dry, soft ice flakes that are highly effective for cooling products evenly and preventing spoilage. With its compact design and advanced technology, it’s an ideal option for businesses that require fast, reliable, and consistent ice.
Focusun’s Freshwater Flake Ice Machine is a compact yet powerful solution for high-volume ice production. Utilizing top-quality stainless steel and innovative technology, it creates thin, efficient ice flakes (1.5-2.5mm) that quickly cool and preserve products. Whether for seafood, food processing, or chemical cooling, the machine provides reliable performance with customizable production capacities (1-60 tons/day). Its fully automated system minimizes manual intervention, while energy-saving features keep operating costs low, making it a smart investment for a wide range of commercial and industrial applications.
Key Features：
| Subject | Unit | Technical parameter | |
| Power supply | Voltage/Phase/Frequency | 220V~480V/3P/50~60Hz | |
| Refrigerant | / | R22/R404A/R507A/R448A/R449A/R717 | |
| Temperature | Ambient Temperature | ℃ | 35 |
| Water Temperature | ℃ | 20 | |
| Operating Power | Total running power | Kw | 5.155 |
| Power of Reducer | Kw | 0.18 | |
| Power of Cold Water Pump | Kw | 0.12 | |
| Capacity/Stock | Capacity | kg/24h | 1000 |
| Capacity of Ice Bin | kg | 500 | |
| Compressor | Manufacturer | Copeland | |
| Refrigeration Power | kw | 5.57 | |
| Operating Power | kw | 3.61 | |
| Compressor COP/EER | kw/kw | 1.54 | |
| Horse Power | hp | 3 | |
| Condenser | Fan Power | kw | 0.45 |
| Cooling Way | Air Cooling | ||
| Dimension | Size of Ice Maker | L×W×H(mm) | 1200×740×780 |
| Size of Ice Bin | L×W×H(mm) | 1400×1000×1050 | |
| Size of Feeding Pipe | 4" | ||
| Weight | Weight of Flake Ice Maker | kg | 380 |
| Operating Weight of Ice Bin | kg | 560 | |
| Water supply pressure requirement | Bar | 1~6 | |
