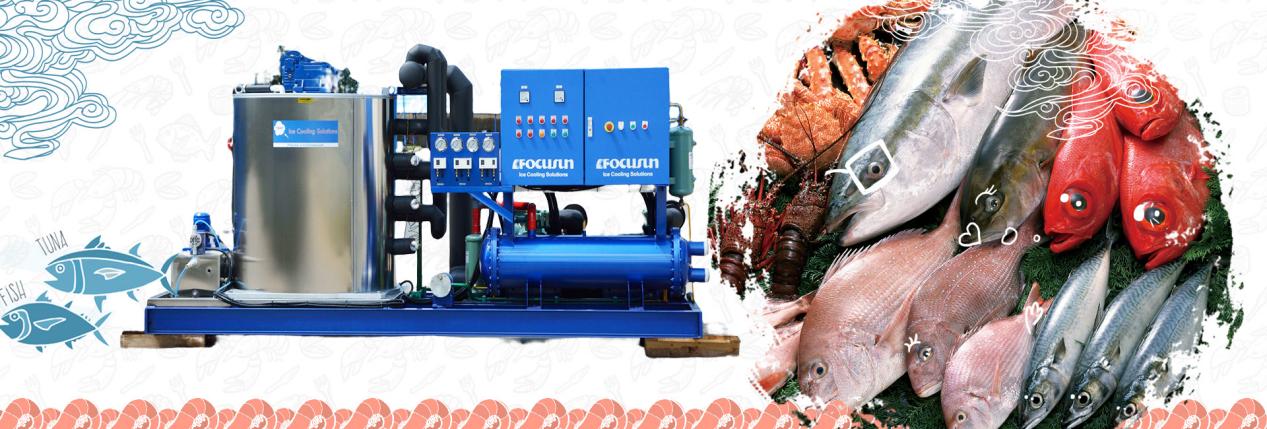

At 3 a.m. in the fishing port, freshly caught salmon is swiftly transported to the processing plant. At the press of a button, a machine instantly ejects flake ice as thin as scales, evenly coating the fish's surface. Within a mere 20 minutes, the fish's temperature plummets from 28°C to 0°C, reducing microbial growth by 90%. This ‘freshness-preserving marvel’ is none other than the flake ice generator.
In restaurant kitchens, flake ice makers are equally indispensable behind the scenes: hotpot restaurants use flake ice to sculpt crystalline displays for seafood platters; bakery workshops rely on it to regulate dough fermentation temperatures; even premium Japanese sashimi platters depend on flake ice to preserve their fresh, sweet flavour upon tasting. These flakes, measuring a mere 1.5 millimetres thick and reaching temperatures as low as -8°C, become the ‘guardians of freshness’ in the food industry thanks to their vast surface area.
Many wonder how such seemingly ordinary machinery consistently produces premium flake ice. The secret lies in a sophisticated automated cycle:
Water Film Formation: A pump evenly sprays purified water onto the surface of a cylindrical evaporator maintained at -10°C to -20°C, creating an ultra-thin water film.
Rapid Freezing: The water film encounters the sub-zero evaporator and solidifies into an ice layer within seconds.
Spiral Ice Shaving: Stainless steel blades rotate at a constant speed, shaving the ice layer into flakes;
Ice Collection: The dry, loose flake ice automatically falls into the storage bin, ready for immediate use.
This process produces flake ice that not only cools rapidly and resists clumping but also, crucially, lacks sharp edges. This allows it to gently envelop produce and seafood without damaging surfaces – an advantage traditional block ice simply cannot match.
3. Beyond Preservation: The flake ice maker's Five ‘Cross-Industry Roles’Beyond the food sector, flake ice generators have permeated every corner of industrial production, becoming true ‘multi-taskers’:
Construction's ‘Crack Prevention Specialist’: Incorporating flake ice during large-volume concrete pouring reduces mould temperature by 5-8°C, preventing cracks caused by hydration heat;
Chemical Plant Safety Guardian: Replacing liquid nitrogen for reactor cooling reduces costs while eliminating explosion risks;
Medical Temperature Steward: During organ transport, flake ice forms a buffer layer ensuring temperature fluctuations in liquid nitrogen containers remain within ±2°C;
Mining Cooling Solution: Cools drilling rigs and crushers while suppressing dust dispersion by covering ore piles;
The ‘Mobile Cold Storage’ for Cold Chain Logistics: Portable flake ice makers in fresh food e-commerce fulfilment centres guarantee four-hour delivery with uncompromised freshness.
(I) Three Steps to Selecting the Right flake ice maker, Avoiding 90% of Pitfalls
Calculate output accurately: Select capacity based on ‘daily ice consumption × 1.2’ (allowing for wastage). Seafood shops require 500kg/day models, while concrete plants need 10-tonne units.
Prioritise materials: Food industry must use 304 stainless steel liners; industrial settings may opt for corrosion-resistant coated models.
Prioritise Energy Efficiency: Opt for models with intelligent PLC control systems that automatically adjust ice production frequency, achieving 20% greater energy savings than traditional units.
(II) 3 Key Maintenance Points for 5 Years of Extended Service Life
Weekly: Clean the evaporator and water tank to prevent scale buildup from reducing ice efficiency.
Monthly: Inspect the sharpness of the ice scraper blades; replace promptly if dull.
Replace water filters quarterly to ensure pure, impurity-free flake ice.
5. Future Trends: flake ice making machine Are Becoming ‘Smarter’With technological advancements, flake ice machines have evolved beyond basic ice production:
Intelligence: Mobile apps enable remote monitoring of output and temperature, with AI automatically optimising energy consumption;
Modularity: Containerised models can be deployed directly on fishing vessels or mining sites without fixed installations;
Green Technology: Ammonia-carbon dioxide refrigeration systems reduce energy consumption by 30%, with residual heat recoverable for heating.
From fishing ports to construction sites, from kitchens to laboratories, flake ice makers safeguard product quality and operational safety with each delicate flake. Next time you savour succulent seafood or admire a flawlessly finished building, perhaps you'll recall this unassuming ‘cooling wizard’ working behind the scenes.
