The room is six metres by four metres—what compressor do I need?” is a common cold-room enquiry. It is also where poor quotations begin. Dimensions describe the box, not the heat the system must remove.
A room holding pre-chilled drinks differs from one receiving warm fish or vegetables. Cold room refrigeration load calculation starts with product and schedule, then adds heat through panels, doors, people, equipment, and defrost. This guide explains what matters before requesting a cold room quotation.
Refrigeration capacity, stated in kW, BTU/h, horsepower, or tons of refrigeration, describes heat removed under defined conditions. It is not the room’s volume or stored weight.
Estimate heat entering or generated during a day, then divide by planned compressor hours—not automatically 24. Check the condensing unit’s performance at the site ambient and required evaporating temperature. A rating at mild test conditions can mislead in a tropical installation.
Transmission load passes through walls, ceiling, floor, doors, and structural connections. It depends on area, temperature difference, insulation U-value, solar exposure, and adjacent spaces.
Product load is removed from incoming goods. Product type, daily mass, entry and target temperatures, and pull-down time matter. Freezing adds latent heat; fresh produce may generate respiration heat.
Infiltration load comes from warm, humid air entering through doors and leaks. Door size, frequency, duration, traffic, wind, curtains, and anterooms make it uncertain.
Internal load includes people, lights, evaporator fans, forklifts, motors, and other equipment. Defrost and miscellaneous loads cover electric heaters, drain heaters, and operational heat that eventually reaches the room.
|
Load component |
Information needed |
Frequent mistake |
Practical control |
|
Transmission |
Surfaces, U-values, ambient and room temperatures |
Using floor area alone |
Specify panel and floor construction
|
|
Product |
Daily mass, entry temperature, pull-down time |
Giving only maximum inventory |
Record peak daily incoming load
|
|
Infiltration |
Door size, openings, humidity and traffic |
Assuming the door stays closed |
Add curtains, fast doors, or an anteroom |
|
Internal/defrost |
Fans, lights, people, heaters, schedules |
Omitting equipment heat |
Use actual wattage and operating hours |
The structure is straightforward even when the final engineering is detailed:
Total daily heat = transmission + product + infiltration + internal + defrost and miscellaneous heat.
Required operating capacity = total daily heat ÷ available refrigeration operating hours.
If daily load is 240 kWh and the compressor runs 16 hours, base duty is 15 kW before design allowances. A blanket safety factor cannot replace missing data. Oversizing can cause short cycling and poor control; undersizing causes long runtime and slow recovery.

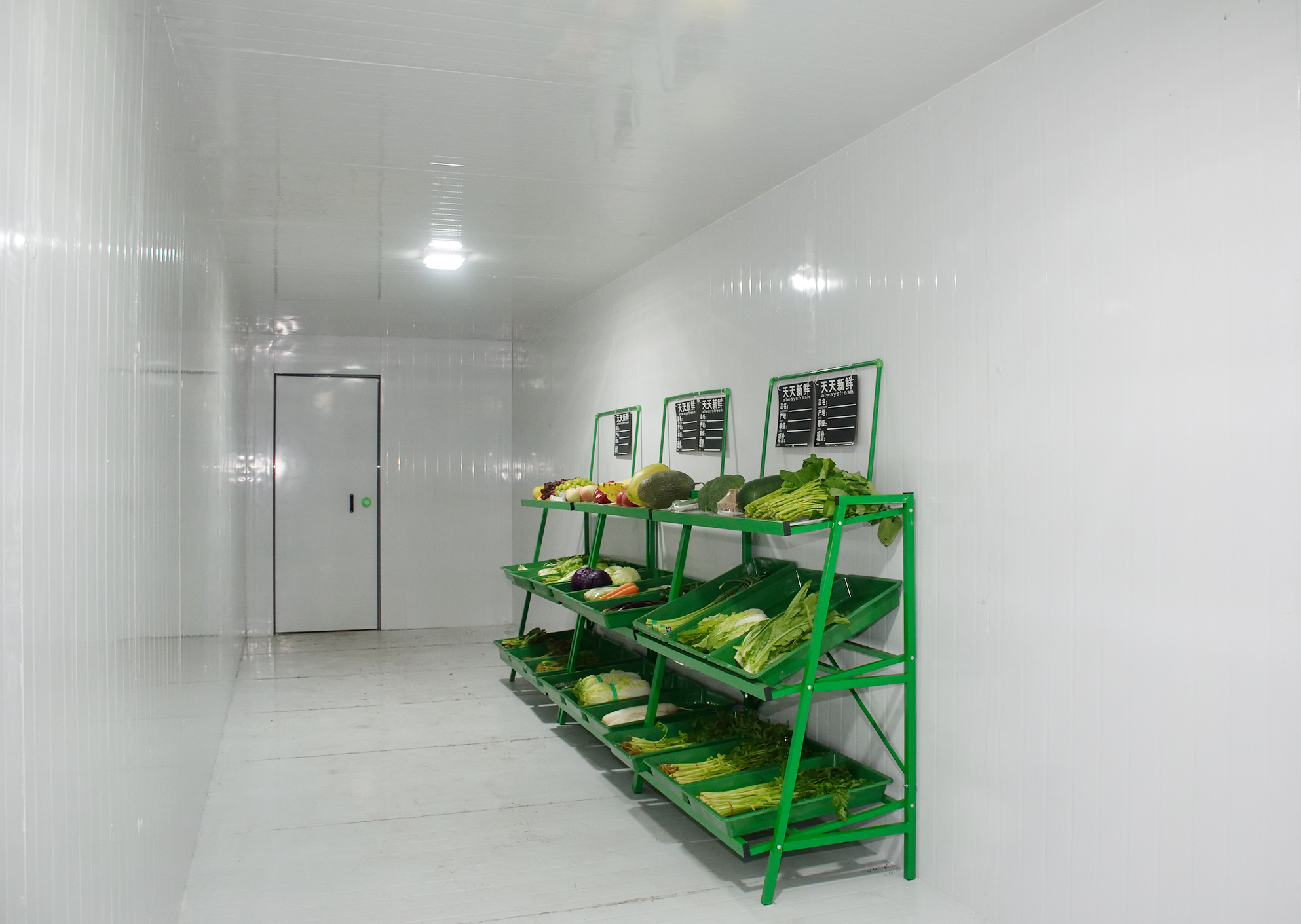

For a first estimate, dimensions and panels establish transmission load. Product calculation uses mass handled each day, not shelf capacity. Door and equipment schedules complete the picture. Focusun’s walk-in cooler guide adds selection context.
Consider two 100 m³ rooms. Room A stores packaged food arriving at 2°C and holds it at 2°C. Room B receives 5,000 kg of produce at 25°C and must cool it to 5°C overnight. Their transmission loads may be similar, but Room B has a large, time-sensitive product load.
If rapid freezing is required, do not force it onto an ordinary cold room. A blast freezer provides high airflow and concentrated pull-down. Focusun’s blast freezer and cold room comparison explains separate freezing and holding stages.
Door traffic is easily underestimated because a quotation form may ask only for door quantity. One wide forklift door open for several minutes can matter more than several brief personnel entries. In humid climates, infiltration adds both sensible heat and moisture, increasing frost on the evaporator and the need for defrost.
Record opening size, openings per hour, duration, traffic, and whether curtains, a rapid door, or anteroom will be used. Wind and sun at the dock also matter. Door management can reduce capacity and operating cost.
After calculating the load, match condensing unit and evaporator at required conditions. Check capacity at maximum ambient temperature. Confirm refrigerant, voltage, frequency, altitude, pipe length, and condenser heat rejection.
Evaporator selection affects air throw, humidity, frost, and dehydration. Leafy vegetables need different coil behavior from frozen cartons. Defrost must suit temperature and moisture load. Critical operations may need standby capacity, alarms, logging, or backup power.
The cooling-load method is the same, but project constraints change the solution. A permanent warehouse can use a central or distributed system. A containerized cold room may suit rapid deployment or movable capacity. A solar-powered cold room requires an hourly load profile because daytime production, nighttime holding, battery autonomy, and backup strategy affect the energy design.
Do not size solar panels or generators from compressor nameplate power alone. Include fans, defrost, controls, starting current, duty cycle, and seasonal conditions.
Prepare room dimensions, insulation, floor construction, location, ambient temperature and humidity, setpoint, product, daily incoming mass, entry temperature, pull-down time, packaging, door traffic, equipment schedules, power supply, and expansion plan.
Also explain whether the room is for holding, chilling, freezing, or mixed work. A good proposal should state the design load by component, selected capacity at real conditions, compressor running hours, evaporator arrangement, defrost method, refrigerant, controls, and assumptions. The Focusun cold storage and delivery guide helps map receiving through dispatch. Send the completed brief through the Focusun contact page for project-specific selection.
Add the heat entering through insulated surfaces, heat removed from incoming products, warm-air infiltration through doors, internal heat from people, lights and fans, plus defrost and other equipment loads. Convert the total daily heat into required capacity using the planned compressor operating hours. Then select equipment from manufacturer performance data at the actual room and outdoor design temperatures. Room volume alone is not enough. For a reliable estimate, provide product mass and entry temperature, pull-down time, insulation details, door traffic, ambient conditions, and operating schedule.
The required kW cannot be determined accurately from dimensions alone. A small room receiving warm product may need more capacity than a larger room holding pre-chilled stock. Calculate the total daily heat load, then divide it by the hours available for refrigeration operation. For example, 240 kWh of heat removed over 16 operating hours represents a 15 kW base duty before appropriate allowances. Final selection must use the condensing unit’s rated output at the intended evaporating temperature and maximum ambient condition, not simply its nominal horsepower.
A watts-per-cubic-metre rule can support a very early budget, but it is not a dependable equipment selection method. It ignores incoming product temperature, daily throughput, pull-down time, door openings, insulation quality, humidity, and internal equipment. These variables can make identical rooms require very different capacities. If a supplier quotes only from length, width, and height, ask what assumptions were used. At minimum, give the product, room temperature, peak daily incoming load, product entry temperature, ambient condition, panel specification, and door schedule before approving equipment.
Product entering above the room setpoint brings heat that the system must remove within a required time. The greater the mass and temperature difference, the larger the product load. Freezing requires additional latent heat removal, while fresh produce can continue releasing respiration heat during storage. Total inventory is less useful than peak incoming mass per day or per batch. If warm goods arrive all at once, the required capacity and airflow may be much higher than for staggered loading. Provide realistic peak-day data, not an annual average, when requesting a cold-room quotation.
There is no single percentage because infiltration depends on door area, opening frequency, duration, outside temperature and humidity, traffic, wind, and protective measures. A frequently open forklift door can become one of the largest loads in a humid warehouse. It also brings moisture that causes frost and increases defrost demand. Record openings per hour and average open time, then state whether the design includes strip curtains, a rapid-closing door, an air curtain, or an anteroom. Operational changes may be more economical than simply installing a larger compressor.
A modest, documented design allowance may be appropriate for calculation uncertainty, extreme weather, or planned growth, but arbitrary oversizing is not good protection. An oversized system can short-cycle, control humidity poorly, increase purchase cost, and operate inefficiently. An undersized system may run continuously and fail to recover after loading. Improve the input data first, calculate each load component, and state the operating assumptions. If expansion is likely, consider staged compressors or multiple units so capacity can follow the load more effectively than one very large fixed-capacity system.
Storage capacity describes how much product the room can hold, usually in pallets, tonnes, or cubic metres. Refrigeration capacity describes how quickly the system can remove heat, usually in kW, BTU/h, or tons of refrigeration. A room may hold 50 tonnes but receive only two tonnes of already chilled product daily; another may hold less yet cool a large warm batch each shift. Racking, aisle space, and airflow determine usable storage, while insulation, product throughput, doors, and equipment determine cooling duty. Both calculations are needed for a workable design.
Choose based on the process. A cold room is primarily designed to maintain stored product at a target temperature and handle a limited incoming load. A blast freezer uses high airflow and greater refrigeration intensity to cool or freeze product rapidly and uniformly. Installing a larger compressor on a storage room does not automatically provide the air velocity or product spacing needed for fast freezing. If the business receives warm meat, seafood, or prepared food that must reach a specified core temperature quickly, calculate a separate batch freezing duty and consider a blast freezer before frozen storage.
High ambient temperature increases heat transmission through panels and reduces the available capacity of many air-cooled condensing units. High humidity also raises the latent infiltration load and can create more frost during door traffic. Use the site’s realistic summer design temperature, solar exposure, and installation ventilation. Check the selected unit’s performance table at that condition; nominal capacity at a mild standard temperature may be inadequate. Outdoor condensers may need corrosion protection, sun management, and sufficient clearance, while hot machine rooms require a heat-removal plan of their own.
Send room dimensions, target temperature, product and packaging, maximum stored quantity, peak daily incoming mass, product entry temperature, required pull-down time, insulation and floor details, door size and opening schedule, ambient temperature and humidity, indoor or outdoor location, staff and equipment heat, voltage and frequency, and backup requirements. State whether the room will hold, chill, freeze, or combine these jobs. Photos or a site layout help identify access, condenser location, drainage, and pipe routes. Complete data lets suppliers compare the same duty instead of offering incompatible prices.
